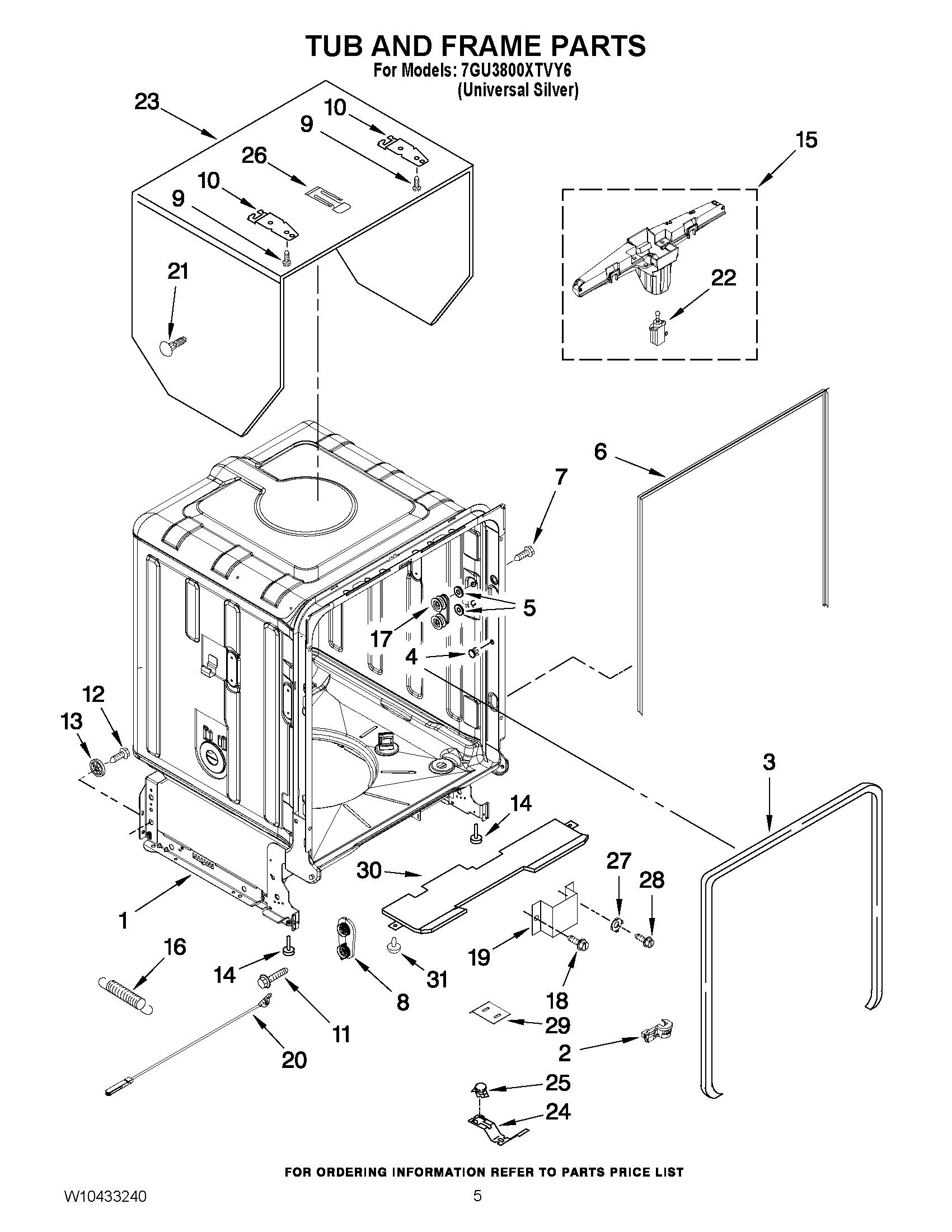

7GU3800XTVY6 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP9743002 Whirlpool Dishwasher Gasket
6	SEAL
7	WPW10309090 Whirlpool Dishwasher Screw
8	WPW10084086 Whirlpool Dishwasher Mount
9	WP308685 Whirlpool Microwave Screw
10	WP8269145 Whirlpool Dishwasher Mounting Bracket
11	WP3400074 Whirlpool Dishwasher Screw
12	WPW10348411 Whirlpool Roller Wheel Screw
13	WP8268977 Whirlpool Dishwasher Wheel
14	8193716 Whirlpool Leveling Leg
15	WP8572661 Whirlpool Dishwasher Actuator
16	SPRING
17	WP8270019 Whirlpool Dishwasher Dishrack Wheel
18	WP3400892 Whirlpool Dishwasher Screw
19	WP8268991 Whirlpool Dishwasher Cover Assembly
20	8194001 Whirlpool Dishwasher Door Balance Link Kit
21	WP304666 Whirlpool Dishwasher Retainer
22	Motor, Wax
23	W10877094 Whirlpool Shield
24	BRACKET, THERMOSTAT
25	WP661566 Whirlpool High Limit Thermostat
26	STRIKE, LATCH
27	WP3378128 Whirlpool Dishwasher Washer
28	WP3400014 Whirlpool Dishwasher Screw
29	W10321574 Whirlpool Dishwasher Shield
30	WPW10746770 Whirlpool Insulation Pad
31	WP3400924 Whirlpool Dishwasher Retainer
