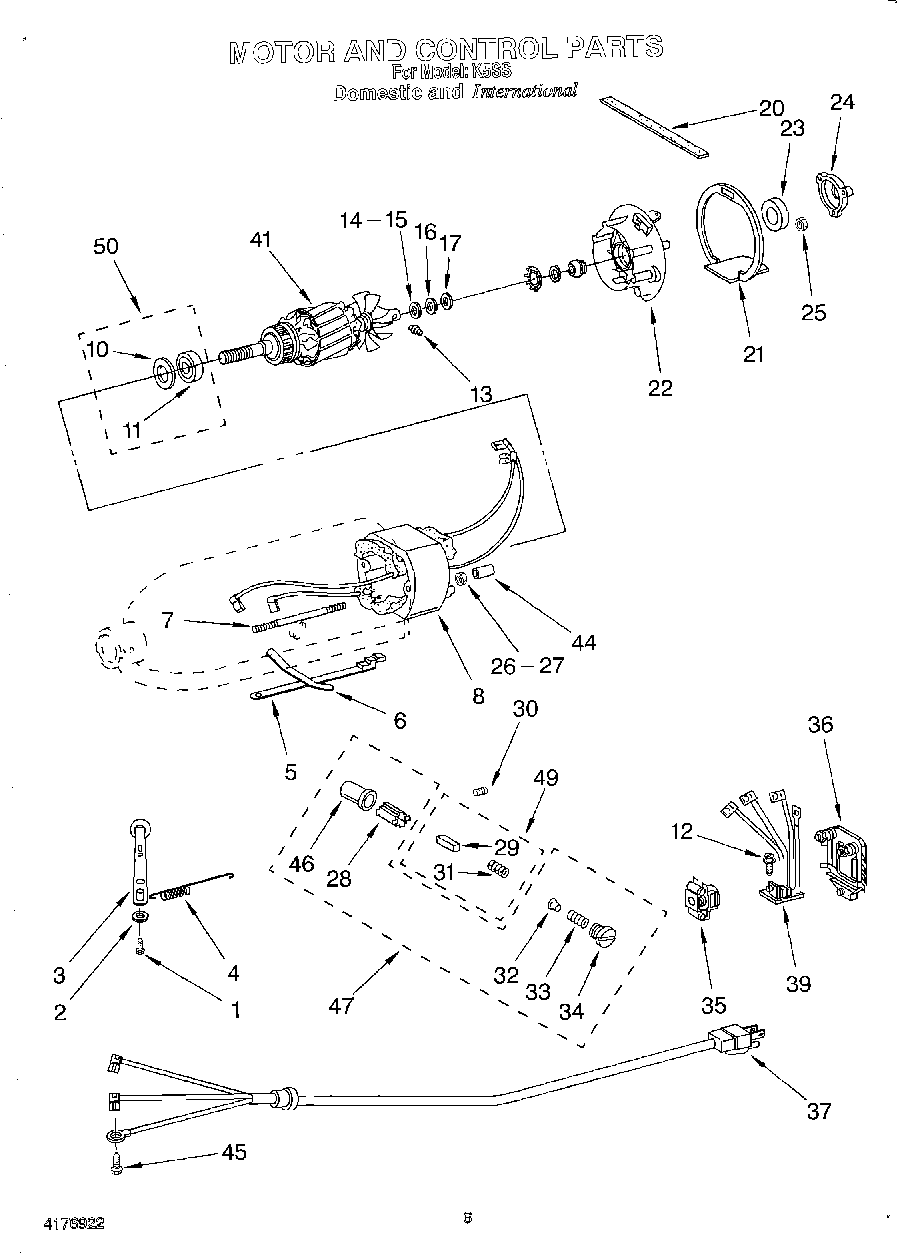

7K5SS 05 – MOTOR AND CONTROLadmin2025-04-26T11:40:46+00:007K5SS 05 – MOTOR AND CONTROL
Products
| Position | Product |
|---|
| 67500-55 ``O`` Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A) |
| Food Tray (FT) |
| Speed Disc (Service Tool) |
| JUICER (JE) |
| FOOD GRINDER (FG-A) |
| W11312468 Whirlpool Pour Shelf |
| WPL 3177925 |
| WPW10714130 Whirlpool Mixer Bowl |
| WPL 3180616 |
| 4162154 Whirlpool Water Jacket |
| W11200218 Whirlpool Grease Filter |
| PASTA MAKER PLATES (SNPA) |
| FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP) |
| FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A) |
| PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA) |
| ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A) |
| Grain Mill (GM-A) |
| CAN OPENER (CO) |
| SAUSAGE STUFFER KIT (SSA) |
| 1 | Screw, Pivot |
| 2 | Washer, Spring |
| 3 | WP9709276 Whirlpool Speed Control Lever |
| 3 | WP9709277 Whirlpool Speed Lever |
| 4 | WP3183680 Whirlpool Spring |
| 5 | Speed Link & Cam |
| 6 | WP240205 Whirlpool Spring |
| 7 | W10851015 Whirlpool Stat Screw |
| 8 | 100 Volt (Japan Only) |
| 8 | WPW10417246 Whirlpool Field Assembly |
| 8 | W10870869 Whirlpool Field Assembly |
| 10 | WP9704324 Whirlpool Washer |
| 11 | W11133634 Whirlpool Armature |
| 12 | W11084238 Whirlpool Screw Assembly |
| 13 | WP16998 Whirlpool Drive Stud |
| 16 | W11233557 Whirlpool Washer |
| 20 | WP9701501 Whirlpool Seal |
| 21 | WP240775-1 Whirlpool Endcap Seal |
| 22 | WP3180526 Whirlpool Bearing Bracket |
| 23 | WASHER |
| 26 | Nut, Hex Machine (10-24) |
| 27 | Lock Washer No.10 Ext. Shake- proof |
| 28 | W11656718 Whirlpool Insert |
| 29 | WPW10380496 Whirlpool Stand Mixer Motor Brush |
| 30 | W11176201 Whirlpool Screw |
| 32 | WP116286 Whirlpool Spring Cap |
| 33 | WP116287 Whirlpool Spring Cap |
| 34 | WP3184211 Whirlpool Brush Cap |
| 34 | WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black |
| 35 | WPW10330804 Whirlpool Speed Governor |
| 36 | WPW10119326 Whirlpool Speed Control |
| 37 | W11105837 Whirlpool Power Cord |
| 37 | W11396625 Whirlpool Power Cord |
| 37 | W10706734 Whirlpool Power Cord |
| 37 | Cord & Plug 110 Volt (Cord & Plug (220 Volts)) |
| 37 | W11545825 Whirlpool Power Cord |
| 39 | W11174552 Whirlpool Stand Mixer Phase Board |
| 39 | WPW10325124 Whirlpool Phase Board |
| 41 | W11105834 Whirlpool Armature |
| 41 | W10900799 Whirlpool Armature |
| 44 | W11210996 Whirlpool Sleeve |
| 45 | Screw |
| 46 | WP3179908 Whirlpool Brush Holder |
| 47 | 4162546 Whirlpool Brush Holder |
| 50 | WPL 4176025 |
