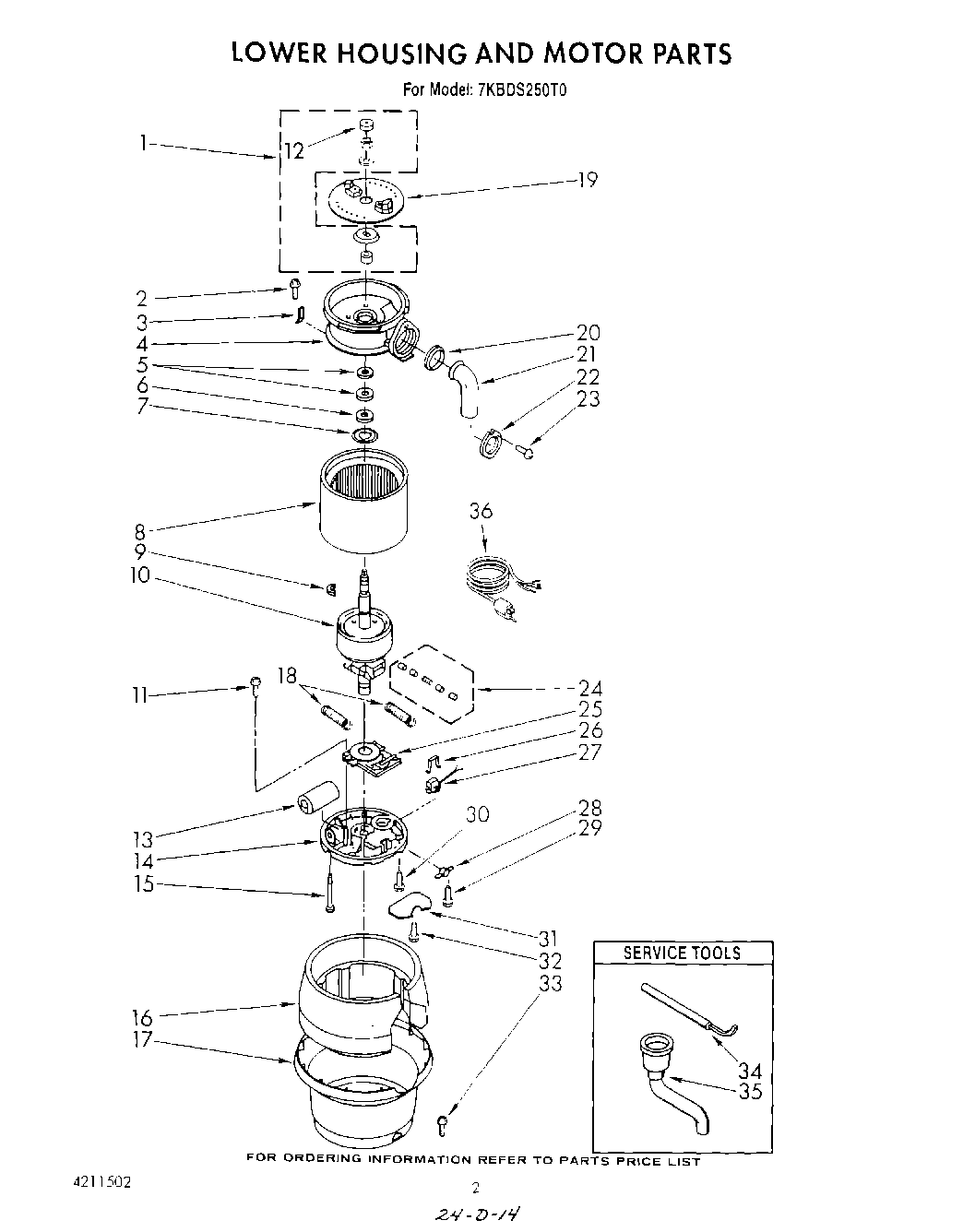

7KBDS250T0 02 – SECTION

Products

Position	Product
1	4211578 Whirlpool Disposer Sleeve
2	WP7101P246-60 Whirlpool Screw
3	Shield, Wire Cover
4	End Bell Assembly (Upper)
5	Washer, Phenolic (2)
6	Washer, Rubber
7	Washer, Thrust
8	Stator Assembly
9	Ring, C
10	Rotor And Shaft Assembly
13	Capacitor
14	End Frame Assembly (Lower)
15	Bolt, Thru (4)
16	Insulation, Bottom
17	Shell Assembly,
18	Spring (2) (Centrifugal Actuator)
19	Shredder Assembly, Rotating
20	Gasket, Tailpipe
21	Tailpipe
22	Flange, Tailpipe
23	WP8204624 Whirlpool Bolt
24	Transfer Assembly
25	Switch Assembly, Start
26	Clip, Overload
27	Overload, Protector
28	Clamp, BX
29	Screw, Clamp (2)
30	Screw, Ground
31	Cover, Terminal
32	Screw
33	Screw, Tapping
34	WP8174310 Whirlpool Disposer Wrench
35	4211396 Whirlpool Disposer Adapter
36	PLUG & CORD (GC1000PE4 ONLY)
