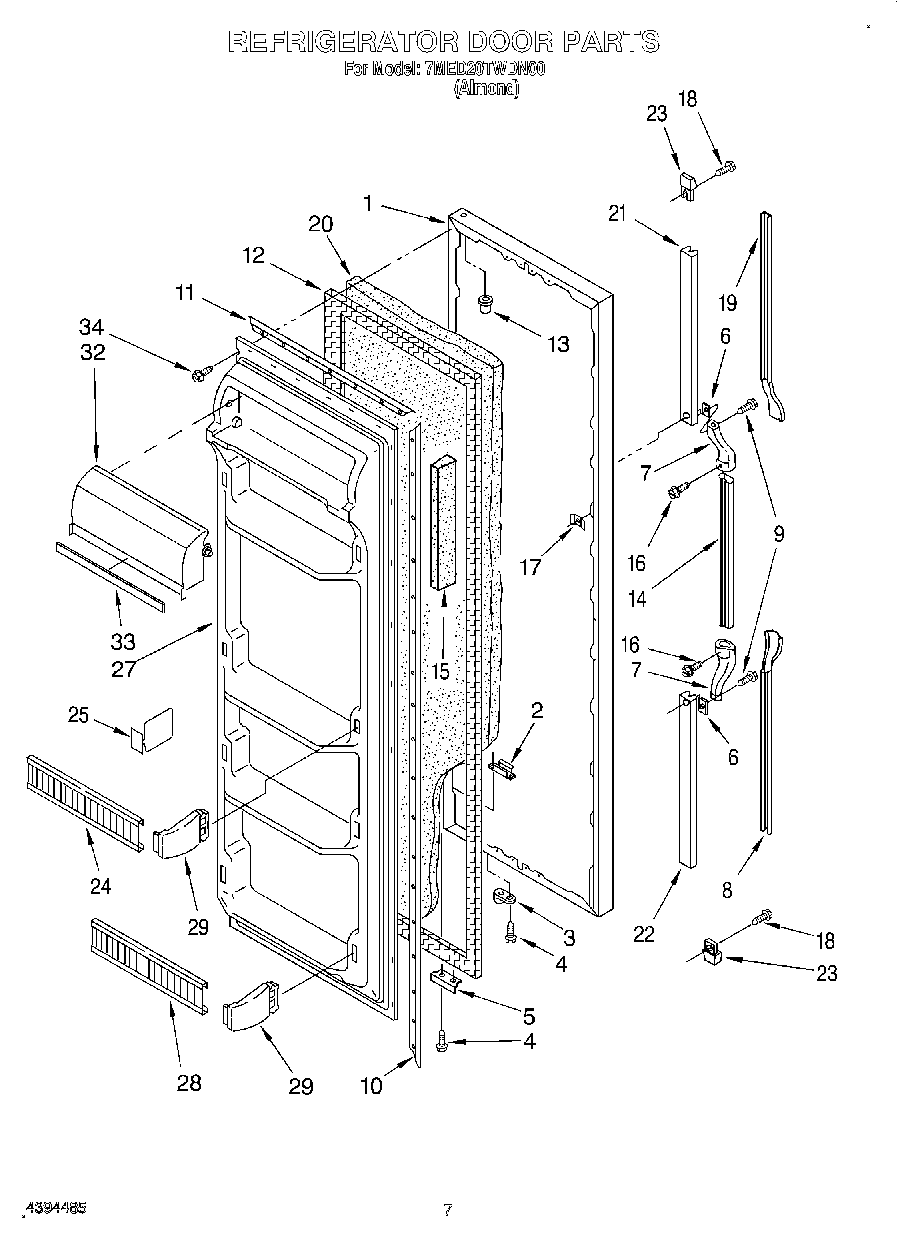

7MED20TWDN00 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 20)
2	Tap, Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP999367 Whirlpool Refrigerator Screw
5	Bracket, Door Stop
6	Shim
7	End Cap, Center Handle
8	Insert, Handle (Almond)
10	Retainer, Gasket
11	Gasket Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle, Center (Almond)
15	Reinforcement, Shelf
16	Screw
17	Screw Anchor (2)
18	Screw
19	Insert, Handle (Almond)
20	WPL 876029
21	Retainer, Insert
22	Retainer, Insert (Bottom)
23	End Cap (2)
24	Shelf Bin (2)
25	Divider-Door
27	Panel, Interior Door
28	Shelf Bin (2)
29	WP2196189 Whirlpool Shelf Retainer Bar
29	WP2196190 Whirlpool Shelf Retainer Bar Support
32	Door, Compartment
33	Trim, Compartment Door
34	WP489069 Whirlpool Compactor Screw
