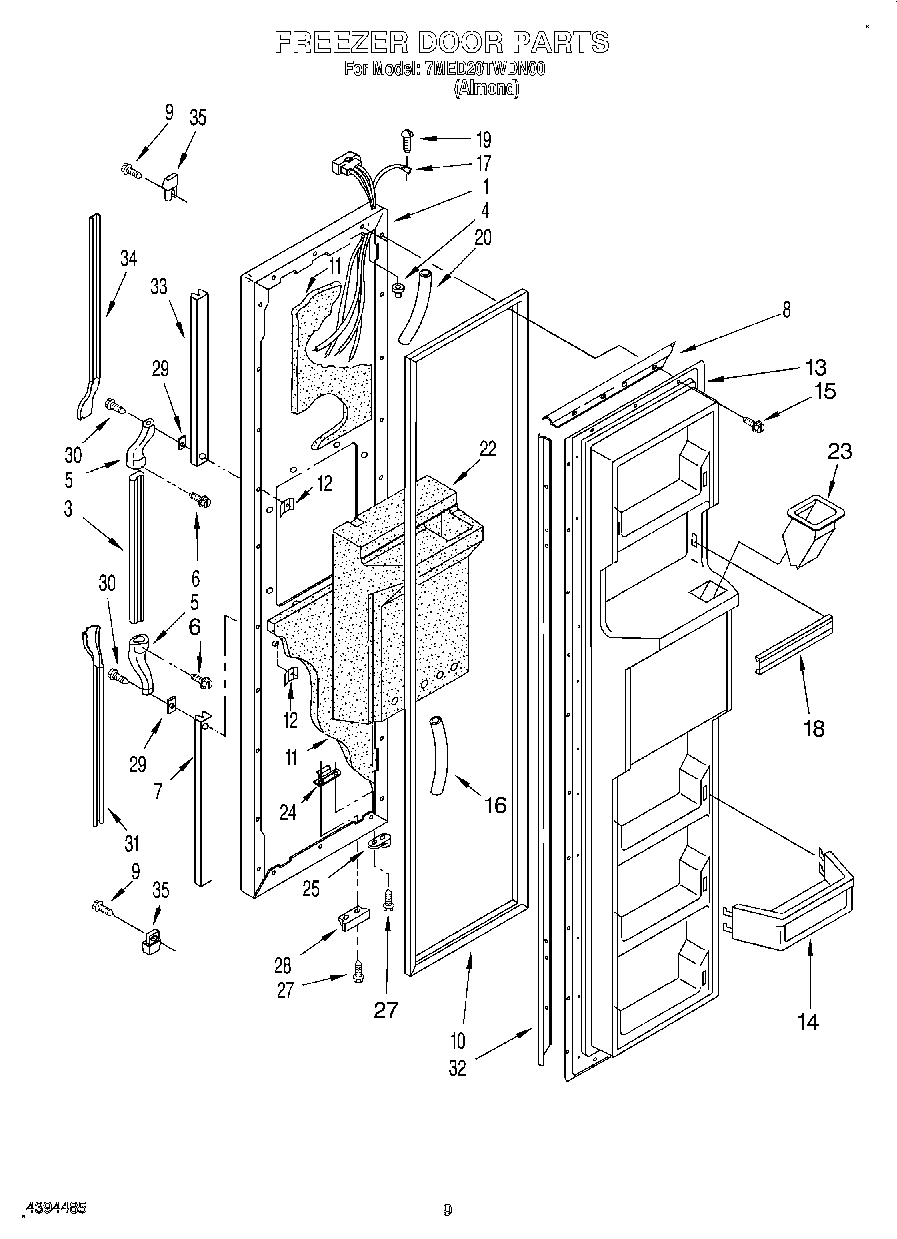

7MED20TWDN00 06 – FREEZER DOOR

7MED20TWDN00 06 – FREEZER DOOR

Written by

in

7MED20TWDN00 06 – FREEZER DOOR

Products

PositionProduct
1freezer, door panel (almond (also order item 11))
3Handle, Center (Almond)
4Seal, Hinge Pin
5End Cap, Center Handle
6Screw
7Retainer, Insert (Bottom)
8Retainer, Gasket
9Screw
102188405A Whirlpool Refrigerator Door Gasket
11WPL 876029
12WP939101 Whirlpool Refrigerator Plate
13Panel, Interior Door
14Trim, Door Shelf (4)
15WP489069 Whirlpool Compactor Screw
16Tube, Door Wiring
17Harness, Door
18Trim, Door Shelf
19WP488234 Whirlpool Air Conditioner Screw
20Tube, Door Wiring
22Insulation, Dispenser
23Chute, Ice
24Tap, Plate
254318165 Whirlpool Refrigerator Door Closure Cam Kit
27WP999367 Whirlpool Refrigerator Screw
28Bracket, Door Stop
29Shim
31Insert, Handle (Almond)
32Retainer, Gasket
33Retainer, Insert
34Insert, Handle (Almond)
35End Cap (2)
