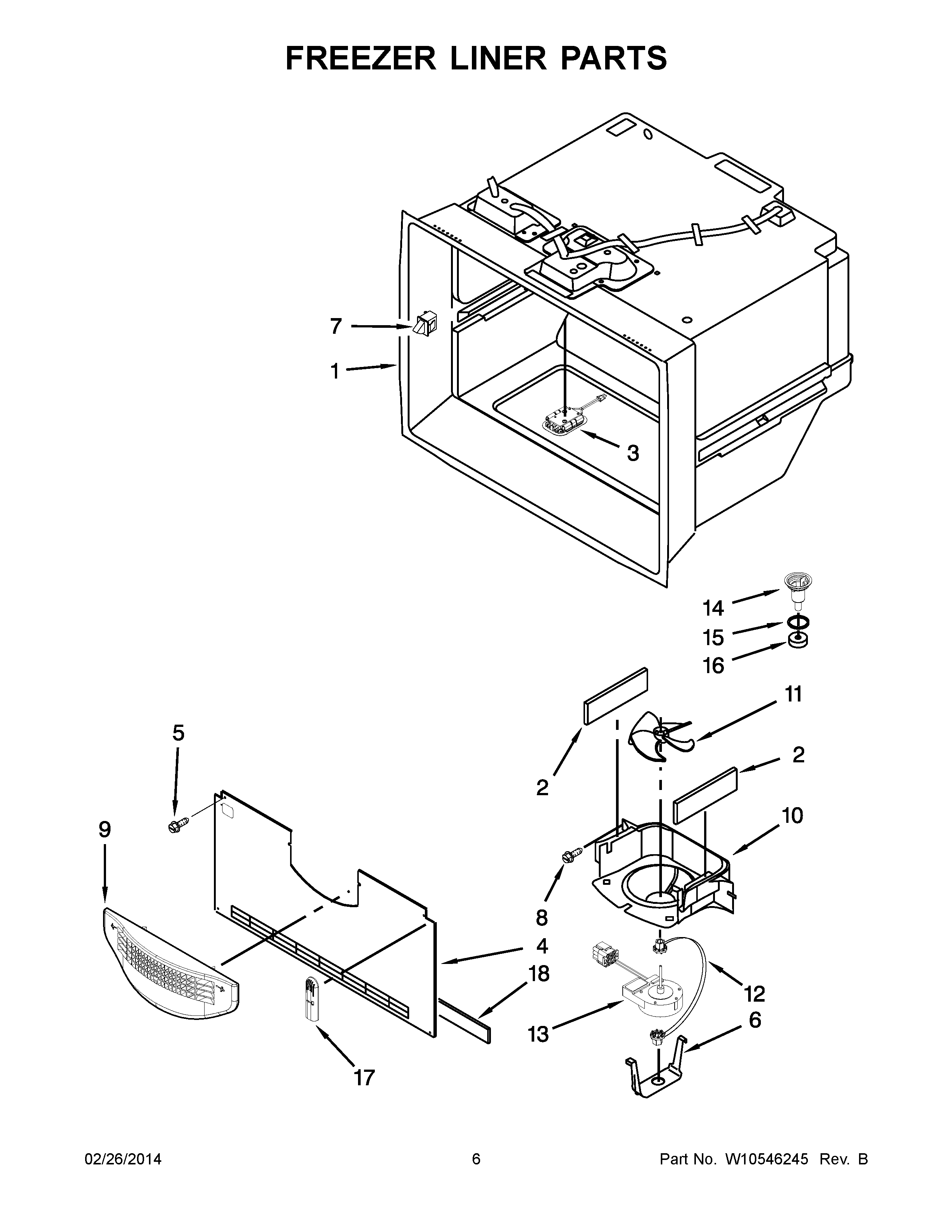

7MF2976AEM00 04 – FREEZER LINER PARTS

7MF2976AEM00 04 – FREEZER LINER PARTS

Written by

in

7MF2976AEM00 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY W10637153
4MAY W10513424
5SCREW (10)
6MAY 12956601
7SWITCH, LIGHT (2)
8MAY 12990504
9GRILLE, AIR (FREEZER)
10SHROUD, EVAPORATOR FAN
11Blade, Fan (Evaporator)
12Grommet, Fan Motor (2)
13MAY W10514110
14ASSEMBLY, DRAIN FUNNEL
15MAY M0500703
16Gasket
17MAY W10405166
18MAY W10531268
