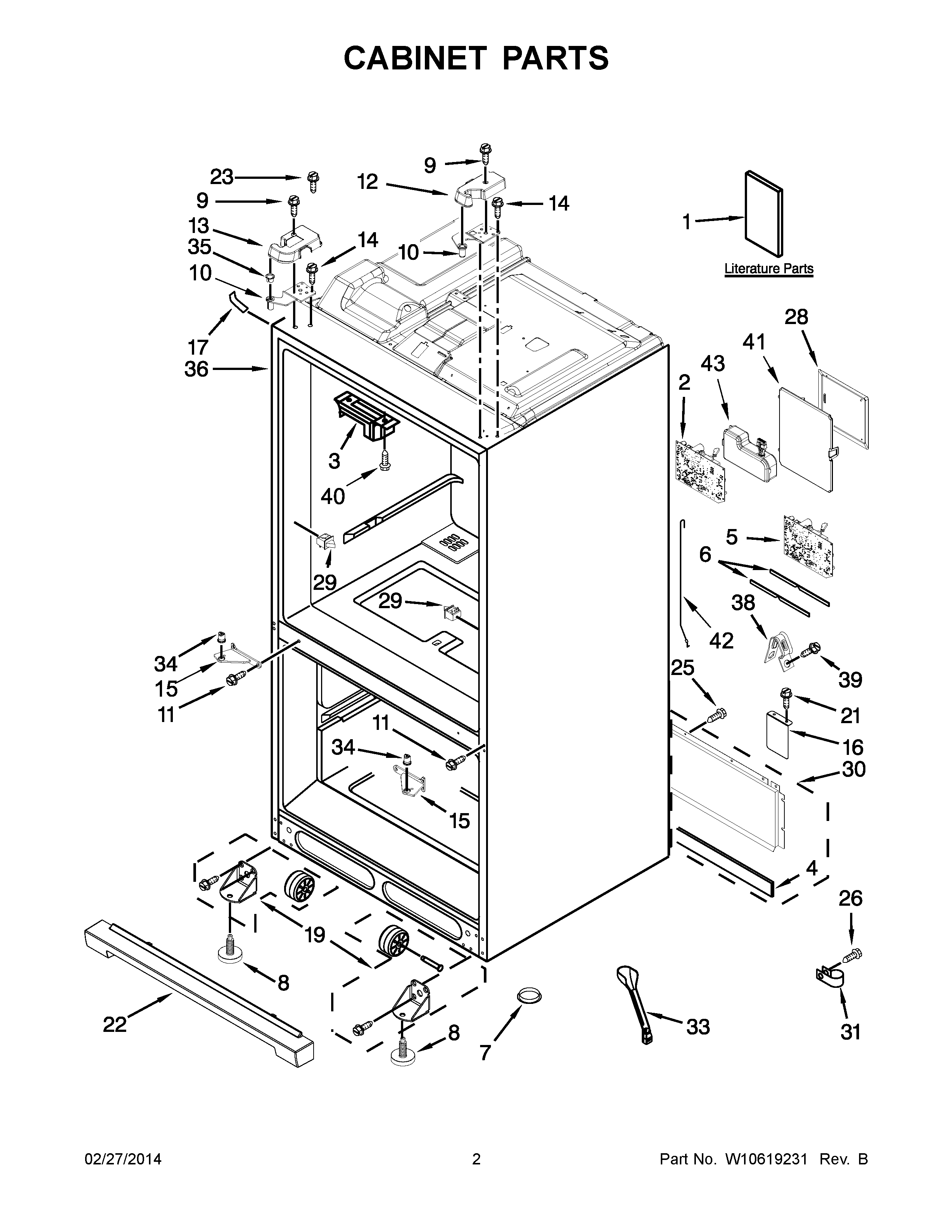

7MF2976AEM01 02 – CABINET PARTS

Products

Position	Product
1	MAY W10666413
1	MAY W10568021
2	SUPPLY, POWER
3	MAY W10344432
4	MAY W10505487
5	MAY W10603638
6	GASKET, HV BOX
7	A3076901 Whirlpool Refrigerator Plug
8	Brake, Foot
9	MAY 12992602
10	HINGE, TOP (LEFT HAND)
10	HINGE, TOP (RIGHT HAND)
11	SCREW
12	MAY W10407158
13	MAY W10471618
14	SCREW (BLACK)
15	HINGE, CENTER (LEFT) (GREY)
15	HINGE, CENTER (RIGHT) (GREY)
16	MAY W10336736
17	COVER, CORNER (GREY)
19	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
21	MAY 12990701
22	MAY W10637671
23	SCREW
26	SCREW (10)
28	MAY W10485658
29	MAY 12466105
30	MAY W10577369
31	CLAMP, TUBE
33	MAY W10503562
34	MAY W10505294
35	MAY W10212137
36	LINER (NOT A SERVICEABLE PART)
38	MAY 489348
39	MAY W10141645
40	Screw (4)
41	MAY W10277839
42	MAY W10558243
43	SUPPLY, LED POWER
