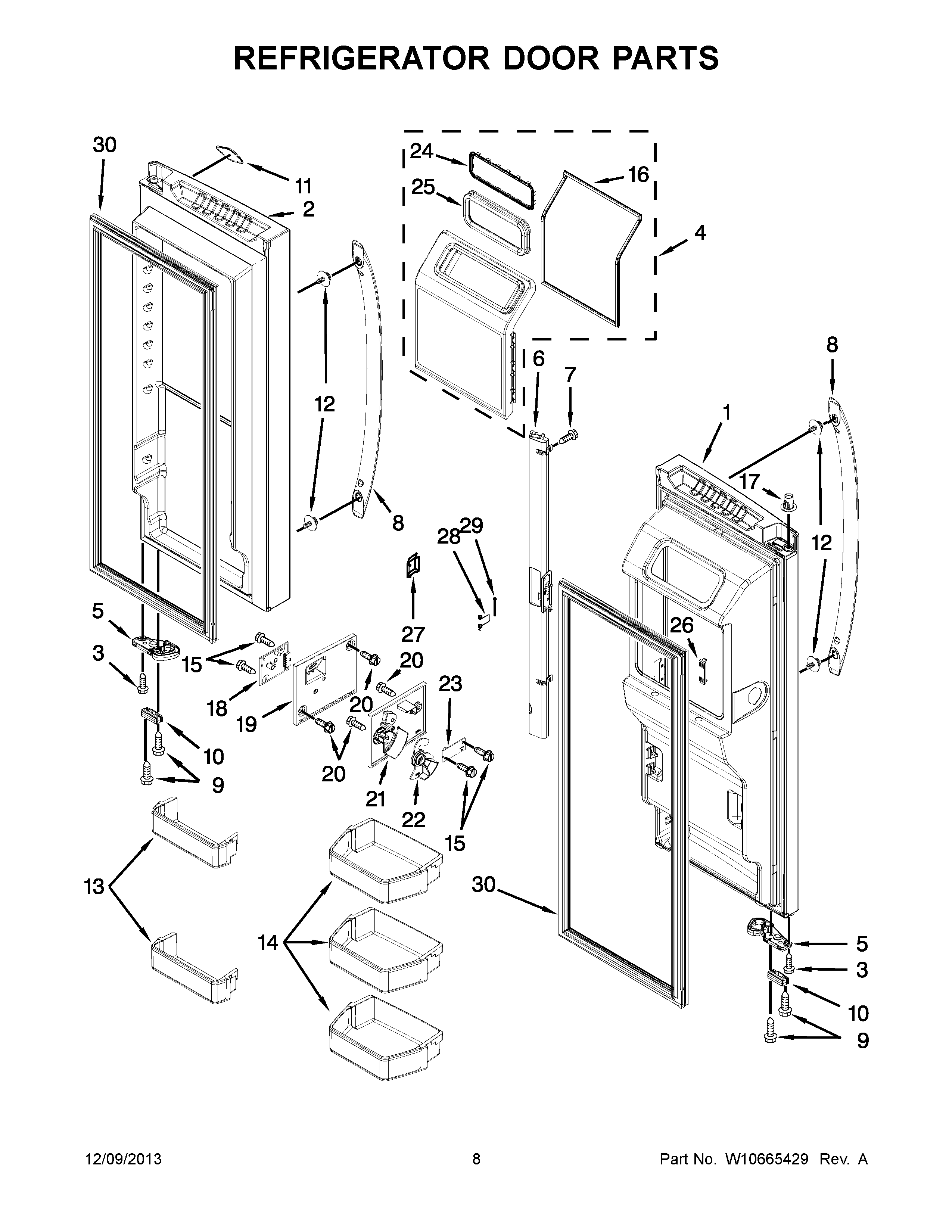

7MF2976AEM02 05 – REFRIGERATOR DOOR PARTS

7MF2976AEM02 05 – REFRIGERATOR DOOR PARTS

Written by

in

7MF2976AEM02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (STAINLESS)
2	DOOR, RIGHT (STAINLESS)
3	MAY W10464016
4	MAY W10549591
5	MAY W10372267
5	MAY W10355634
6	MAY W10654762
7	MAY 12990204
8	MAY W10439227
9	MAY 12990504
10	MAY W10407188
11	Nameplate
12	MAY W10460893
13	TRIVET, 2 LITER
14	BUCKET, GALLON
15	Screw (2)
16	MAY W10347085
17	CLIP, TUBE
18	MAY W10518658
19	MAY W10258510
20	SCREW (STAINLESS)
21	MAY W10258502
22	MAY W10258540
23	MAY W10518659
24	RETAINER, ICE CHUTE
25	MAY W10347087
26	MAY W10646855
27	DOOR, EMITTER
28	SPRING, DOOR
29	PIN, DOOR
30	MAY W10407146
