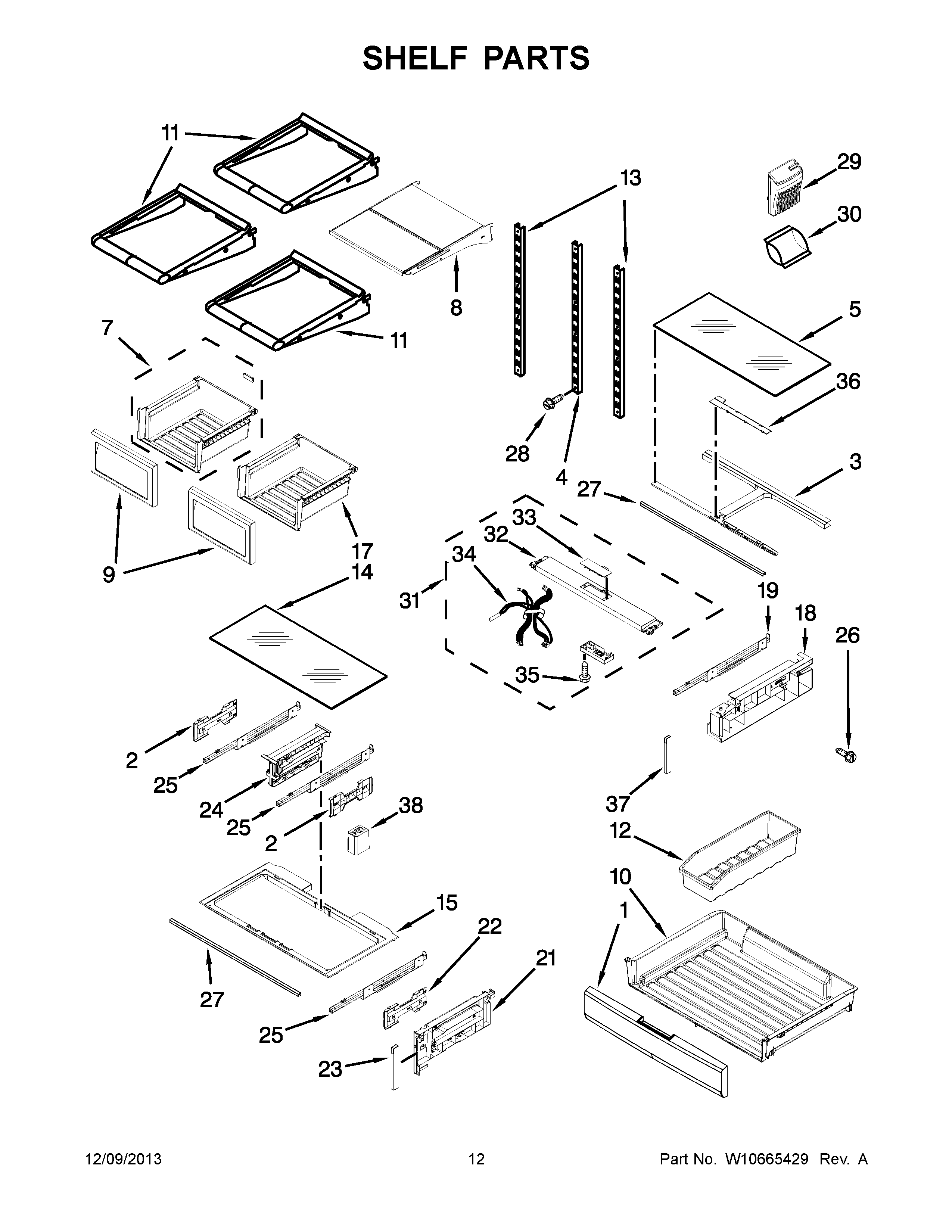

7MF2976AEM02 07 – SHELF PARTS

Products

Position	Product
1	MAY W10559660
2	PLATE, SLIDE CENTER
3	SUPPORT, PANTRY
4	MAY W10248516
5	MAY W10248799
7	MAY W10422682
8	SHELF, TUCK
9	FRONT, CRISPER
10	PAN, PANTRY
11	SHELF, FIXED
12	DIVIDER, PANTRY
13	MAY W10372170
14	MAY W10248578
15	MAY W10316419
17	MAY W10410352
18	SIDEPLATE, PANTRY (LEFT HAND)
18	SIDEPLATE, PANTRY (RIGHT HAND)
19	SLIDE, PANTRY (LEFT HAND)
19	SLIDE, PANTRY (RIGHT HAND)
21	PLATE, CRISPER (RIGHT HAND)
21	PLATE, CRISPER (LEFT HAND)
22	PLATE, SIDE
23	FRONT, SIDEPLATE (CRISPER)
24	TRACK, CENTER
25	SLIDE, CRISPER
26	SCREW
27	MAY W10236512
28	MAY W10423560
29	MAY W10408747
30	MAY W10346771
31	MAY W10584148
32	COVER, TOP
33	MAY W10565997
34	MAY W10442183
35	MAY 12990204
36	SUPPORT, PANTRY COVER (INCLUDES GASKET)
37	FRONT, SIDEPLATE (PANTRY) (LEFT HAND)
37	FRONT, SIDEPLATE (PANTRY) (RIGHT HAND)
38	MAY W10530315
