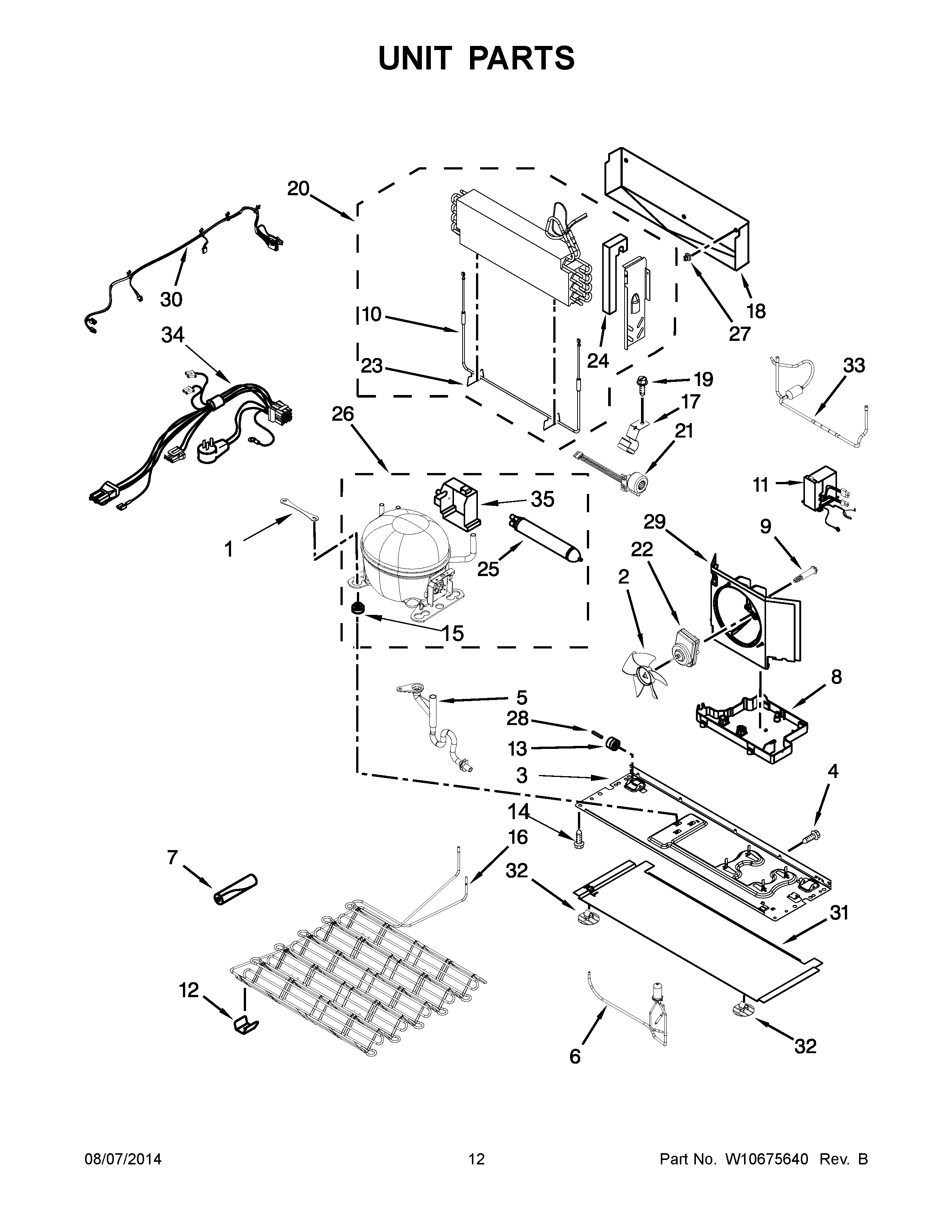

7MF2976AEM03 07 – UNIT PARTS

7MF2976AEM03 07 – UNIT PARTS

Written by

in

7MF2976AEM03 07 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY W10236396
2	Fan, Blade
3	MAY W10570074
4	SCREW (10)
5	MAY W10547687
6	MAY W10391081
7	MAY W10303521
8	MAY W10655371
9	MAY W10622701
10	MAY 12729128
11	BOX, INVERTER
12	CLIP, CONDENSER
13	Roller (2)
14	MAY 12992101
15	GROMMET, AIR RETURN
16	CONDENSER ASSEMBLY
17	BRACKET, VALVE
18	MAY W10342573
19	SCREW 8-32 X 1/2
20	MAY W10608485
21	COIL, 3 WAY VALVE
22	MOTOR, CONDENSOR
23	W11673433 Whirlpool Clip
24	MAY W10491355
25	DRIER
26	COMPRESSOR
27	MAY W10142294
28	Axle, Roller (2)
29	MAY W10406719
30	MAY W10442270
31	MAY W10278140
32	CLIP, BOTTOM COVER
33	MAY W10626970
34	CORD, POWER
35	MAY 2215676
