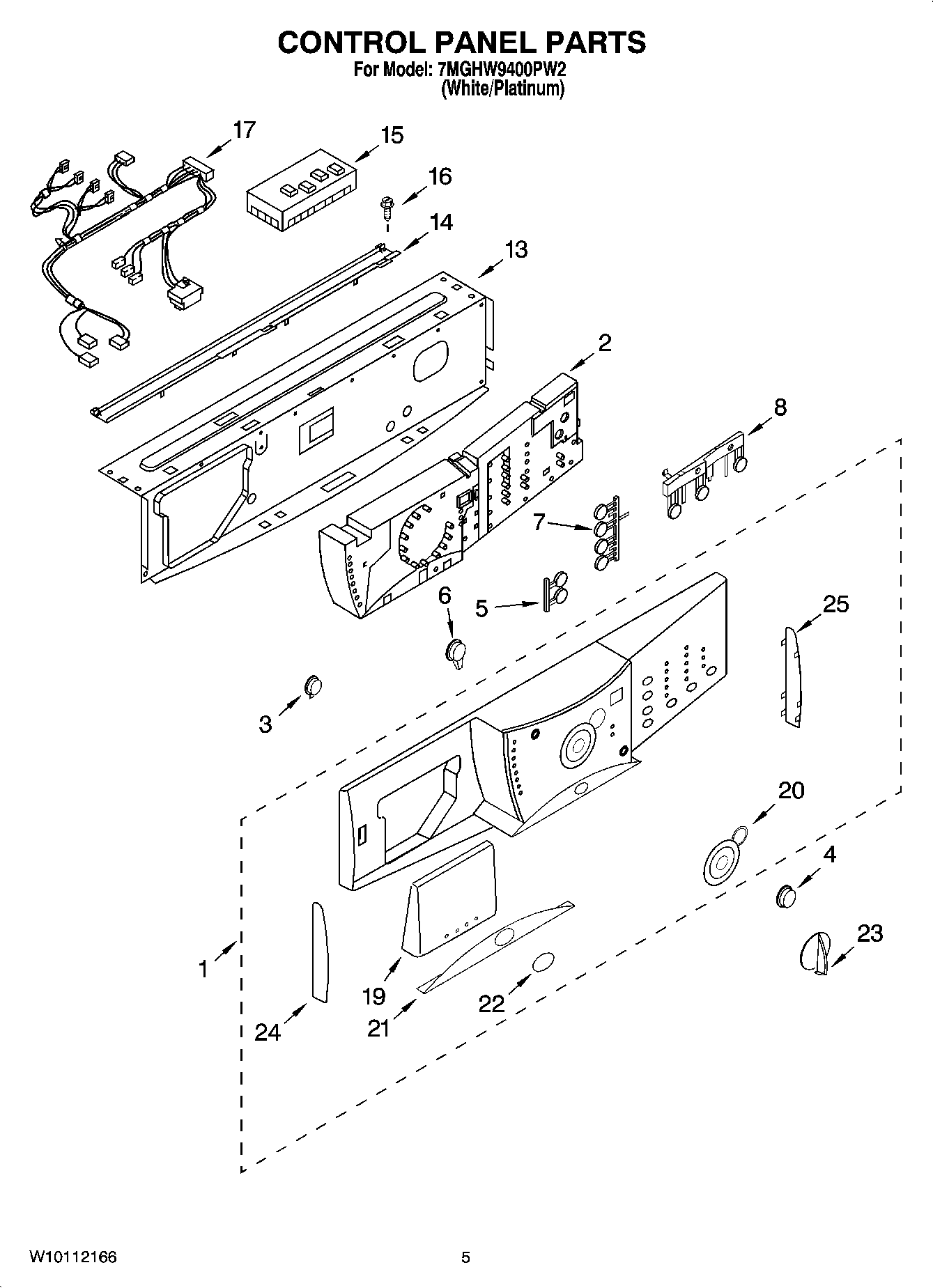

7MGHW9400PW2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control
2User Interface
3Button, Power
4Button, Start
5Button Set, Soil Level (Platinum)
6Button, Pause/Cancel
7Button Set, Options (Platinum)
8Button Set, Spin/Temperature (Platinum)
13Brace, Front Top
14Channel, Water
15Microcomputer, Machine Control
16WP488729 Whirlpool Refrigerator Door Screw
17Harness, Wiring (Main)
19Handle, Drawer (Platinum)
20Bezel, Knob
21Overlay, Door
22Medallion
23WP8181859 Whirlpool Knob
24Endcap, Left (White)
25Endcap, Right (White)
