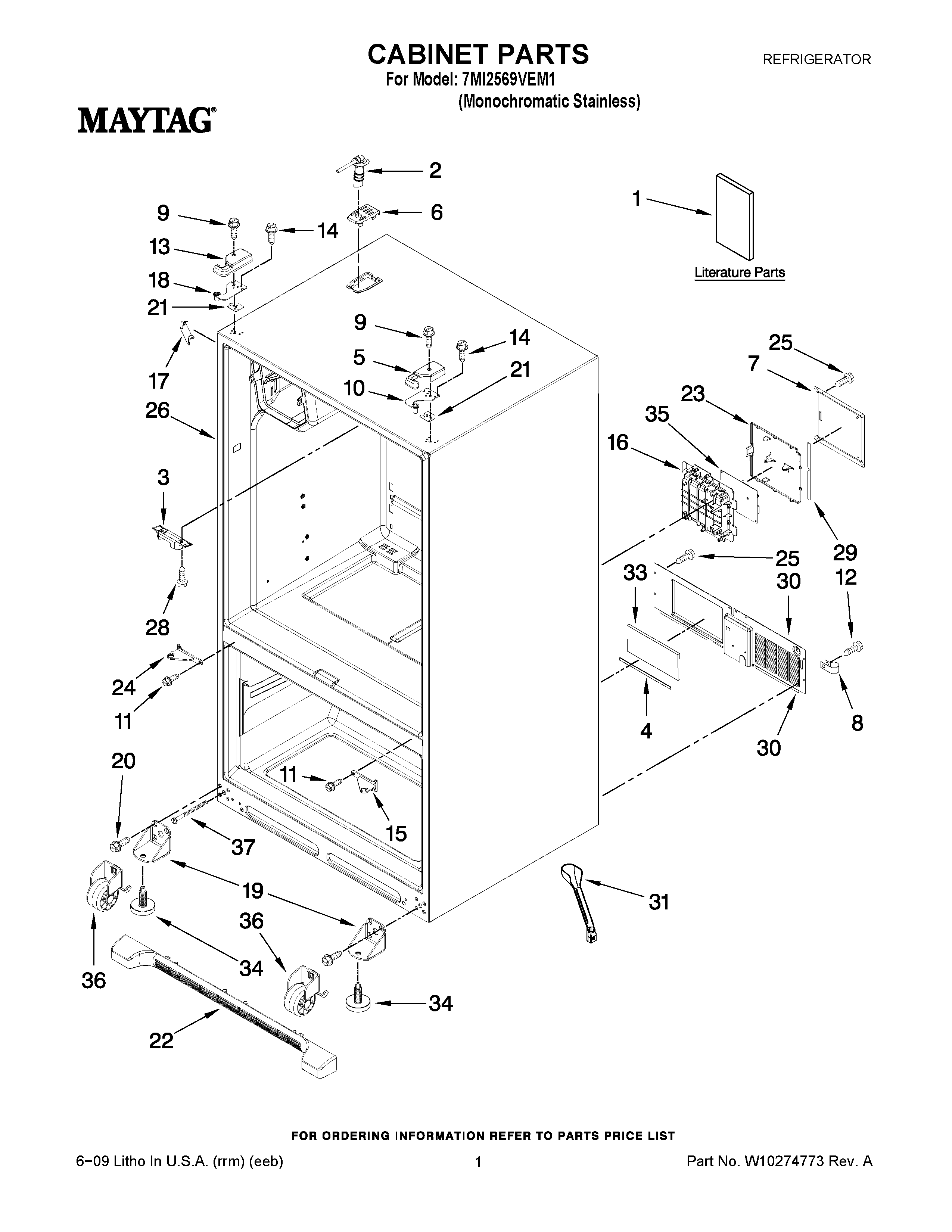

7MI2569VEM1 01 – CABINET PARTS

7MI2569VEM1 01 – CABINET PARTS

Written by

in

7MI2569VEM1 01 – CABINET PARTS

Products

PositionProduct
1MAY W10238972
1MAY W10212209
1MAY W10238848
2Tube W/Waterline, Fill-IM
3Block, Pivot
4MAY B5759655
5MAY 12962302AP
6MAY 12981401AP
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963205ED
11SCREW (6)
12SCREW (10)
13MAY 12962301AP
14SCREW (6)
15HINGE, CENTER (RT) (GREY)
16MAY 12957601
17COVER, CORNER (GREY)
18MAY 12963204ED
19Bracket, Foot
20Screw (8)
21MAY 12999501
21MAY 12999502
22MAY 12880103AP
23MAY 12957701SP
24HINGE, CENTER (LT) (GREY)
25SCREW
26LINER (NOT A SERVICEABLE PART)
28Screw (4)
29GASKET-HV BOX
30MAY W10211858
31MAY W10210988
33Insulation, Sound
34Foot Brake (2)
35MAY 12920724
36ROLLER ASSY.(REAR)
37Bolt, Adjusting (Rear)
