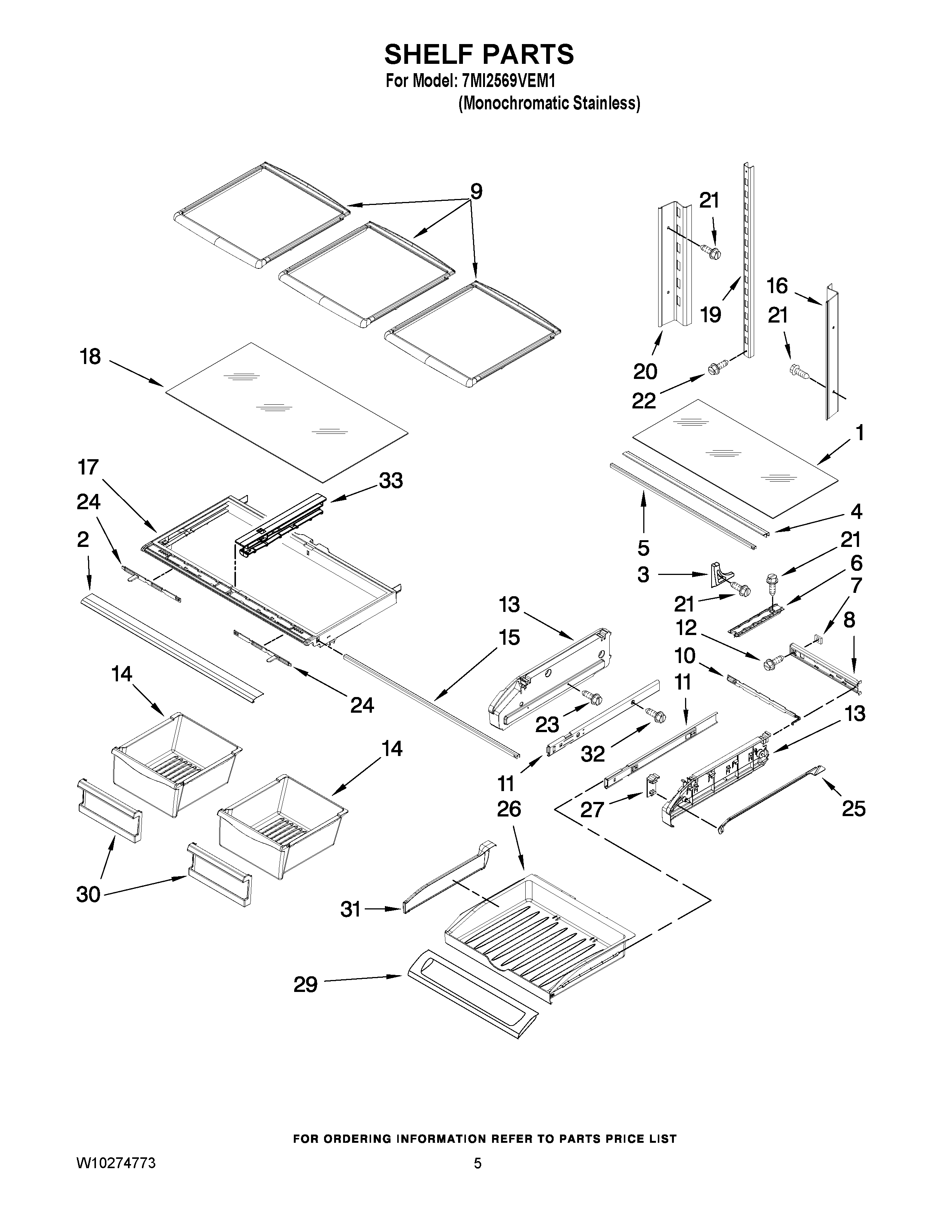

7MI2569VEM1 03 – SHELF PARTS

7MI2569VEM1 03 – SHELF PARTS

Written by

in

7MI2569VEM1 03 – SHELF PARTS

Products

Position	Product
1	MAY 12204824
2	MAY W10231345
3	MAY 13062602
4	MAY 12655902SP
5	MAY 12227305WD
6	TRACK, PANTRY
7	MAY 12656901
8	MAY 12656202
9	SHELF, GLIDE
10	SLIDE, TEMPERATURE
11	MAY 13058101V
13	ENDCAP, PANTRY (LEFT)
13	ENDCAP, PANTRY (RIGHT)
14	MAY 12804601SP
15	Brace, Crisper (2)
16	LADDER, SIDE RH
17	FRAME, CRISPER (2)
18	GLASS, PANTRY
19	MAY 12435809
20	MAY 13039302
21	MAY 12990513
22	MAY 12990515
23	SCREW (2)
24	MAY 12530805SP
25	ROD, TEMPERATURE CONTROL
26	MAY 12731302
27	MAY 12655204V
29	MAY 12656815
30	HANDLE, CRISPER PAN (2)
31	DIVIDER, PANTRY DRAWER
32	MAY 12990504
33	RAIL, CENTER CRISPER
