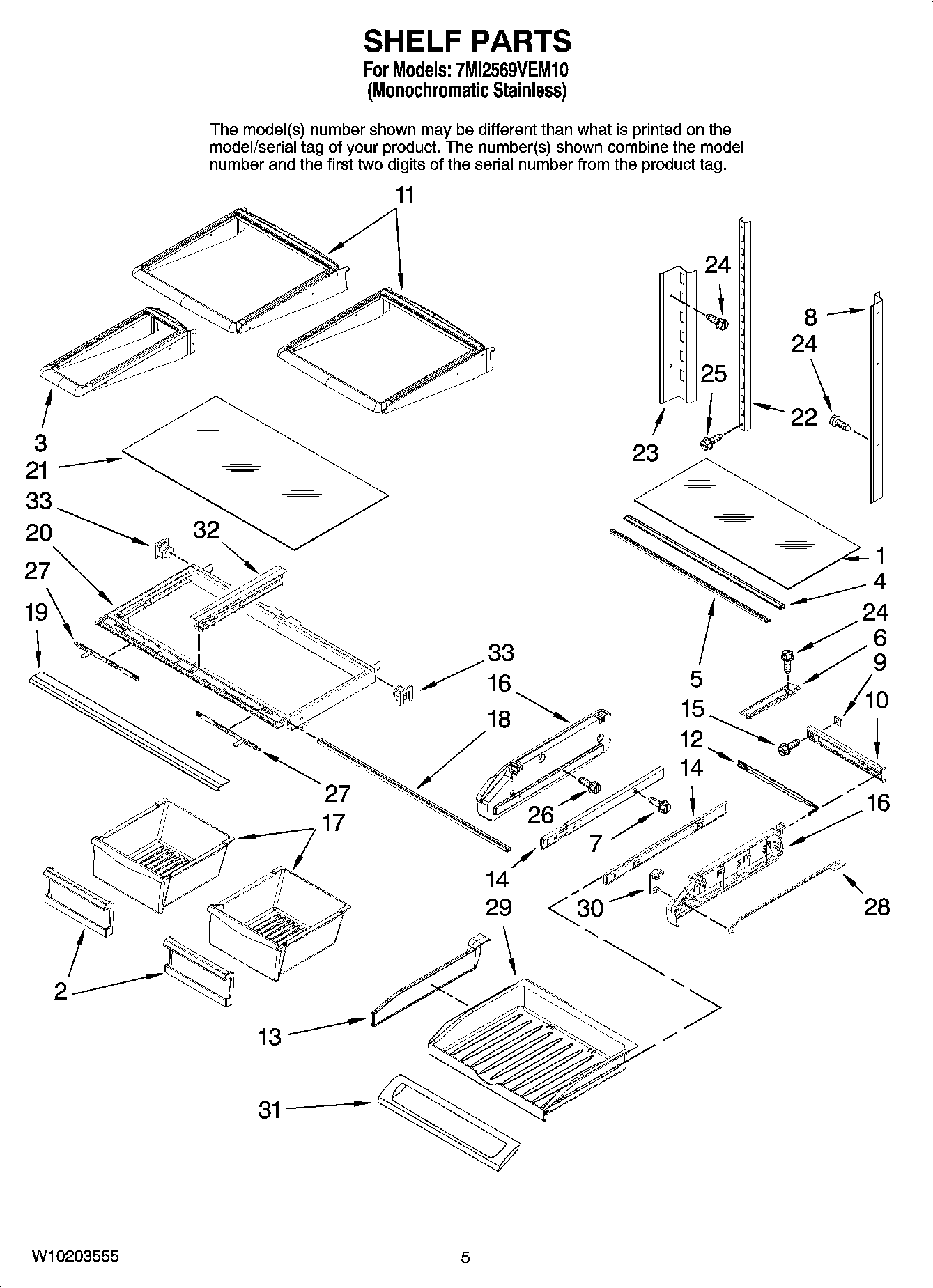

7MI2569VEM10 03 – SHELF PARTS

7MI2569VEM10 03 – SHELF PARTS

Written by

in

7MI2569VEM10 03 – SHELF PARTS

Products

PositionProduct
1MAY 67002761
2WP67005923 Whirlpool Refrigerator Front Cover
3MAY W10187852
4WP67006010 Whirlpool Refrigerator Shelf Trim
5WP12227305WD Whirlpool Drawer Support
6WP67001719 Whirlpool Refrigerator Track
7WP98165 Whirlpool Screw
8Ladder, Side (Right)
967002329 Whirlpool Refrigerator Pantry Gasket
10MAY 67005625
11W11402525 Whirlpool Glass Shelf
12MAY 67003793
13WP67002759 Whirlpool Refrigerator Divider
14Glide, Drawer(2)
16W10874836 Whirlpool Endcap Assembly Left Hand and Right
17WP67004515 Whirlpool Crisper Drawer
18WP12642303WD Whirlpool Refrigerator Drawer Support
19WPW10231345 Whirlpool Refrigerator Shelf Trim
20WP67003854 Whirlpool Shelf Frame
21WP67006704 Whirlpool Glass Crisper Cover
22MAY 67006358
23MAY 67006354
24MAY 67006400
25W10709795 Whirlpool Refrigerator Screw
26Screw (2)
27MAY 67005864
28WP67003795 Whirlpool Refrigerator Temperature Control Bar
29WP67003531 Whirlpool Drawer Assembly
30W11498983 Whirlpool Refrigerator Knob
31W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
32WPW10326469 Whirlpool Drawer Slide Rail
33WP12603701 Whirlpool Refrigerator Support
