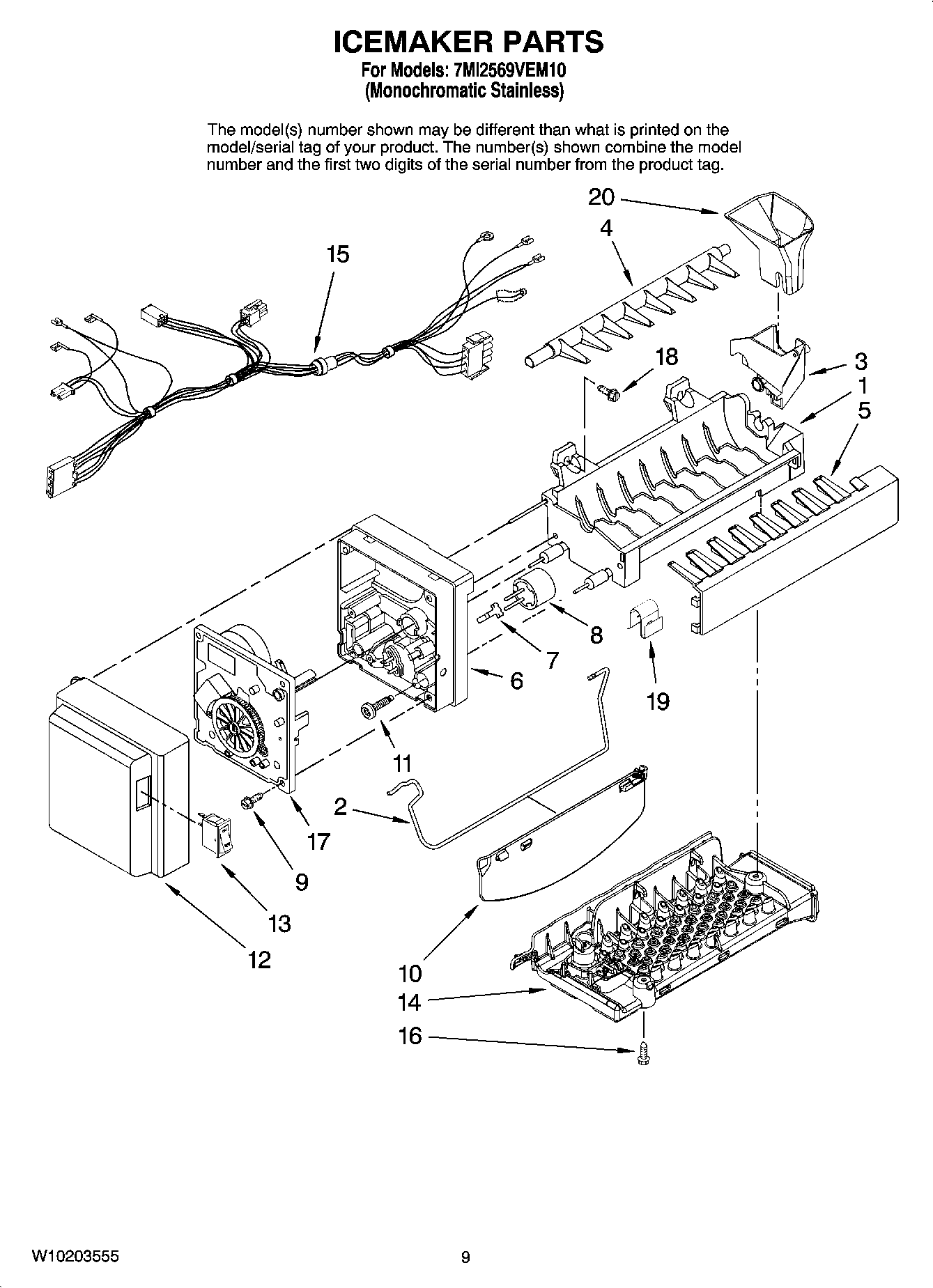

7MI2569VEM10 05 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	MAY W10122527
2	MAY W10175514
3	Cup, Fill
4	MAY 627843
5	MAY 2182124
6	MAY 2194712
7	MAY 2315522
8	Thermostat (Also Order 542369 Cement Alumilastic)
9	Screw (3)
10	MAY W10121440
11	MAY 8533917
12	MAY W10121444
13	MAY 2313326
14	MAY W10121269
15	MAY W10117860
16	Screw (10)
17	Module Assembly (Includes Items 21& 22)
18	MAY 489276
19	Clip
20	MAY W10121434
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
