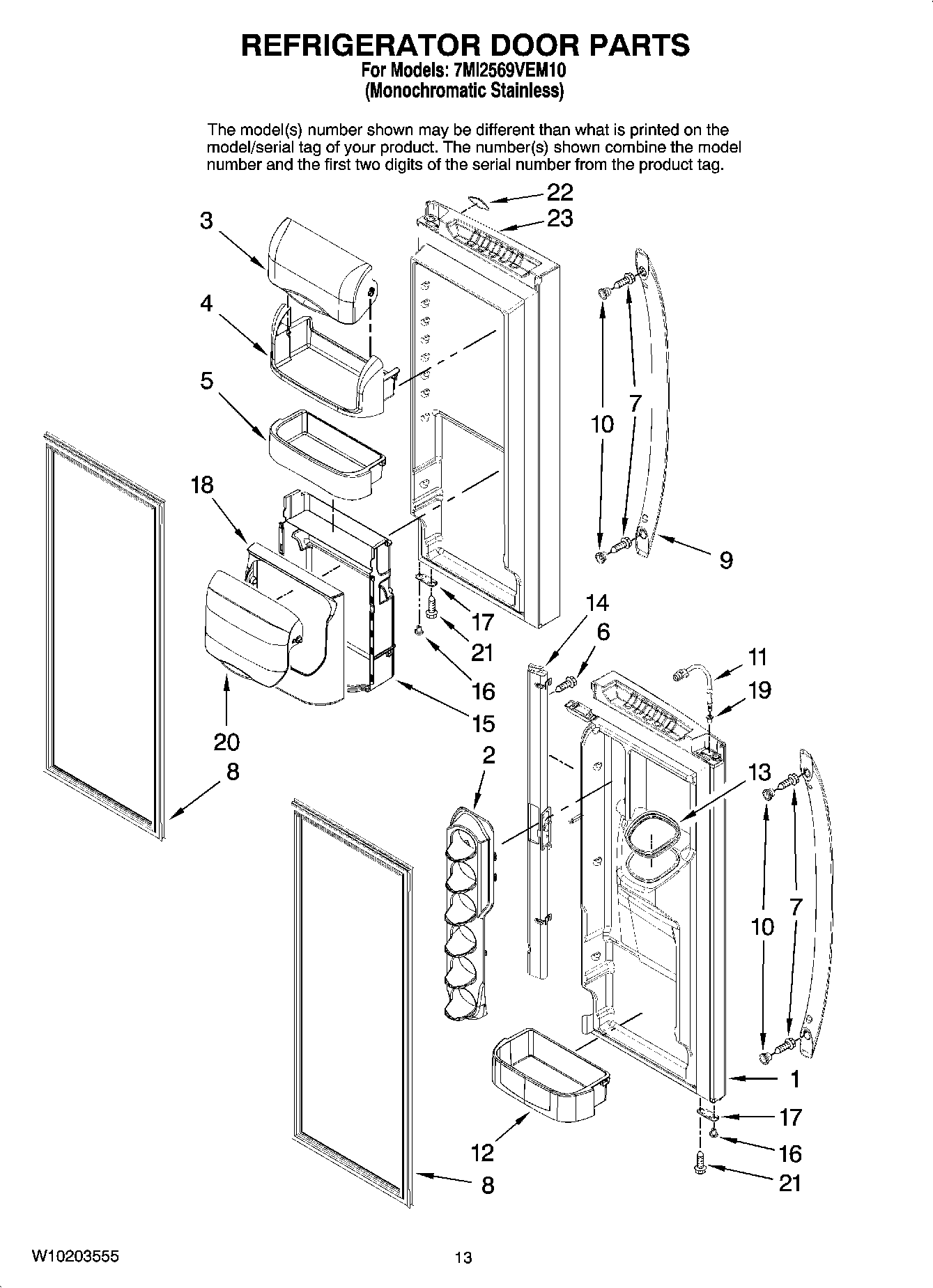

7MI2569VEM10 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY W10191138
2	MAY 67006311
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WP67006313 Whirlpool Refrigerator Chiller Bucket
6	MAY 67006786
7	WP3387230 Whirlpool Screw
8	GASKET, DOOR STAINLESS
9	Handle, Door (Stainless)
10	WP67006113 Whirlpool Stud Bolt
11	12962106 Whirlpool Refrigerator Waterline Door
12	MAY W10187434
13	WPW10287601 Whirlpool Seal
14	MULLION, DOOR (GREY)
16	MAY W10191100
17	MAY W10191119
18	W11266639 Whirlpool Refrigerator Chiller
19	12996601 Whirlpool Refrigerator Bushing Clip
20	DOOR-CHILL
21	Screw (8)
22	Nameplate
23	MAY W10191134
