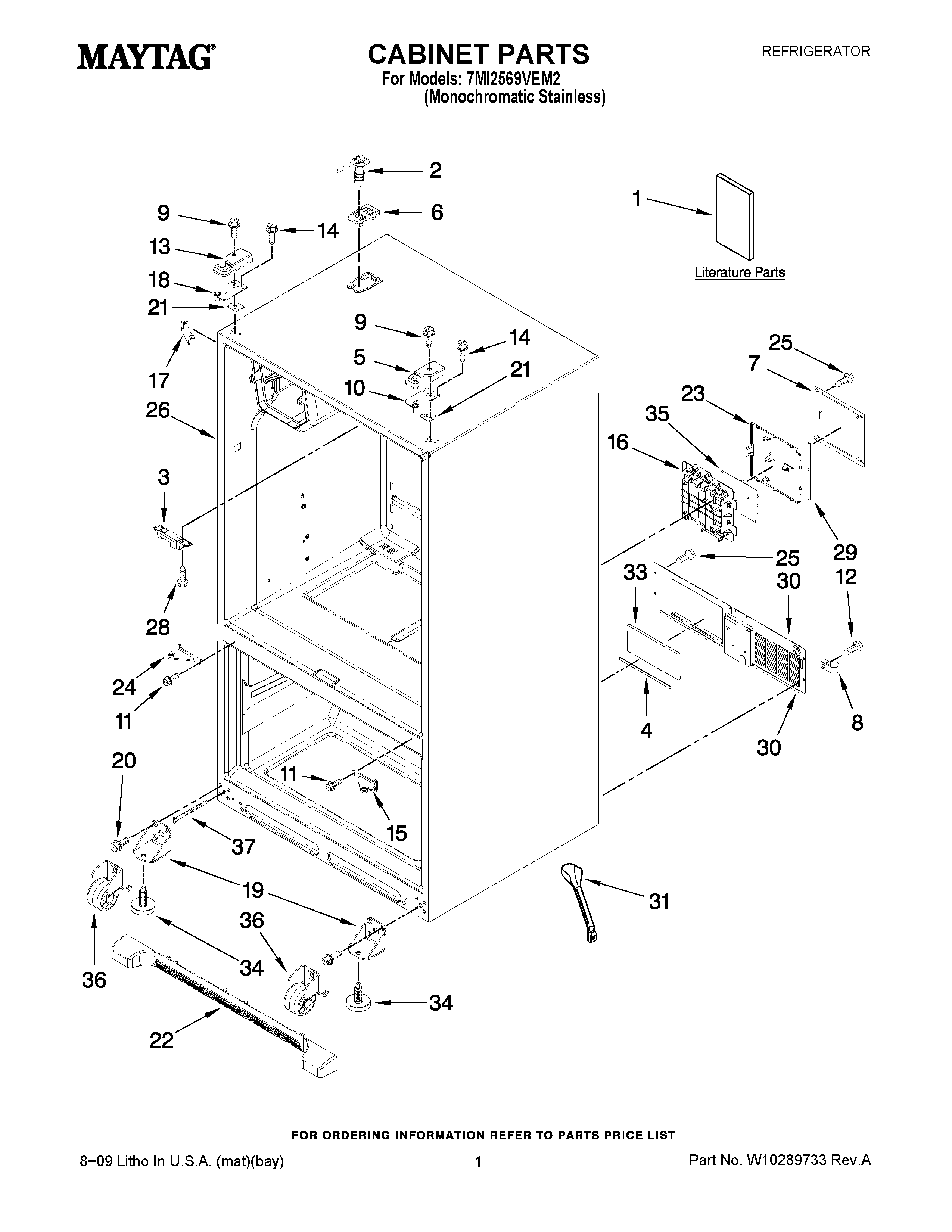

7MI2569VEM2 01 – CABINET PARTS – Aparts

7MI2569VEM2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10238972
1	MAY W10212209
1	MAY W10238848
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302AP
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301AP
14	SCREW (6)
15	HINGE, CENTER (RT) (GREY)
16	MAY 12957601
17	COVER, CORNER (GREY)
18	MAY 12963204ED
19	Bracket, Foot
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	MAY 12880103AP
23	MAY 12957701SP
24	HINGE, CENTER (LT) (GREY)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211858
31	MAY W10210988
33	Insulation, Sound
34	Foot Brake (2)
35	MAY W10213583
36	ROLLER ASSY.(REAR)
37	Bolt, Adjusting (Rear)
