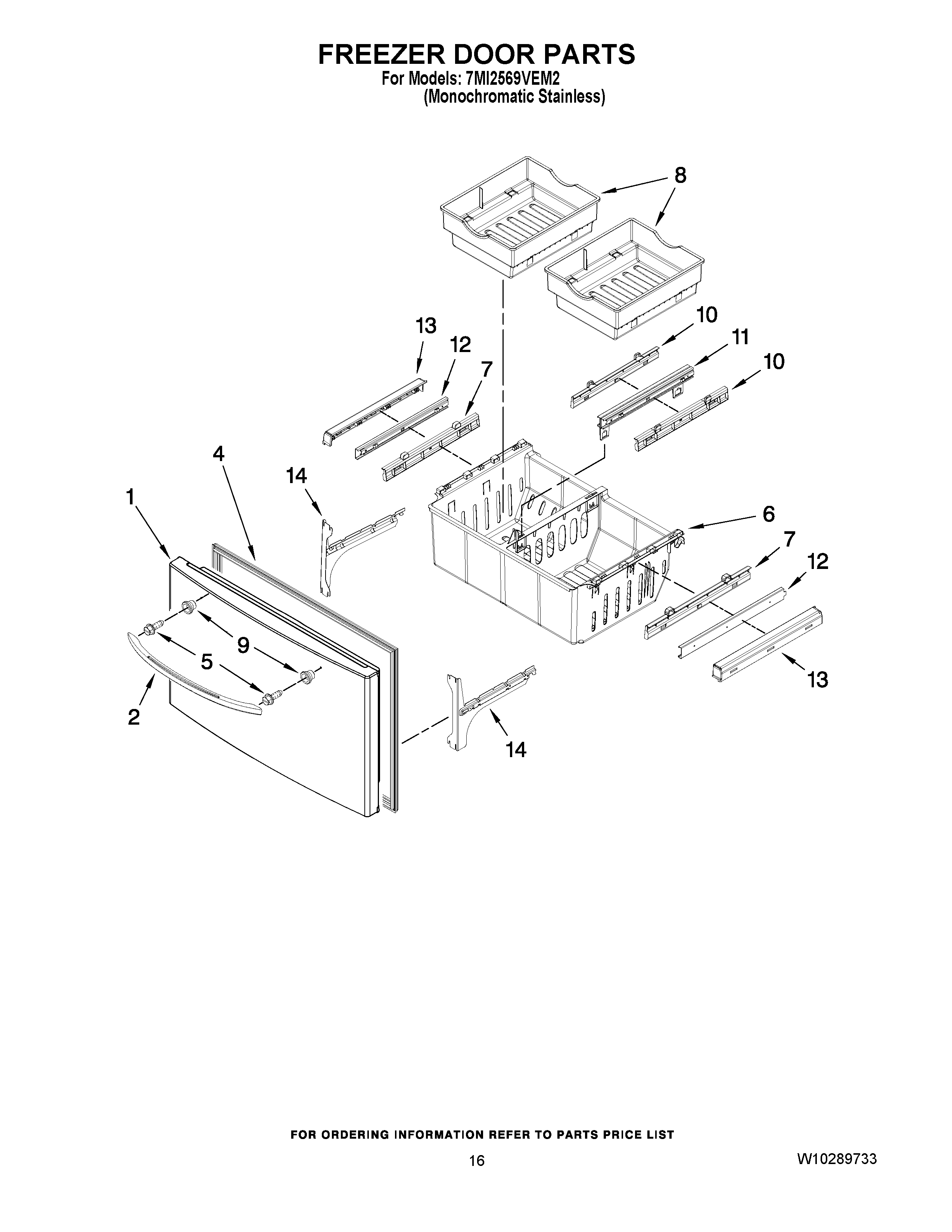

7MI2569VEM2 09 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY 12977830SQ
2	MAY W10197300
4	GASKET, DOOR (STAINLESS)
5	SCREW
6	MAY 12924801SP
7	MAY 12925403SP
8	MAY 12924903
9	MAY 13001201
10	ADAPTER, BIN (CENTER)
11	BRACKET/GLIDE ASSEMBLY
12	MAY 12925101
13	MAY 12925501SP
13	MAY 12925502SP
14	BRACKET, DOOR (RIGHT)
14	BRACKET, DOOR (LEFT)
