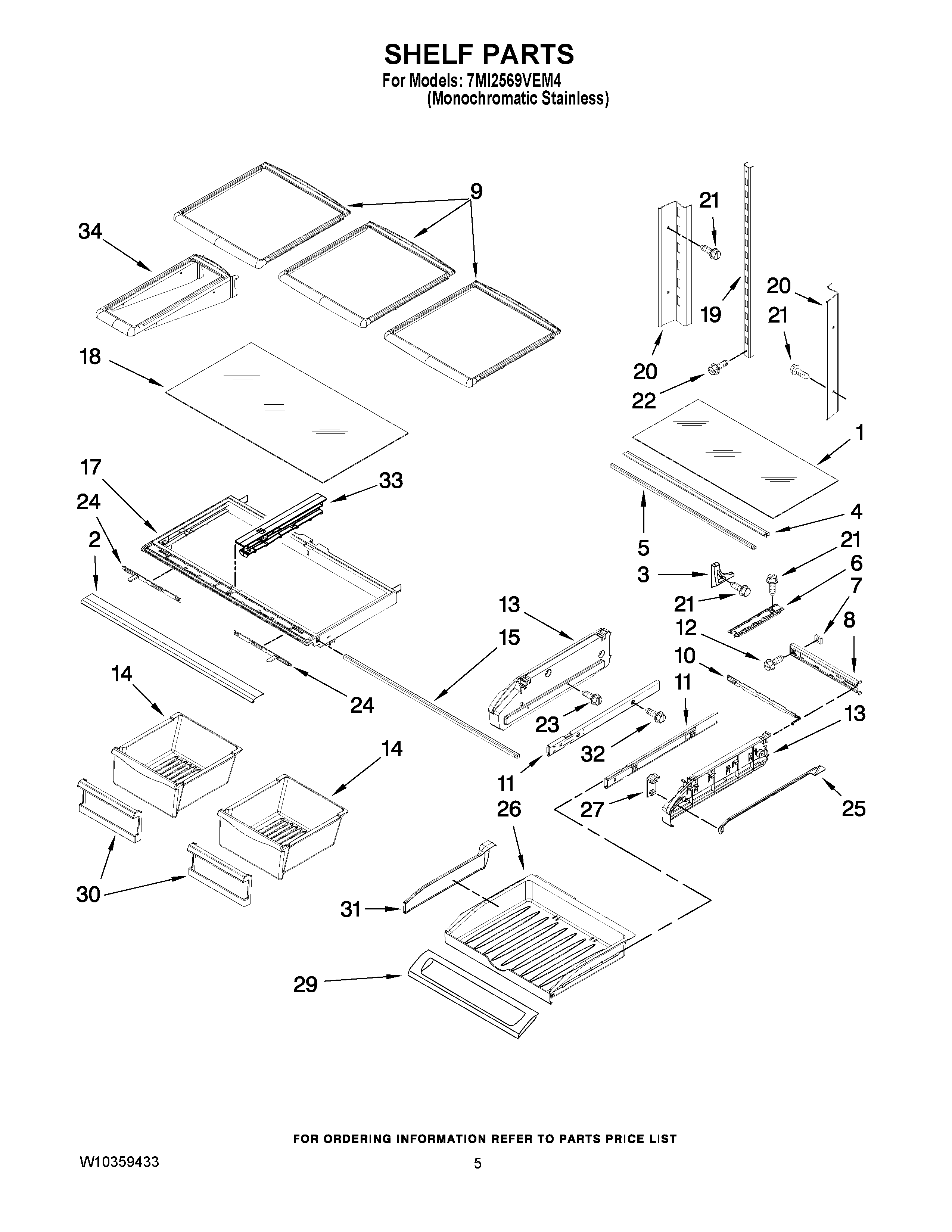

7MI2569VEM4 03 – SHELF PARTSadmin2025-04-26T11:41:02+00:007MI2569VEM4 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY 12204824 |
| 2 | MAY W10231345 |
| 3 | MAY 13062602 |
| 4 | MAY 12655902SP |
| 5 | MAY 12227305WD |
| 6 | TRACK, PANTRY |
| 7 | MAY 12656901 |
| 8 | MAY 12656202 |
| 9 | SHELF, GLIDE (3) |
| 10 | SLIDE, TEMPERATURE |
| 11 | MAY W10235370 |
| 13 | ENDCAP, PANTRY (LEFT) |
| 13 | ENDCAP, PANTRY (RIGHT) |
| 14 | MAY 12804601SP |
| 15 | Brace, Crisper (2) |
| 17 | MAY W10329866 |
| 18 | GLASS, PANTRY |
| 19 | MAY W10273464 |
| 20 | LADDER, SIDE LH |
| 20 | LADDER, SIDE RH |
| 21 | MAY 12990513 |
| 22 | MAY 12990515 |
| 23 | SCREW (2) |
| 24 | MAY 12530805SP |
| 25 | ROD, TEMPERATURE CONTROL |
| 26 | MAY 12731302 |
| 27 | MAY 12655204V |
| 29 | MAY 12656815 |
| 30 | HANDLE, CRISPER PAN (2) |
| 31 | DIVIDER, PANTRY DRAWER |
| 32 | MAY 12990504 |
| 33 | RAIL, CENTER |
| 34 | SHELF-MINI |
