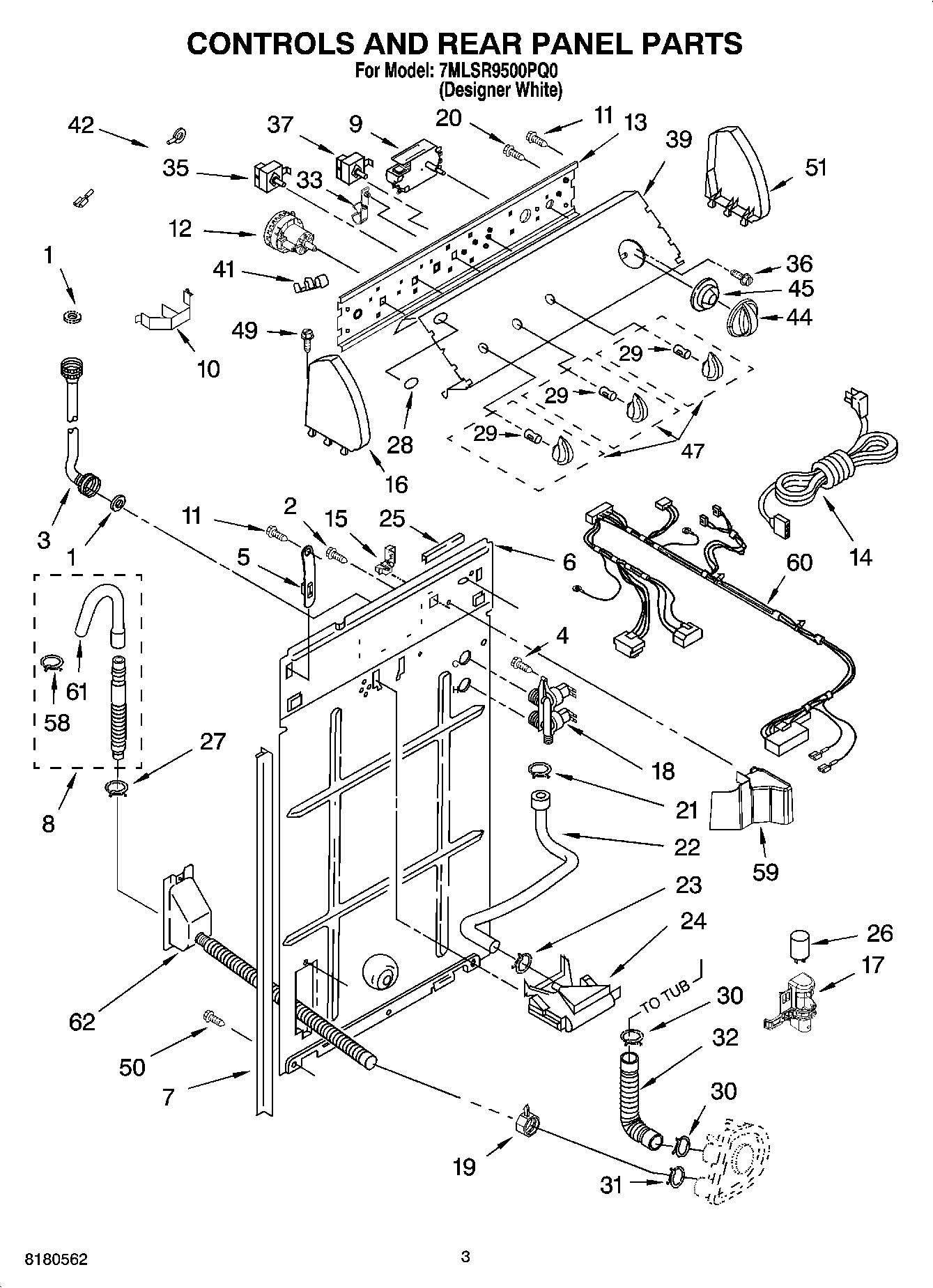

7MLSR9500PQ0 02 – CONTROLS AND REAR PANEL PARTS

7MLSR9500PQ0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

7MLSR9500PQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP3351614 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
9WP3949208 Whirlpool Timer
10Clip, Harness & Pressure Hose
11WP90767 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13Bracket, Control
14W10130795 Whirlpool Power Cord
15Strain Relief, Power Cord
17Clip, Capacitor
18285805 Whirlpool Washer Water Inlet Valve
19Clamp, Hose
20Screw (6)
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26CAPACITOR
27WP356138 Whirlpool Hose Clamp
28WPL 3400985
29WP8536939 Whirlpool Spring Clip
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Retainer, Harness
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37W10851055 Whirlpool Cycle Switch
39Panel, Console (Includes Item 28)
41W10113937 Whirlpool Clamp
42Wire, Ground
44Knob, Timer (White)
45WP8544947 Whirlpool Dial
47WPL 8544935
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
58WP3357331 Whirlpool Clamp
59Sh
60WPL 3956729
61WP3357027 Whirlpool Nozzle Assembly
62WPW10358149 Whirlpool Hose
