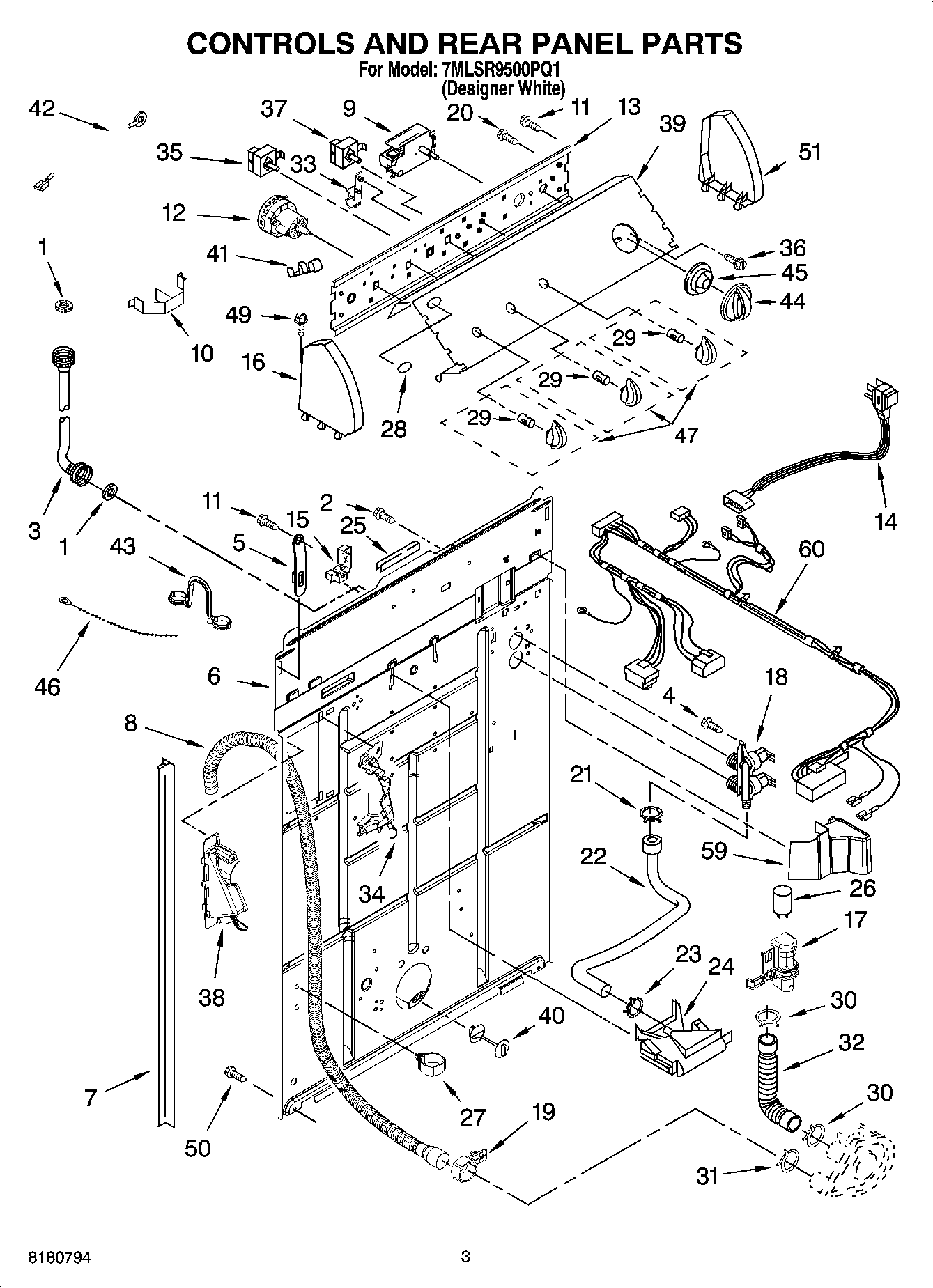

7MLSR9500PQ1 02 – CONTROLS AND REAR PANEL PARTS

7MLSR9500PQ1 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

7MLSR9500PQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP3351614 Whirlpool Screw
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3949208 Whirlpool Timer
10Clip, Harness & Pressure Hose
11WP90767 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13Bracket, Control
14WP8559419 Whirlpool Power Cord
15Strain Relief, Power Cord
17Clip, Capacitor
18285805 Whirlpool Washer Water Inlet Valve
198541668 Whirlpool Washer Clamp
20Screw (6)
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26CAPACITOR
27Clamp, Hose
28WPL 3400985
29WP8536939 Whirlpool Spring Clip
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Retainer, Harness
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37W10851055 Whirlpool Cycle Switch
38WPW10096921 Whirlpool Hose
39Panel, Console (Includes Item 28)
40WP8519200 Whirlpool Support Assembly
41W10113937 Whirlpool Clamp
42Wire, Ground
43WP8577378 Whirlpool Retainer
44Knob, Timer (White)
45WP8544947 Whirlpool Dial
46WPW10339879 Whirlpool Wire Tie
47WPL 8544935
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
59Sh
60WPL 3956729
