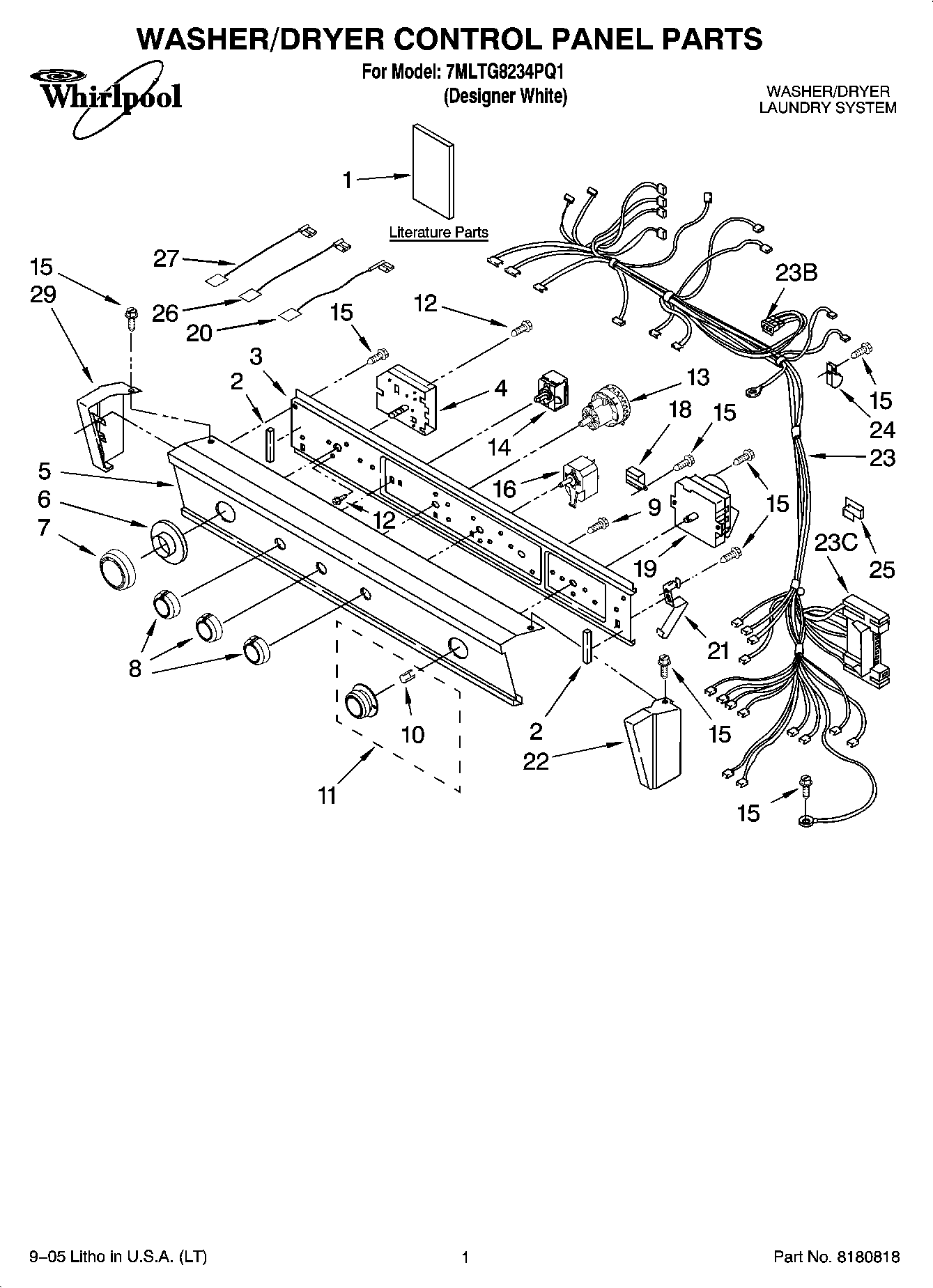

7MLTG8234PQ1 01 – WASHER/DRYER CONTROL PANEL PARTS

7MLTG8234PQ1 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

7MLTG8234PQ1 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1Installation Instructions
1Sheet, Cycle Feature
1Use & Care Guide
1Wiring Diagram
23390688 Whirlpool Bumper Assembly
3W10732070 Whirlpool Bracket
4WP3948357 Whirlpool Timer Assembly
5Panel, Control
6Dial (Washer)
7Knob, Timer (Washer)
8WP3957796 Whirlpool Knob
9303776 Whirlpool Dishwasher Screw
10WP688805 Whirlpool Spring Clip
11WP3957750 Whirlpool Knob
12WP3400064 Whirlpool Screw
13Switch, Pressure
14Switch, Temperature
15WP90767 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
18WP694419 Whirlpool Buzzer Adjuster
19WP3976569 Whirlpool Timer
20Wire, Jumper (Blue)
213389453 Whirlpool Hinge Assembly
22End Cap (RH)
23Harness – Dryer
23C3395683 Whirlpool Connector
23BReceptacle,
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
26Wire, Jumper (Black)
27Wire, Jumper (Black)
29End Cap (LH)
