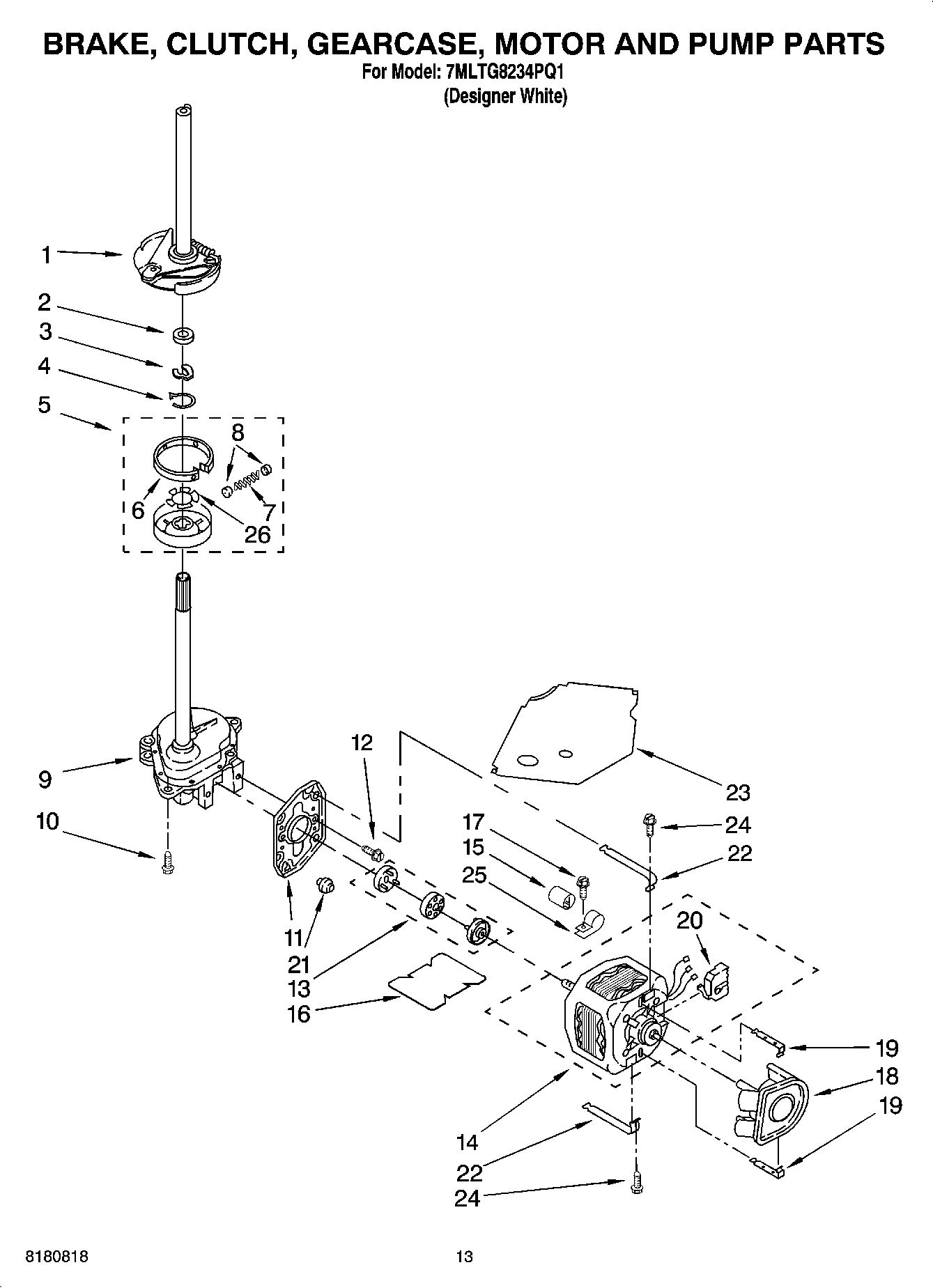

7MLTG8234PQ1 08 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5285785 Whirlpool Washer Direct Drive Clutch
6285790 Whirlpool Washer Clutch Band and Lining Kit
7WP3946792 Whirlpool Spring
8WP62646 Whirlpool Cap
93360629 Whirlpool Washer Gearcase Transmission
10WP3400516 Whirlpool Screw
11WP62611 Whirlpool Plate
13285753A Whirlpool Washer Direct Drive Motor Coupling
14WP661600 Whirlpool Drive Motor
15CAPACITOR
16WP3946532 Whirlpool Shield
17WP3390631 Whirlpool Screw
18WP3363892 Whirlpool Water Pump
19WP8546127 Whirlpool Retainer Clip
20Switch, Main Drive Motor
21WP62691 Whirlpool Grommet
22WPW10086010 Whirlpool Motor Retainer Clip
238316060 Whirlpool Shield
24WP273556 Whirlpool Screw
25357030 Whirlpool Clamp
26Clip, Anti-Rattle
