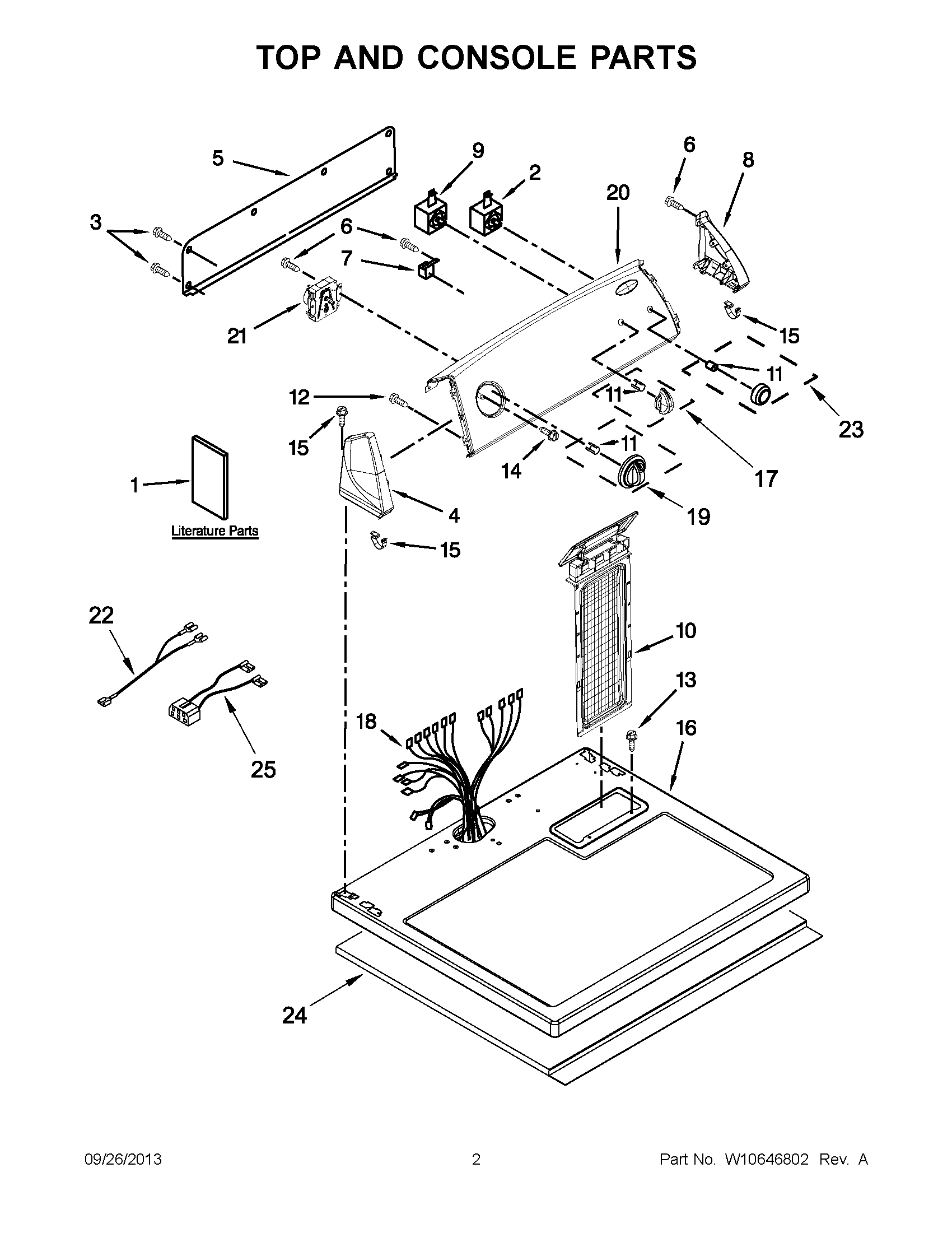

7MMEDC300BW0 02 – TOP AND CONSOLE PARTS

7MMEDC300BW0 02 – TOP AND CONSOLE PARTS

Written by

in

7MMEDC300BW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10566781
1MAY W10274613
1INSTALLATION, INSTRUCTION
2MAY 3977456
3Screw
4MAY W10251358
5MAY 8274261
7MAY 694419
8MAY W10251355
9Switch, Wrinkle Guard
10LINT SCREEN WHITE
11CLIP, SPRING
12MAY 3348629
13SCREW
14MAY 8533974
15MAY 8312709
16MAY W10225059
17MAY W10327523
18MAY W10590540
19MAY W10327522
20MAY W10592518
21MAY 8299779
22Wire, Jumper Black (PTS)
23KNOB, PUSH-TO-START
24MAY W10123956
25MAY 3401695
