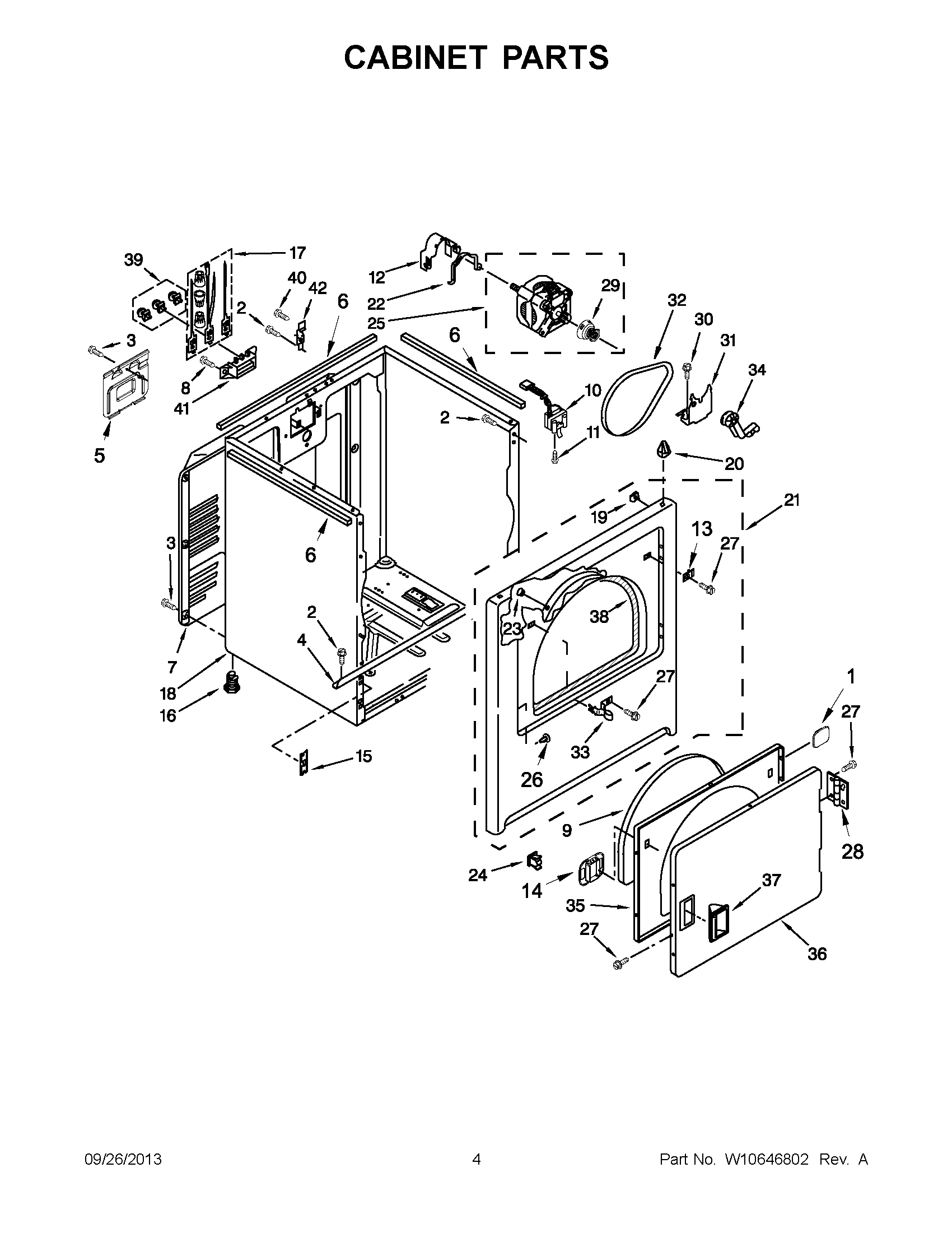

7MMEDC300BW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	COVER, DOOR CATCH
2	SCREW
3	Screw
4	MAY W10236073
5	MAY W10571619
6	SEAL, FOAM
7	MAY W10571724
8	SCREW, 10-16 X 1/2
9	MAY W10389572
10	MAY W10237959
11	SCREW
12	Clamp, Motor (With Shield)
13	PLUG, STRIKE
14	BEZEL, DOOR CATCH
15	MAY 3394083
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	Panel Front Assembly
22	CLAMP, MOTOR MOUNT
23	Clip, Felt Pad
24	MAY W10610880
25	ASSEMBLY, MOTOR
26	PLUG, HINGE HOLES
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	Pulley, Motor
30	BOLT
31	MAY 348780
32	BELT, DRIVE
33	Strike, Door
34	IDLER ASSEMBLY
35	DOOR, INNER
36	DOOR FRONT
37	Handle, Door
38	SEAL & BEARING ASSEMBLY
39	MAY 279393
40	MAY 8533974
41	MAY 3397659
42	Hinge, Top
