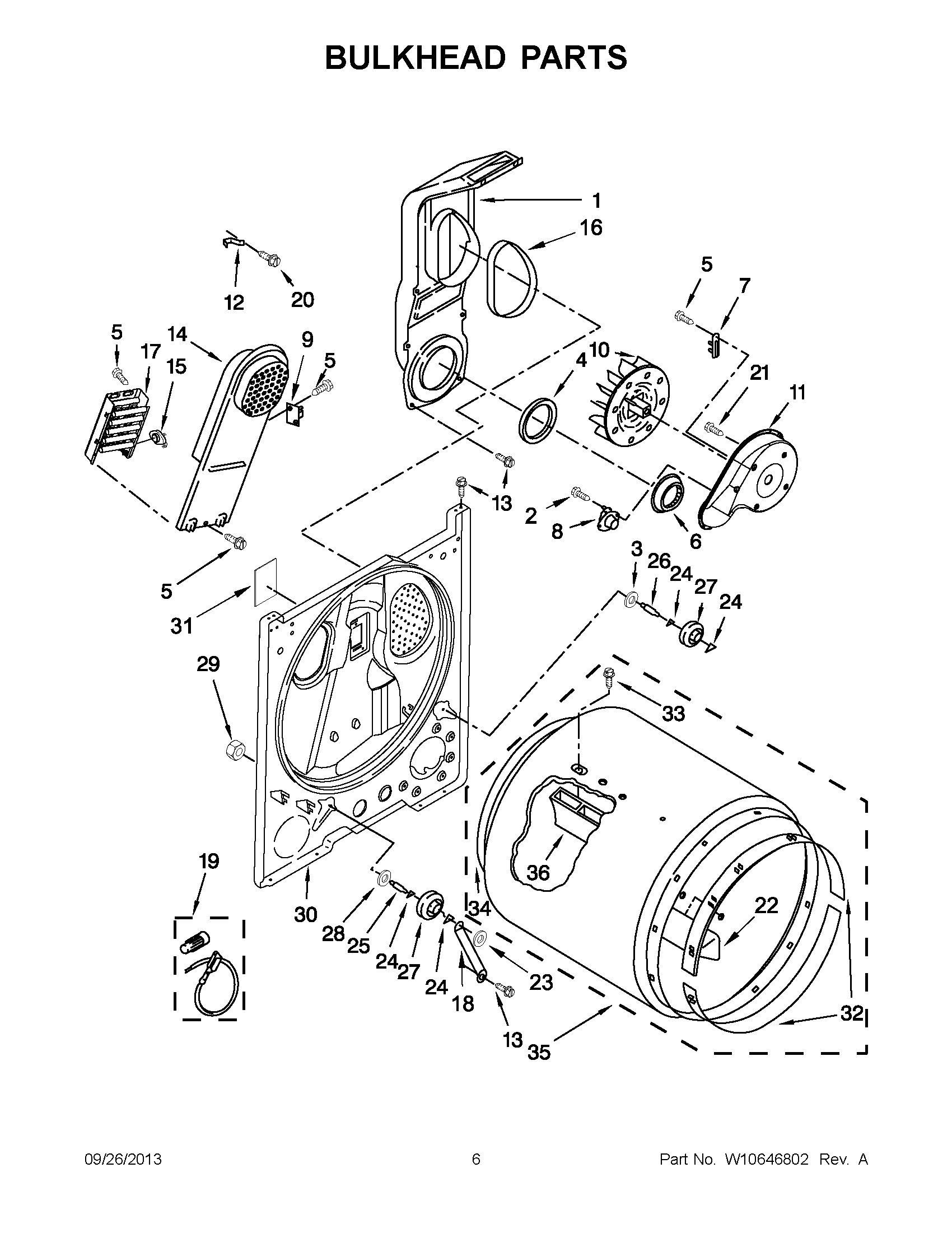

7MMEDC300BW0 04 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY W10389567
7	Fuse, Thermal (91 C)
8	MAY 3387134
9	MAY 3977393
10	Wheel, Blower
11	MAY 8577230
12	MAY 8066155
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	MAY 339956
17	MAY 3403585
18	MAY 3976434
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SCREW
22	BAFFLE, DRUM (SHORT)
23	NUT, PUSH ON
24	WASHER, TRI RING
25	MAY W10359270
26	MAY W10359269
27	MAY 3397590
28	WASHER
29	MAY W10298789
30	MAY 3403491
31	MAY W10504381
32	Bearing, Ring
33	MAY W10219342
34	MAY W10389561
35	DRUM ASSEMBLY COMPLETE
36	BAFFLE, DRUM (LONG)
