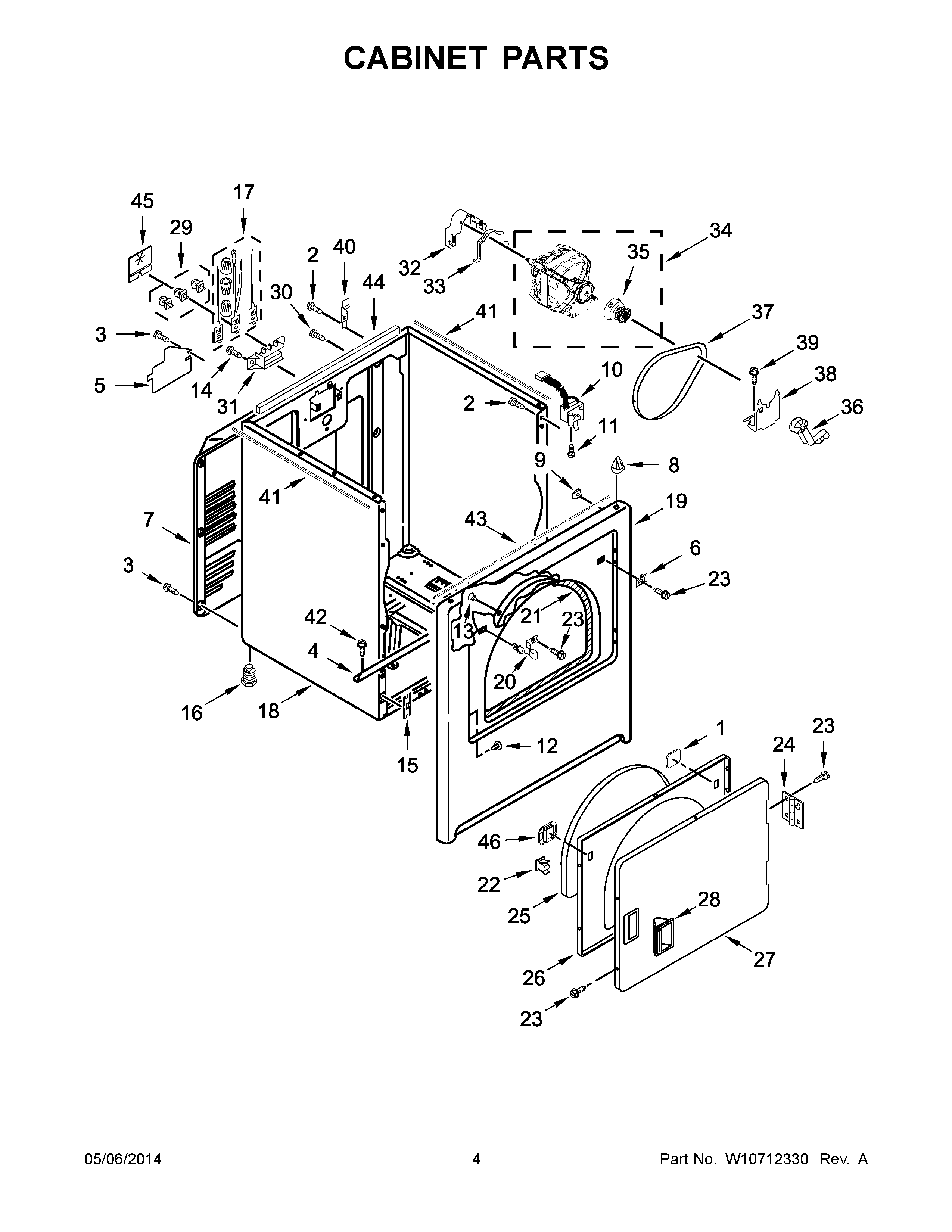

7MMEDC300DW0 03 – CABINET PARTS

Products

Position	Product
1	COVER, DOOR CATCH
2	SCREW
3	Screw
4	MAY W10236073
5	MAY W10571619
6	PLUG, STRIKE
7	MAY W10571724
8	MAY 8066092
9	Clip, Ground
10	SWITCH, DOOR
11	SCREW
12	PLUG, HINGE HOLES
13	Clip, Felt Pad
14	SCREW, 10-16 X 1/2
15	MAY 3394083
16	MAY W10561321
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Panel Front Assembly
20	Strike, Door
21	MAY W10663510
22	MAY W10610880
23	MAY 342055
24	ASSEMBLY, HINGE AND PIN
25	MAY W10389572
26	DOOR, INNER
27	DOOR FRONT
28	HANDLE, DOOR (WHITE)
29	MAY 279393
30	MAY 8533974
31	MAY 3397659
32	Clamp, Motor (With Shield)
33	CLAMP, MOTOR MOUNT
34	ASSEMBLY, MOTOR
35	Pulley, Motor
36	IDLER ASSEMBLY
37	BELT, DRIVE
38	MAY 348780
39	BOLT
40	Hinge, Top
41	SEAL, FOAM
42	SCREW
43	SEAL, SPILL GUARD
44	SEAL-SPILL GUARD
45	PAD, POWER CORRD
46	BEZEL, DOOR CATCH
