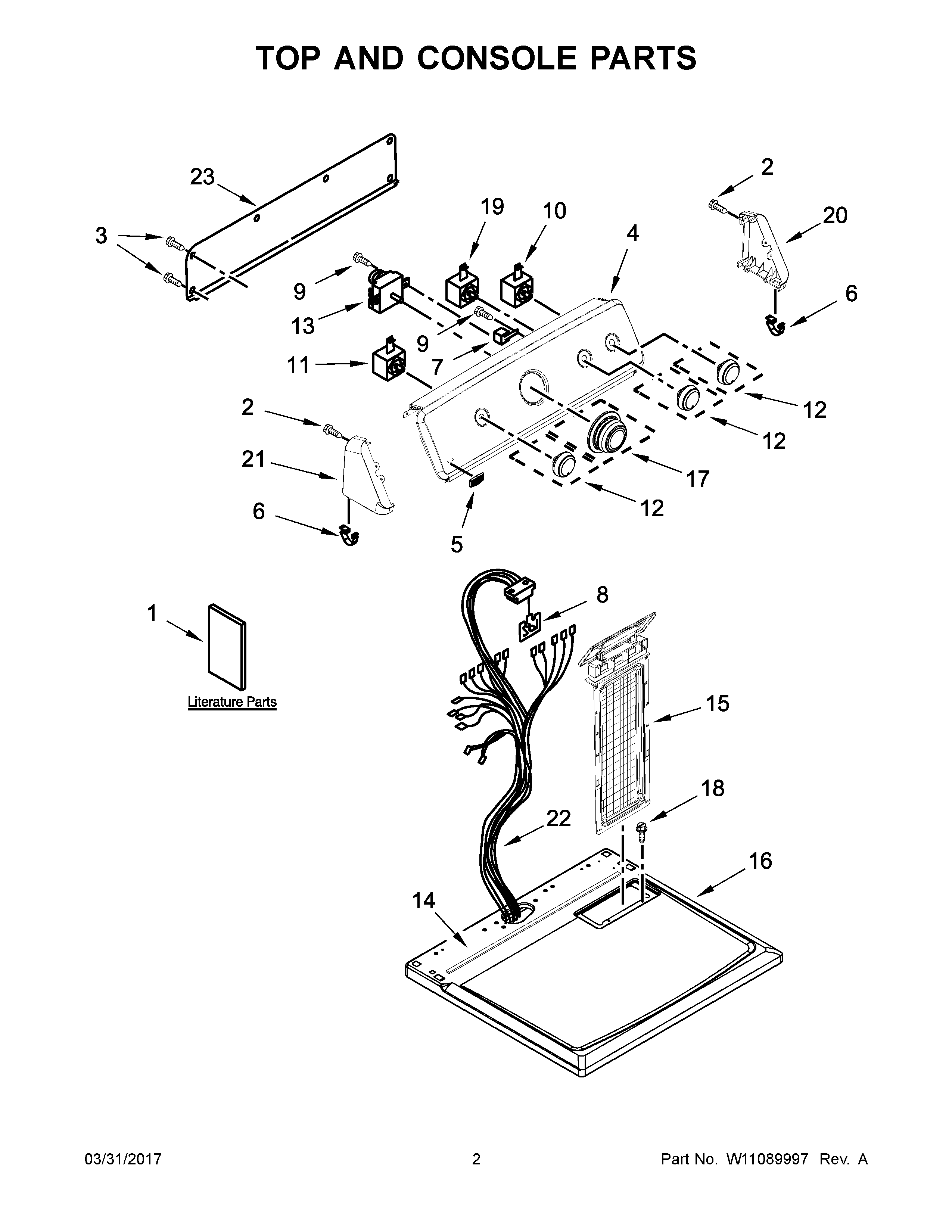

7MMEDC300DW1 02 – TOP AND CONSOLE PARTS

7MMEDC300DW1 02 – TOP AND CONSOLE PARTS

Written by

in

7MMEDC300DW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	MAY W10658640
1	MAY W11082211
1A	MAY W10663990
2	MAY 8533971
3	Screw
4	MAY W10643298
5	MAY W10199708
6	MAY 8312709
7	MAY 694419
8	MAY W10476828
9	MAY 3348629
10	MAY W10117655
11	MAY 8578354
12	MAY W10562155
13	MAY W10185992
14	MAY W10316616
15	MAY W10717210
16	TOP (WHITE)
17	MAY W10558463
18	SCREW
19	MAY 3405156
20	Endcap (R.H.)
21	Endcap (L.H.)
22	MAY W10664598
23	MAY W10103406
