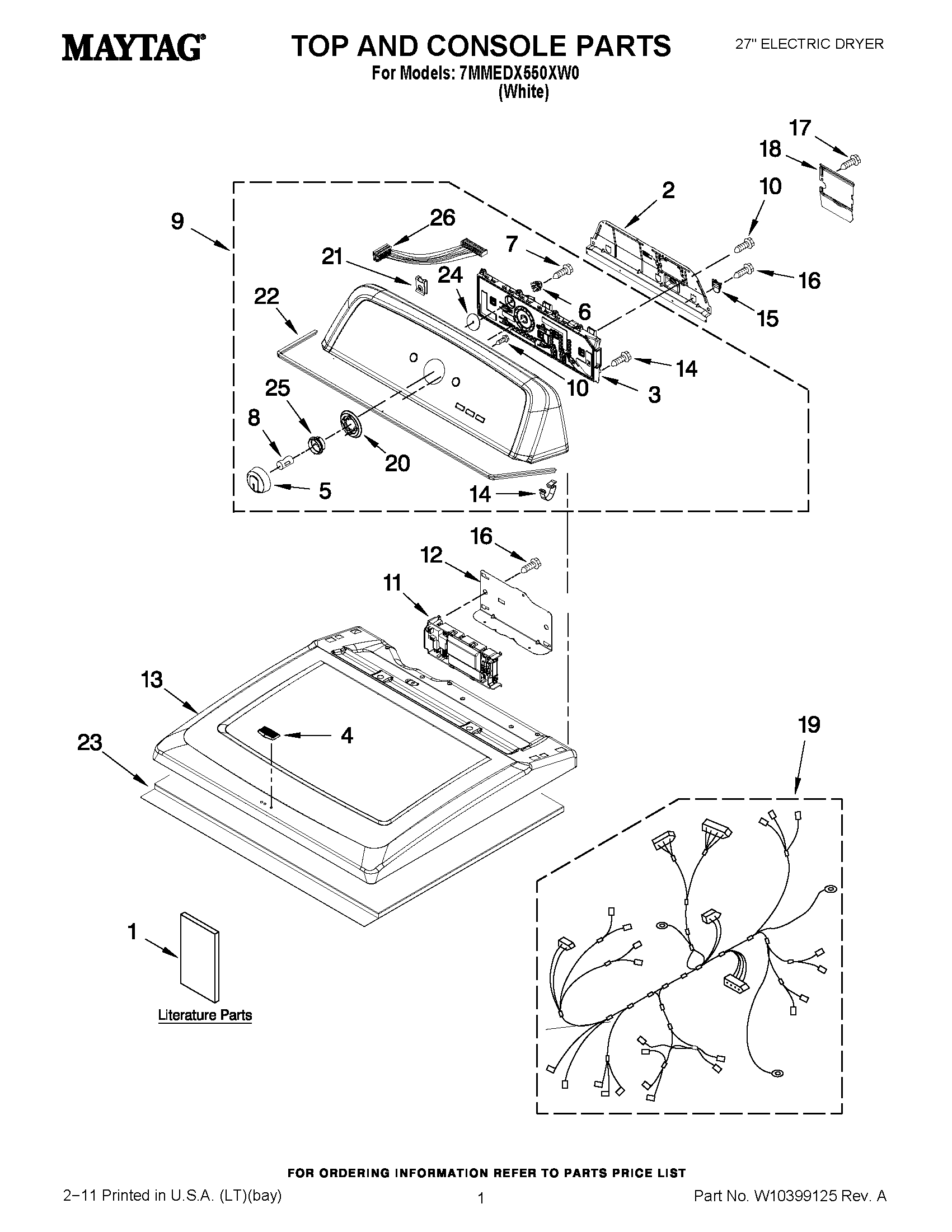

7MMEDX550XW0 01 – TOP AND CONSOLE PARTS

7MMEDX550XW0 01 – TOP AND CONSOLE PARTS

Written by

in

7MMEDX550XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10097018
1MAY W10331570
1MAY W10329762
1INSTALLATION, INSTRUCTION
2MAY W10096969
3USER INTERFACE ASSEMBLY
4MAY W10323735
5MAY W10251381
6TENSIONER, FASCIA
7MAY W10219342
8CLIP, SPRING
9MAY W10329789
10Screw
11MAY W10317638
12MAY W10271580
13MAY W10268730
14MAY 8312709
15PLUG, UPPER REAR PANEL
16SCREW
17Screw, 8-18 x 3/8
18MAY W10286180
19MAY W10331569
20MAY W10305134
21NUT, "U"
22MAY W10280079
23MAY W10123956
24SEAL, USER INTERFACE
25MAY W10326923
26MAY W10285945
