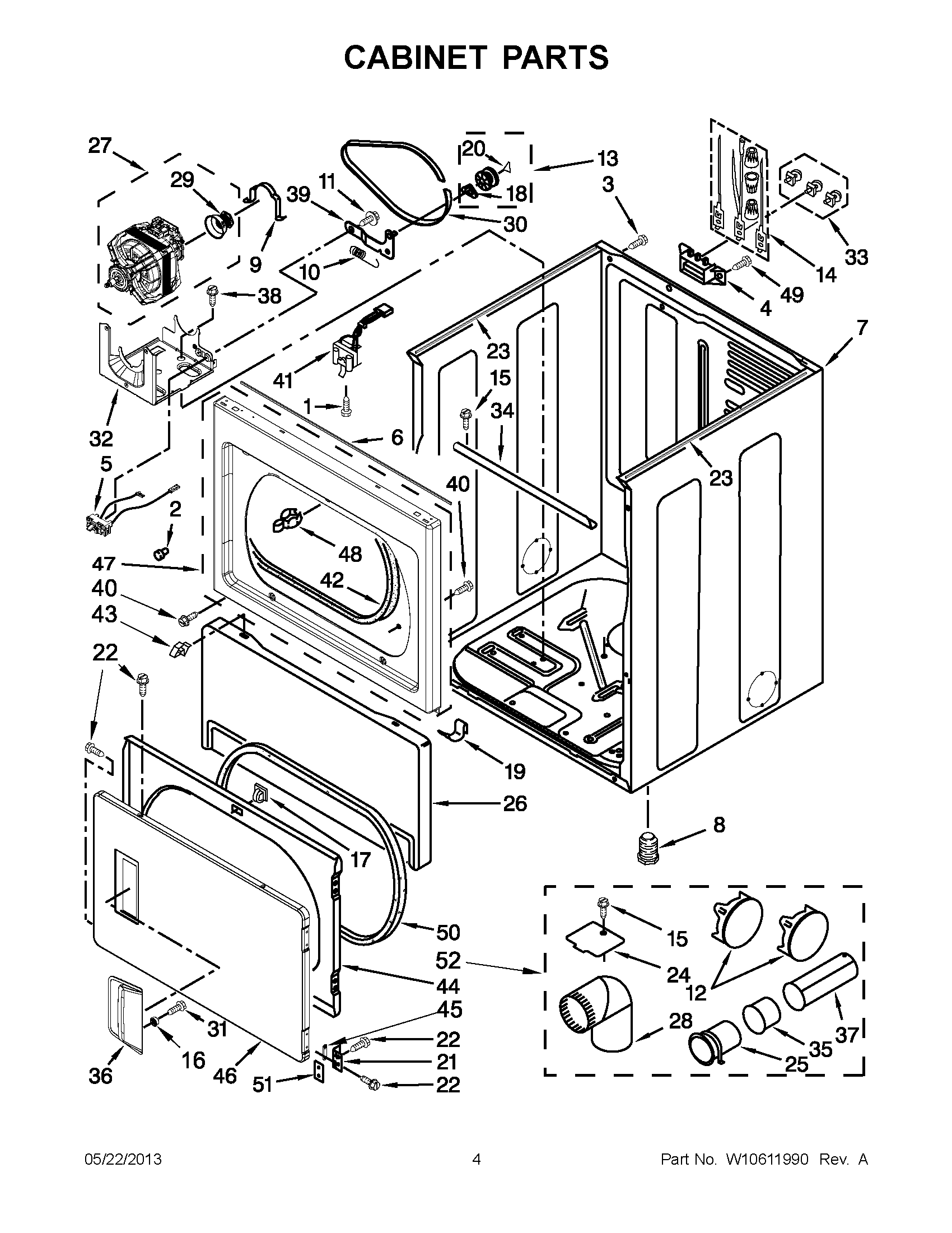

7MMEDX550XW1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	BUMPER
3	MAY 8533971
4	MAY 3397659
5	MAY W10411936
6	SEAL, SPILL GUARD
7	MAY W10547697
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	SCREW
16	MAY W10294344
17	MAY 3392538
18	WASHER, TRI RING
19	CLIP
20	MAY W10121334
21	Hinge & Pin Assembly (2)
22	MAY 342055
23	SEAL, FOAM
24	MAY 3394331
25	PIPE, EXHAUST (MEDIUM)
26	Toe Panel (Includes Item. 2) (White)
27	ASSEMBLY, MOTOR
28	MAY 49026
29	MAY W10460106
30	MAY W10112954
31	SCREW
32	MAY W10242878
33	MAY 279393
34	BRACKET, CABINET
35	MAY 8563750
36	MAY W10284182
37	PIPE, EXHAUST (LONG)
38	SCREW
39	ASSEMBLY, IDLER
40	SCREW
41	Switch, Door
42	MAY 3387242
43	RETAINER
44	MAY W10323061
45	PLUG, HINGE SCREW
46	MAY W10322551
47	Upper Front Panel (White)
48	MAY 696144
49	SCREW, 10-16 X 1/2
50	MAY 3390735
51	MAY 3390902
52	KIT, 4-WAY VENT
