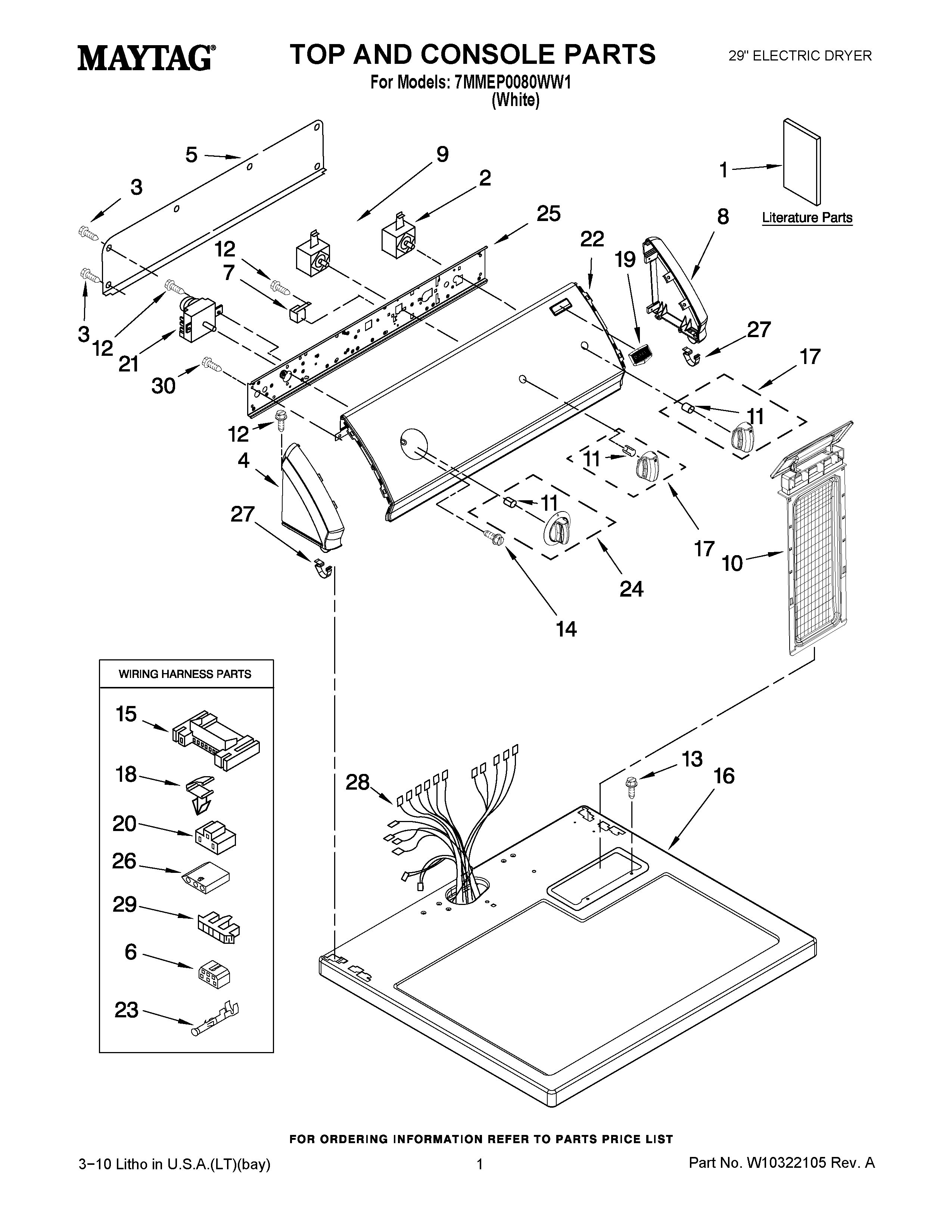

7MMEP0080WW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10305898
1	MAY W10305871
1	MAY W10276858
1	MAY W10275864
2	MAY 3398095
3	Screw
4	ENDCAP ASSEMBLY, LEFT HAND (WHITE)
5	MAY 8274261
6	Connector
7	MAY 694419
8	ENDCAP ASSEMBLY, RIGHT HAND (WHITE)
9	MAY 3399640
10	LINT SCREEN WHITE
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8559800
17	MAY 3956788
18	CLIP, HARNESS
19	MAY W10153170
20	Connector (PTS) Relay
21	TIMER, 60 HZ.
22	MAY W10270437
23	Terminal
24	MAY 8571409
25	MAY 8559772
26	MAY 3936144
27	MAY 8312709
28	MAY W10300886
29	Connector-Timer
30	SCREW
