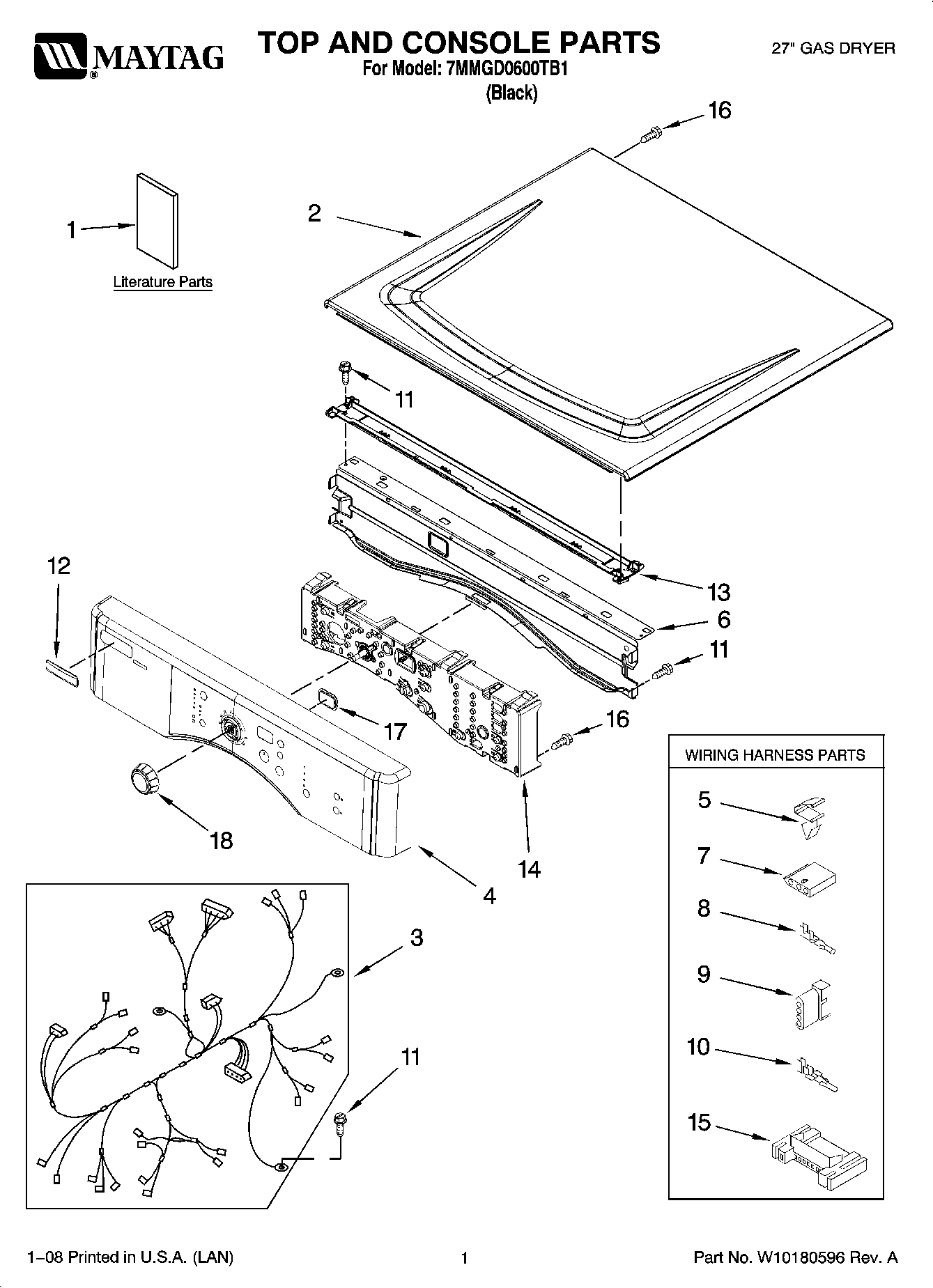

7MMGD0600TB1 01 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1	MAY W10155390
1	MAY W10133923
2	MAY W10129703
3	MAY W10110973
4	Panel, Console (Includes Illus. 15.) (Black)
5	CLIP, HARNESS
6	MAY 8565237
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	SCREW
12	MAY W10112569
13	MAY 8574968
14	MAY W10117417
15	CONNECTOR (MOTOR)
16	MAY 3400238
17	MAY W10117387
18	Knob, Assembly
