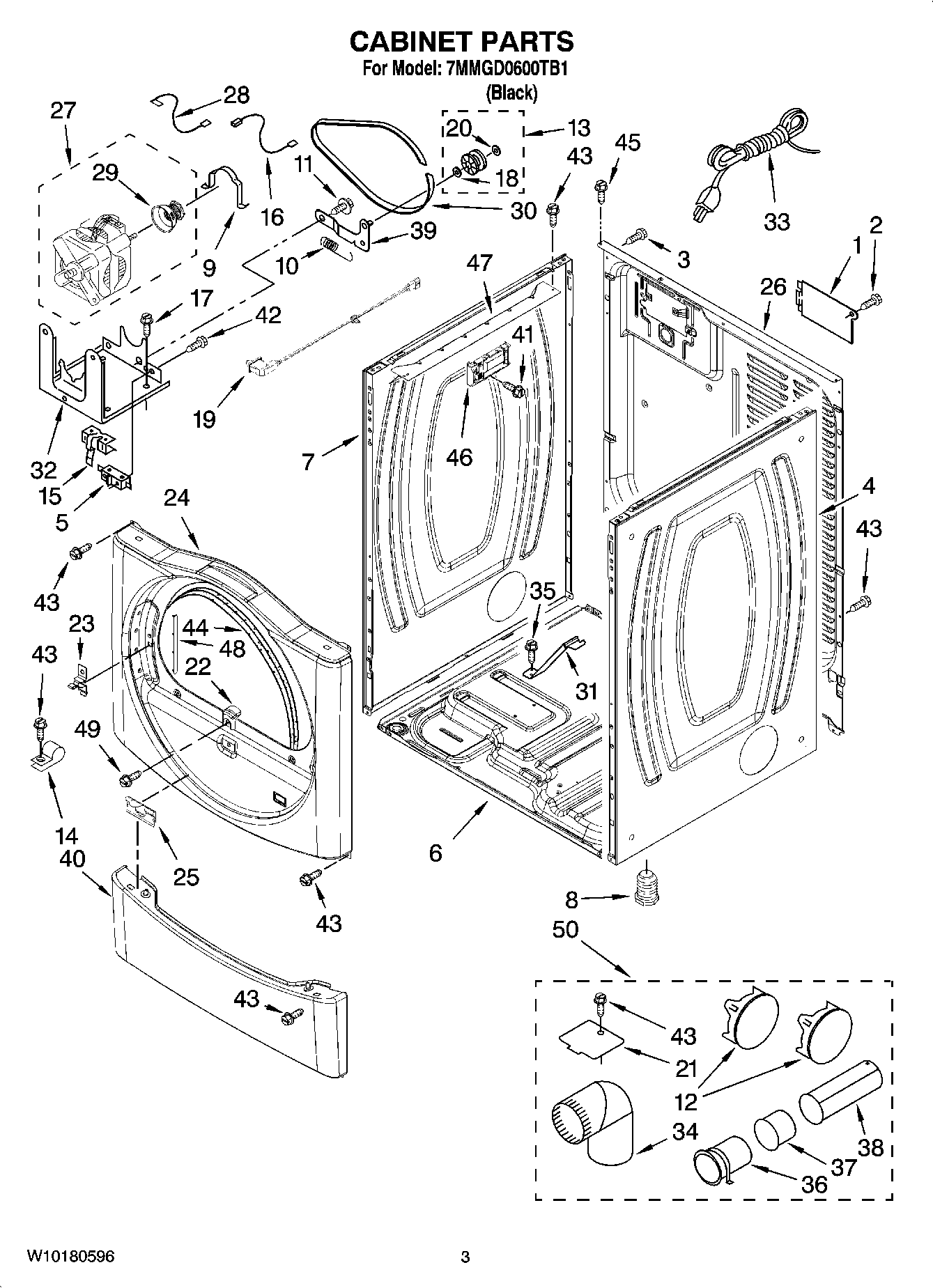

7MMGD0600TB1 02 – CABINET PARTS

Products

Position	Product
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY W10112963
5	MAY 3394881
6	MAY 8565046
7	MAY W10112962
8	MAY 279810
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 3388309
13	ASSEMBLY, PULLEY
14	MAY 3978776
15	MAY 8066120
16	MAY 3394081
17	SCREW
18	MAY 233520
19	MAY 8574875
20	MAY W10121334
21	MAY 8066115
22	MAY 8565083
23	STRIKE, DOOR
24	Front Panel (Includes Illus. 44) (Black)
25	MAY 8519459
26	MAY 8565059
27	Motor Assembly 60 HZ.
28	Wire, Jumper (Broken Belt Switch)
29	Pulley 60 HZ.
30	MAY W10112954
31	MAY 8529757
32	MAY 3387118
33	MAY 3401401
34	MAY 49026
35	Screw
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	MAY W10112964
41	MAY 8533971
42	Screw, 6-20 x 1-1/16
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	Control Board
47	Bracket, Control
48	Plug, Front Panel
49	SCREW
50	MAY 279820
