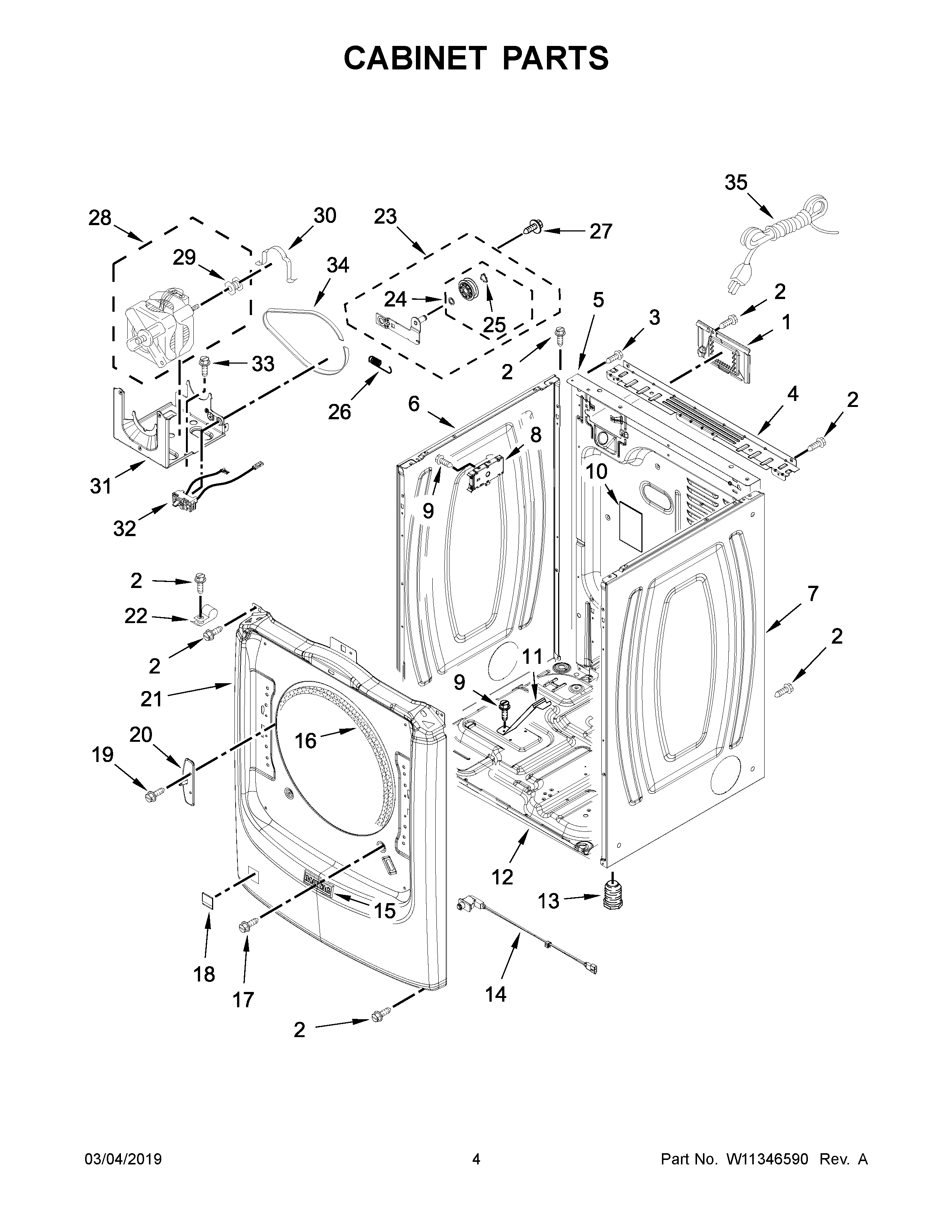

7MMGD6630HC0 03 – CABINET PARTS

Products

Position	Product
NI	KIT, 4-WAY VENT
NI	MAY 279810
1	MAY 8317339
2	SCREW
3	SCREW
4	MAY W10208382
5	MAY W10487430
6	MAY W11177570
7	MAY W11177571
8	MAY W11170772
9	Screw
10	MAY W10504381
11	MAY 8529757
12	MAY 8565046
13	MAY 3392100
14	MAY W10569114
15	BADGE, MAYTAG
16	MAY 3387242
17	SCREW
18	PLUG, FRONT PANEL (CHROME SHADOW)
19	MAY W10288126
20	MAY W10208250
21	PANEL, FRONT (CHROME SHADOW)
22	MAY 3978776
23	ASSEMBLY, IDLER
24	MAY W10468057
25	WASHER, TRI RING
26	MAY W10446781
27	SCREW
28	ASSEMBLY, MOTOR
29	Pulley, Motor
30	CLAMP, MOTOR MOUNT
31	MAY W10242878
32	SWITCH, BROKEN BELT
33	SCREW
34	MAY 3387610
35	CORD, POWER
