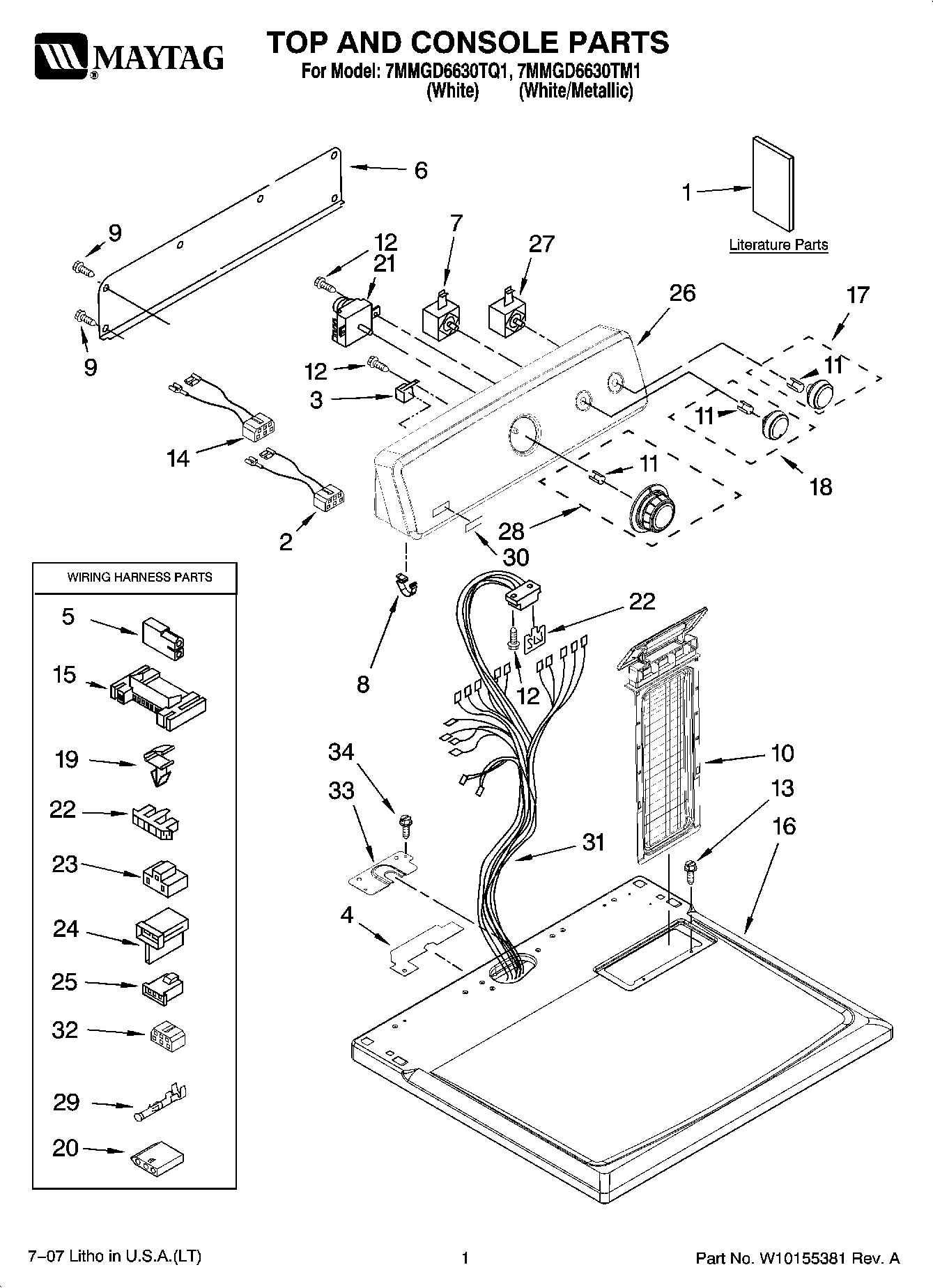

7MMGD6630TM1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10118198
1	MAY 8576793
1	MAY W10118199
2	MAY W10119078
3	MAY 694419
4	Seal-Harness
5	Plug, 2-Way Terminal
6	MAY W10112577
7	Switch, Wrinkle Guard
8	MAY 8312709
9	Screw
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY W10119077
15	CONNECTOR (MOTOR)
16	MAY W10112597
17	MAY W10110031
18	Knob, Control (3)
19	CLIP, HARNESS
20	MAY 3936144
21	MAY 3976584
22	Connector-Timer
23	Connector (PTS) Relay
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	Console & Control Panel Assembly (Includes, Illus. 8 & 30) (White / Metallic)
26	Console & Control Panel Assembly (Includes, Illus. 8 & 30) (White)
27	MAY 3977456
28	Timer-Knob Assembly
29	Terminal
30	MAY W10112569
31	MAY W10129558
32	Connector
33	MAY W10112578
34	MAY 359625
