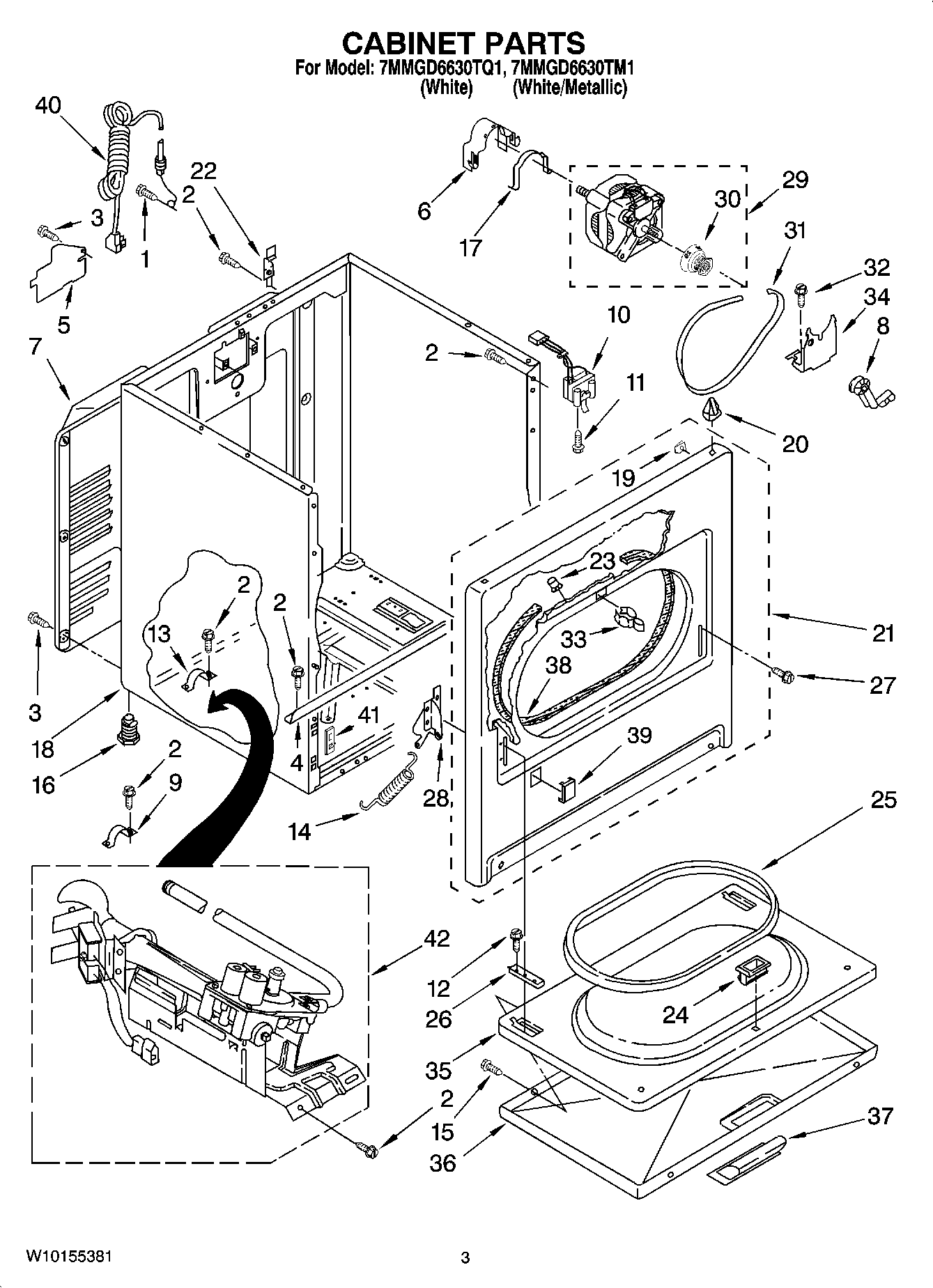

7MMGD6630TM1 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	IDLER ASSEMBLY
9	MAY 3980175
10	MAY 3406109
11	SCREW
12	MAY 694091
13	MAY 341029
14	MAY W10041960
15	SCREW
16	MAY 3392100
16	MAY 279810
17	MAY 660658
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	Panel Front (White)
22	Hinge, Top
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3390731
26	MAY 337189
27	MAY 342043
28	HINGE ASSEMBLY (LEFT SIDE)
28	HINGE ASSEMBLY (RIGHT SIDE)
29	MAY 8066206
30	Pulley, Motor
31	MAY 8066065
32	BOLT
33	MAY 696144
34	MAY 348780
35	MAY 695737
36	Door, Front (White)
37	Handle, Door (White)
38	MAY 3406129
39	MAY 3394975
40	MAY 344020
41	MAY 3394083
42	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
