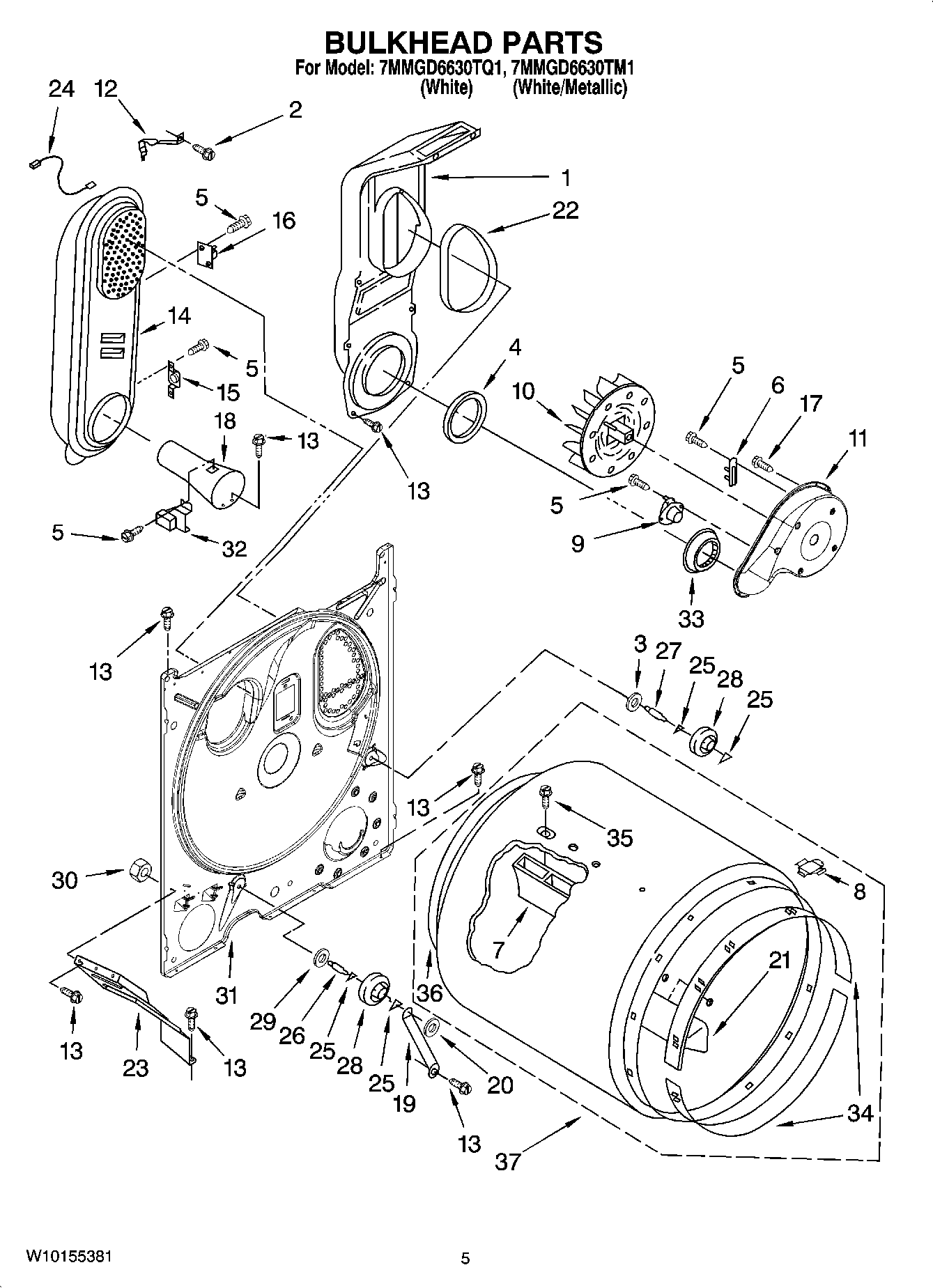

7MMGD6630TM1 03 – BULKHEAD PARTS

Products

PositionProduct
1MAY 348368
2Screw
3WASHER
4MAY 347139
5SCREW,8-18 X 3/8
7BAFFLE, DRUM (LONG)
8Plug, Drum Hole
9MAY 3387134
10Wheel, Blower
11MAY 8577230
12MAY 8066155
13SCREW
14BOX, HEATER (96C)
15Thermostat, 205 F (96C)
16MAY 280010
17SCREW
18FUNNEL, BURNER LIGHT
19MAY 3976434
20NUT, PUSH ON
21BAFFLE, DRUM (SHORT)
22MAY 339956
23BRACKET, BULKHEAD CHUTE
24WIRE JUMPER
25WASHER, TRI RING
26MAY 3399506
27MAY 3399507
28MAY 3397590
29WASHER
30Nut, 3/8-16
31MAY 3403491
32MAY 338906
33MAY 696302
34Bearing, Ring
35MAY W10109200
36MAY 3406130
37MAY 695587
