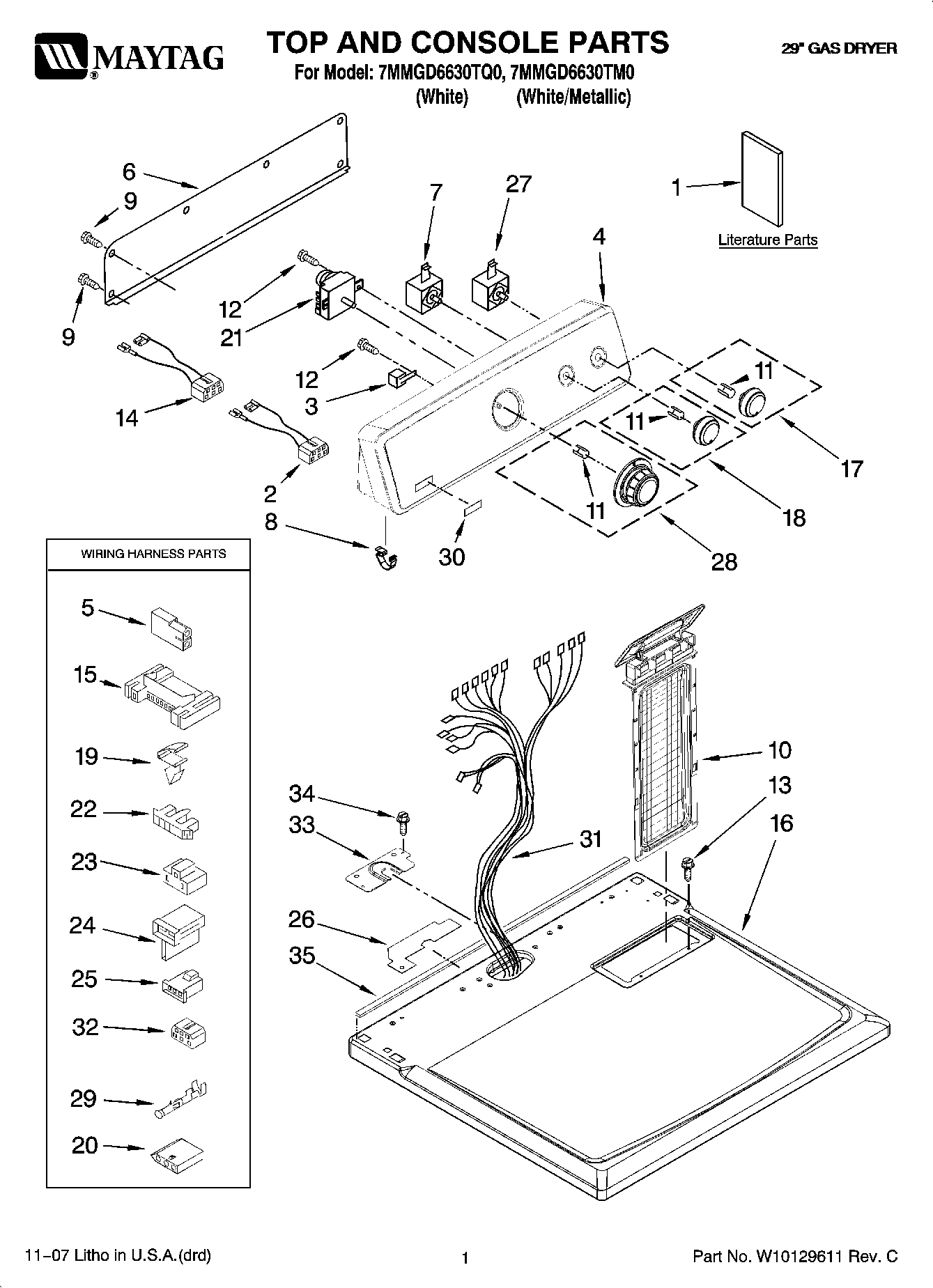

7MMGD6630TQ0 01 – TOP AND CONSOLE PARTSadmin2025-04-26T11:45:30+00:007MMGD6630TQ0 01 – TOP AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10118199 |
| 1 | MAY 8576793 |
| 1 | MAY W10118198 |
| 2 | MAY W10119078 |
| 3 | MAY 694419 |
| 4 | Console & Control Panel Assembly (Includes, Illus. 8 & 30) (White) |
| 4 | Console & Control Panel Assembly (Includes, Illus. 8 & 30) (White / Metallic) |
| 5 | Plug, 2-Way Terminal |
| 6 | Panel, Rear |
| 7 | Switch, Wrinkle Guard |
| 8 | MAY 8312709 |
| 9 | Screw |
| 10 | Screen, Lint |
| 11 | CLIP, SPRING |
| 12 | MAY 8533971 |
| 13 | SCREW |
| 14 | MAY W10119077 |
| 15 | CONNECTOR (MOTOR) |
| 16 | MAY W10112597 |
| 17 | MAY W10110031 |
| 18 | Knob, Control (3) |
| 19 | CLIP, HARNESS |
| 20 | MAY 3936144 |
| 21 | MAY 3976584 |
| 22 | Connector-Timer |
| 23 | Connector (PTS) Relay |
| 24 | CONNECTOR, 2-POSITION (GAS VALVE) |
| 25 | MAY 3403498 |
| 26 | MAY W10118608 |
| 27 | MAY W10156101 |
| 28 | Timer-Knob Assembly |
| 29 | Terminal |
| 30 | MAY W10112569 |
| 31 | MAY W10119079 |
| 32 | Connector |
| 33 | MAY 8565981 |
| 34 | MAY 359625 |
| 35 | Seal, Foam Console Bracket |
