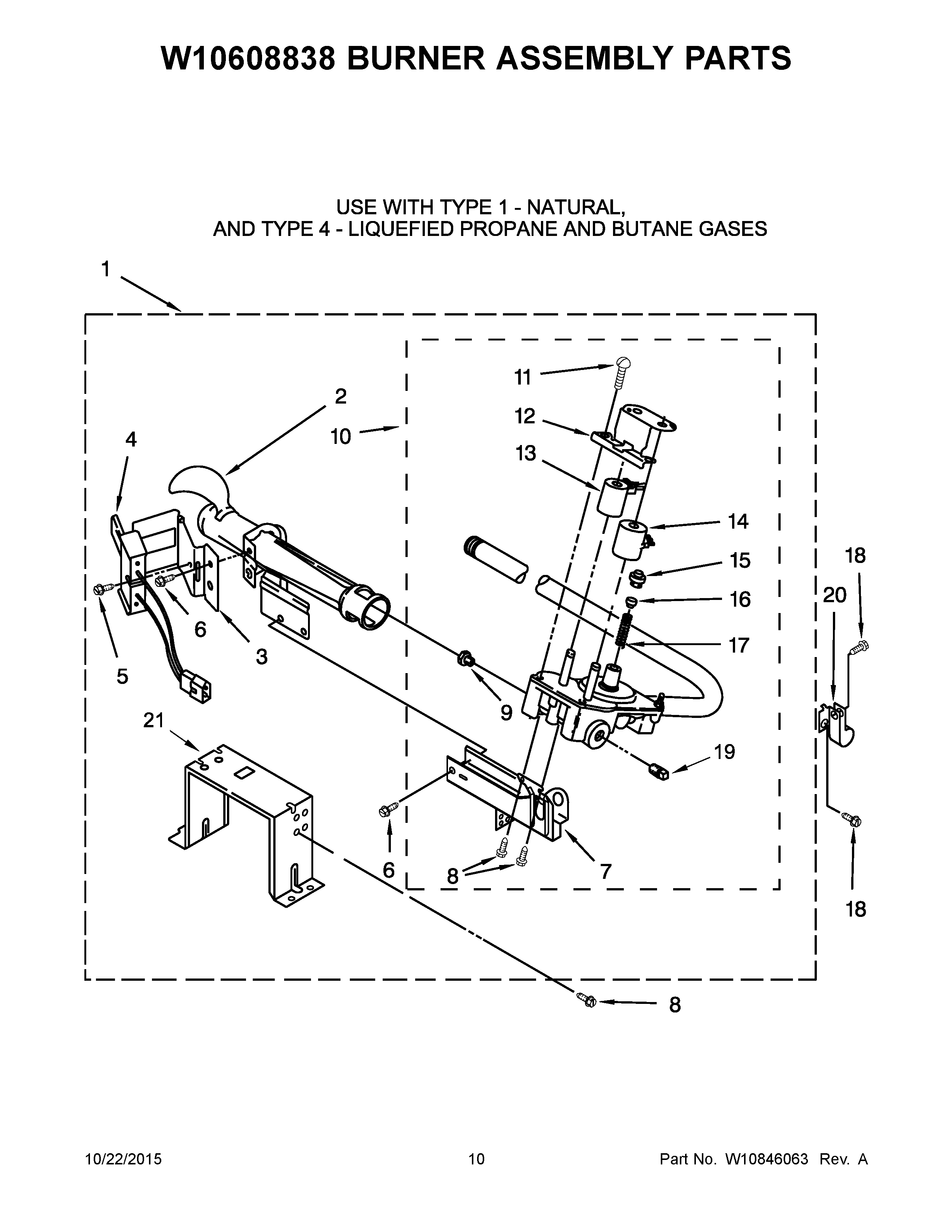

7MMGDB835EW0 06 – W10608838 BURNER ASSEMBLY PARTS

7MMGDB835EW0 06 – W10608838 BURNER ASSEMBLY PARTS

Written by

in

7MMGDB835EW0 06 – W10608838 BURNER ASSEMBLY PARTS

Products

PositionProduct
NIConversion Kit (Type (1) to Type (4) LPG).
NILINER (NOT A SERVICEABLE PART)
1BURNER ASSEMBLY
2MAY 688617
3MAY 694298
4MAY 686590
5MAY 3393909
6SCREW
7MAY 3389871
8SCREW
9ORIFICE, BURNER (TYPE 1 (NATURAL))
9BOrifice, Burner (Type 4 (Propane))
9AOrifice, Burner (Type 4 (Butane))
10VALVE, GAS 60 HZ. (COMPLETE)
11SCREW, COIL
12MAY 694538
13MAY 694540
14COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15MAY 694424
16MAY 694423
17MAY 694422
18SCREW
19MAY 239822
20MAY 3978776
21MAY 3389889
22MAY W10641312
