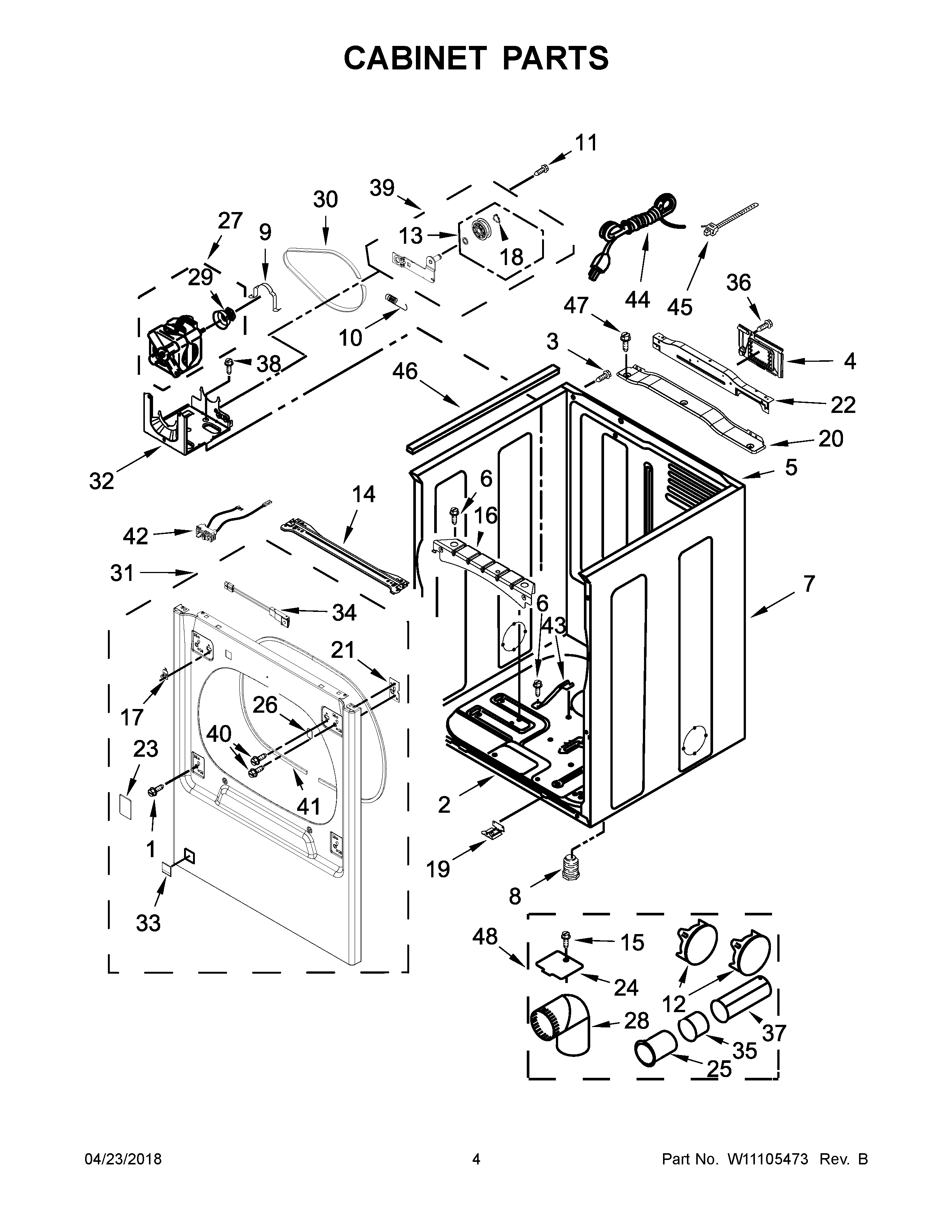

7MMGDB835EW2 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	MAY W10613683
3	MAY W10636208
4	MAY 8317339
5	MAY W10824895
6	Screw
7	PANEL, SIDE (WHITE (WITH CUTOUT))
7A	CABINET (WHITE (WITHOUT CUTOUT))
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	MAY 49252
13	MAY W10468057
14	MAY W10722502
15	MAY W10718190
16	MAY W10632348
17	MAY W10778071
18	WASHER, TRI RING
19	MAY W10632347
20	BULKHEAD BRACKET, REAR PANEL (WHITE)
21	MAY W10596959
22	MAY W10622391
23	PLUG, HINGE (WHITE)
24	MAY 3394331
25	PIPE, EXHAUST (MEDIUM)
26	MAY W10111888
27	MAY W10806761
28	MAY 49026
29	MAY W10669447
30	MAY W10610886
31	MAY W10861063
32	MAY W10578053
33	PLUG, FRONT PANEL (WHITE)
34	MAY W10459026
35	MAY 8563750
36	MAY W10567155
37	PIPE, EXHAUST (LONG)
38	SCREW
39	ASSEMBLY, IDLER
40	MAY 3400805
41	MAY 3387242
42	SWITCH, BROKEN BELT
43	MAY 8529757
44	CORD, POWER
45	CABLE TIE
46	MAY W10316616
47	SCREW
48	KIT, 4-WAY VENT
