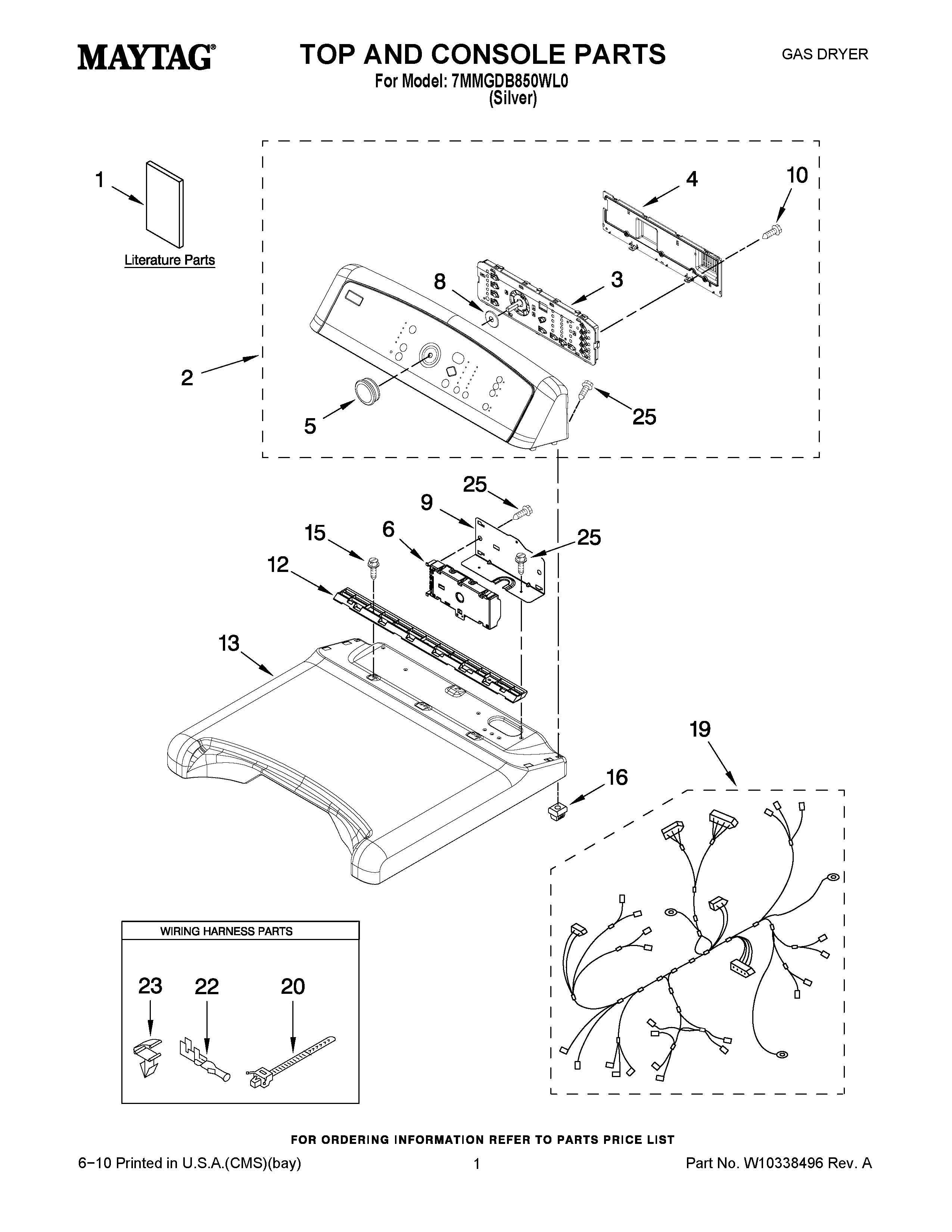

7MMGDB850WL0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10201177
1	MAY W10156734
2	MAY W10252469
3	User Interface
4	COVER, REAR
5	MAY W10051126
6	MAY W10111620
8	SEAL, UI
9	MAY 8563853
10	Screw, 6-19 x 3/64
12	MAY W10110295
13	MAY W10283289
15	Screw, 8-18 x 3/4
16	SCREW, GROMMET
19	MAY W10319803
20	MAY 3391018
22	Terminal
23	CLIP, HARNESS
25	Screw
