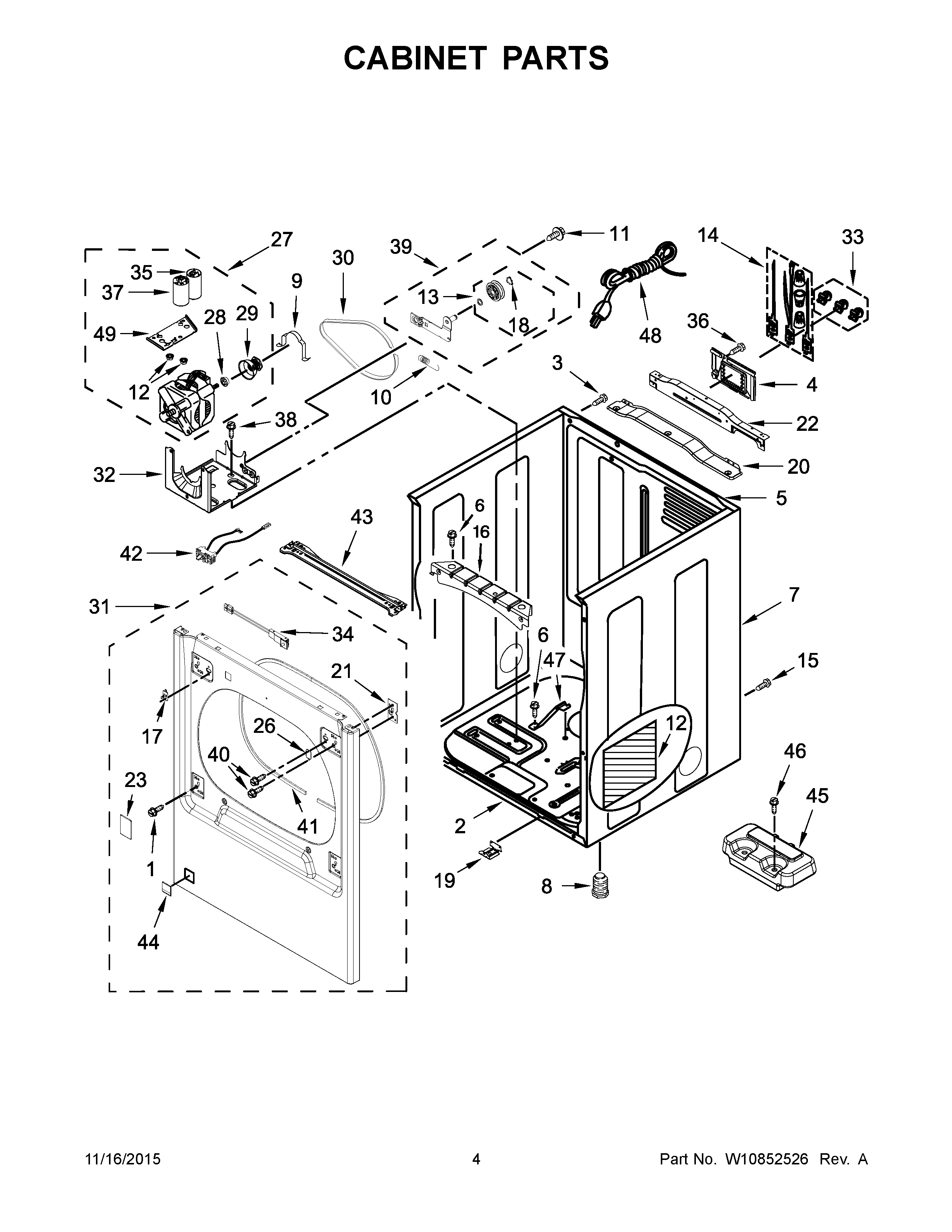

7MMGDB855EC1 03 – CABINET PARTS

Products

Position	Product
NI	KIT, 4-WAY VENT
NI	MAY 279810
1	MAY 342055
2	MAY W10613683
3	MAY W10636208
4	MAY 8317339
5	MAY W10824895
6	Screw
7	CABINET (CHROME SHADOW (WITH CUTOUT))
7A	PANEL, SIDE (CHROME SHADOW (WITHOUT CUTOUT))
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	MAY W10791482
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	SCREW
16	MAY W10632348
17	MAY W10775540
18	WASHER, TRI RING
19	MAY W10632347
20	BULKHEAD BRACKET, REAR PANEL (CHROME SHADOW)
21	MAY W10596959
22	MAY W10622391
23	PLUG, HINGE (CHROME SHADOW)
24	MAY 3394331
25	NUT
26	MAY W10111888
27	MAY W10801127
28	MAY 3393657
29	PULLEY, MOTOR
30	MAY W10610886
31	MAY W10777208
32	MAY W10578053
33	MAY 279393
34	MAY W10459026
35	CAPACITOR, MOTOR START
36	MAY W10567155
37	CAPACITOR, MOTOR RUN
38	SCREW
39	ASSEMBLY, IDLER
40	MAY 3400805
41	MAY 3387242
42	SWITCH, BROKEN BELT
43	MAY W10722502
44	PLUG, FRONT PANEL (CHROME SHADOW)
45	MAY W10622383
46	MAY W10660592
47	MAY 8529757
48	CORD, POWER
49	BRACKET ASSEMBLY
