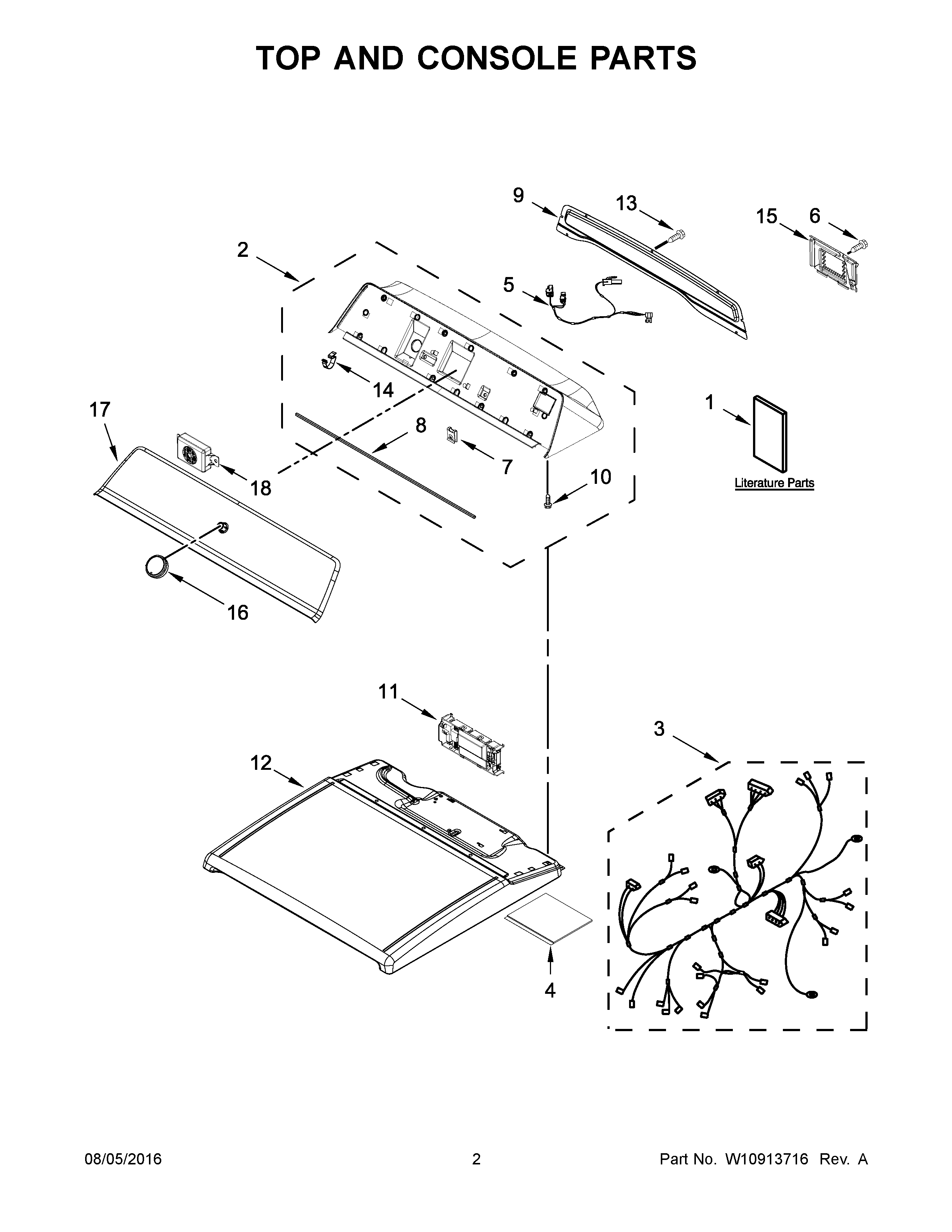

7MMGDB855EC2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1C	MAY W10809789
1A	MAY W10807511
1	MAY W10807523
1B	MAY W10777449
2	ASSEMBLY, CONSOLE (CHROME SHADOW)
3	WIRING HARNESS
4	MAY W10836097
5	MAY W10788429
6	MAY 489470
7	NUT, "U"
8	MAY W10726632
9	MAY W10622402
10	MAY W10219342
11	MAY W10793300
12	MAY W10681117
13	MAY 9740849
14	MAY 8312709
15	MAY W10316167
16	ASSEMBLY, CONTROL KNOB (CHROME)
17	MAY W10740703
18	ASSEMBLY, SPEAKER
