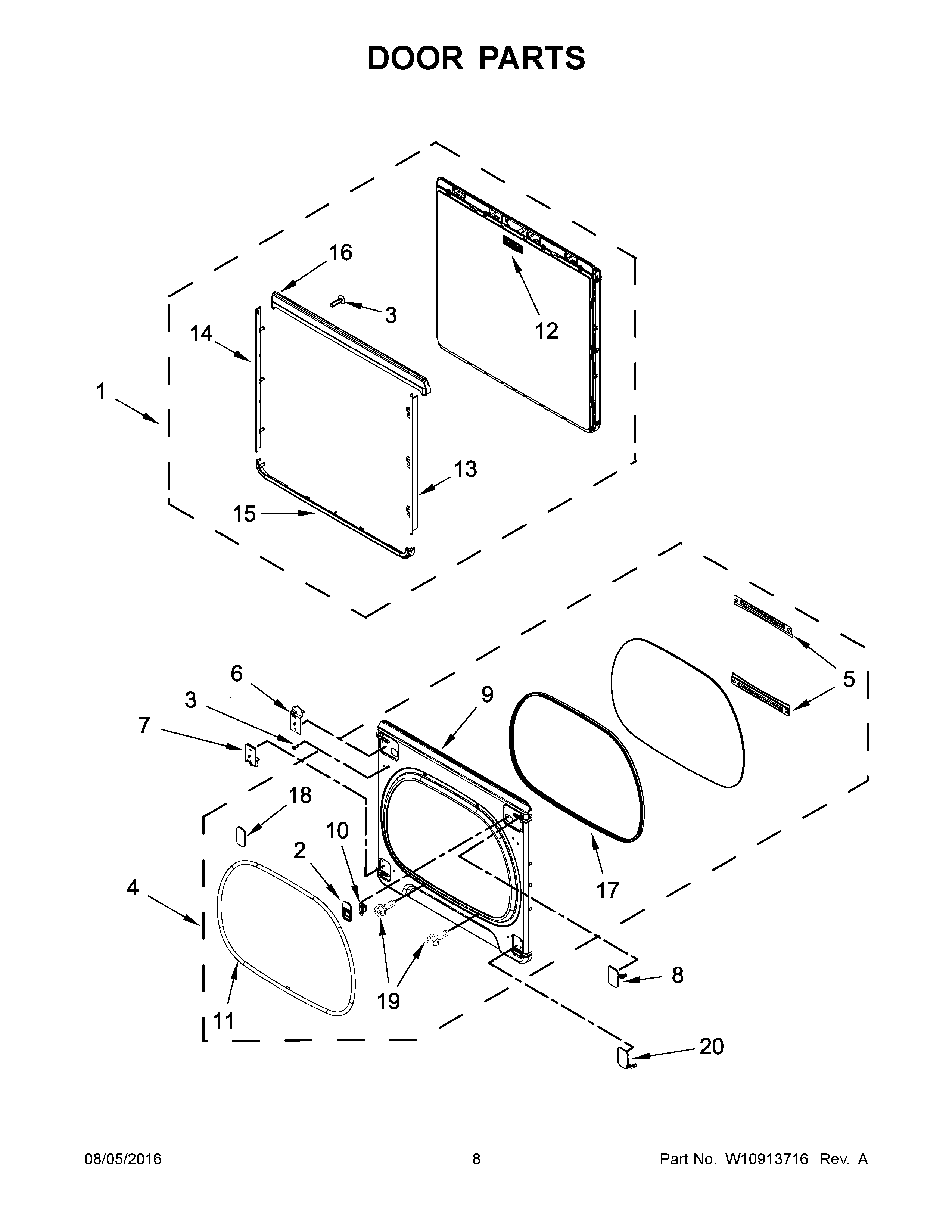

7MMGDB855EC2 05 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, OUTER DOOR (CHROME SHADOW)
2BEZEL, DOOR CATCH (CHROME SHADOW)
3Screw
4ASSEMBLY, INNER DOOR (CHROME SHADOW)
5MAY W10621182
6MAY W10783754
7MAY W10783755
8HINGE COVER, TOP (CHROME SHADOW)
9MAY W10614999
10MAY W10610880
11MAY W10763835
12BADGE
13MAY W10631398
14MAY W10631399
15MAY W10631400
16MAY W10608739
17MAY W10726214
18COVER, DOOR CATCH (CHROME SHADOW)
19MAY 342055
20HINGE COVER, BOTTOM (CHROME SHADOW)
