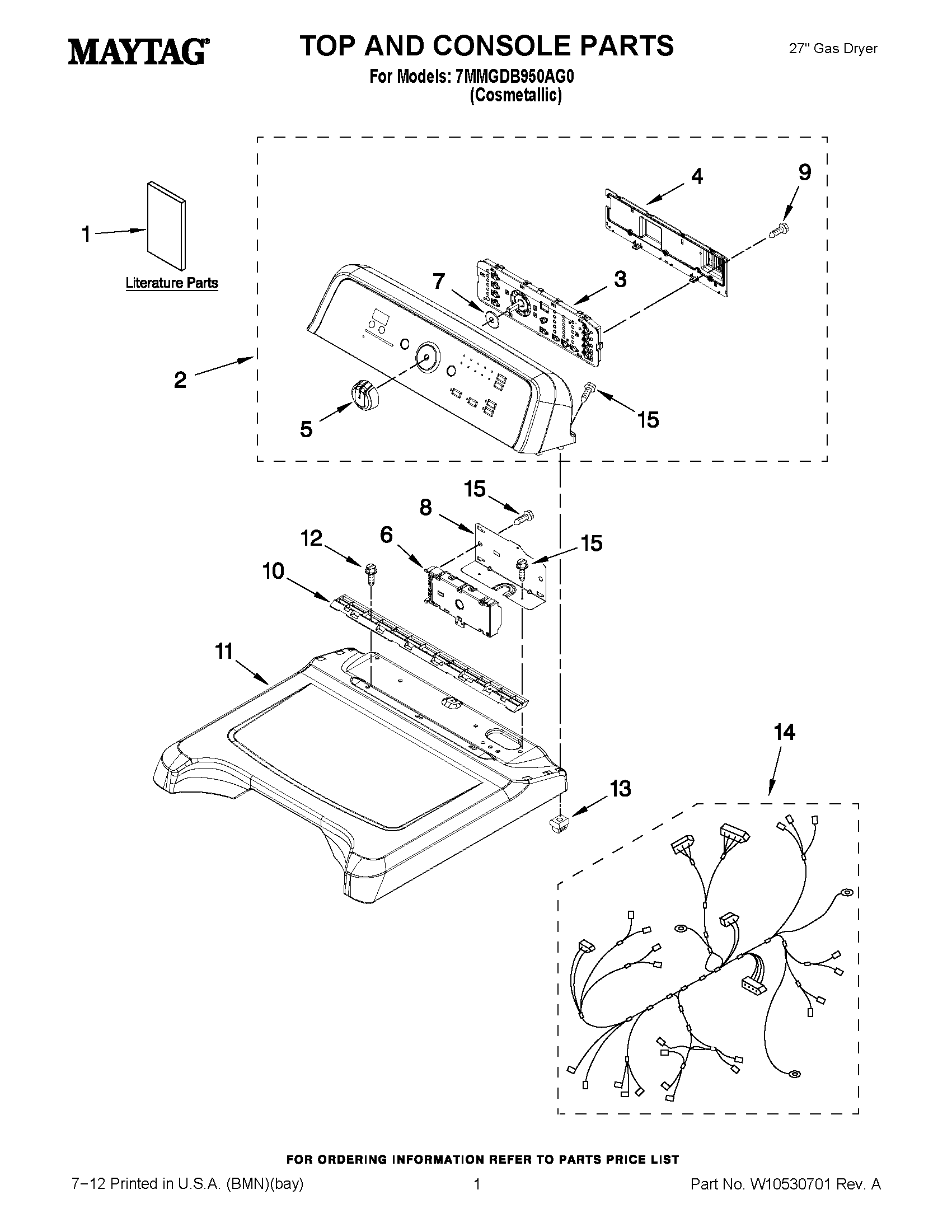

7MMGDB950AG0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTIONS
1MAY W10526992
1MAY W10393006
2MAY W10496922
3ASSEMBLY, USER INTERFACE
4COVER, REAR
5MAY W10338554
6MAY W10432257
7SEAL, UI
8MAY 8563853
9Screw, 6-19 x 3/64
10MAY 8558863
11TOP (GRANITE)
12Screw, 8-18 x 3/4
13SCREW, GROMMET
14HARNESS, WIRING MAIN
15Screw
