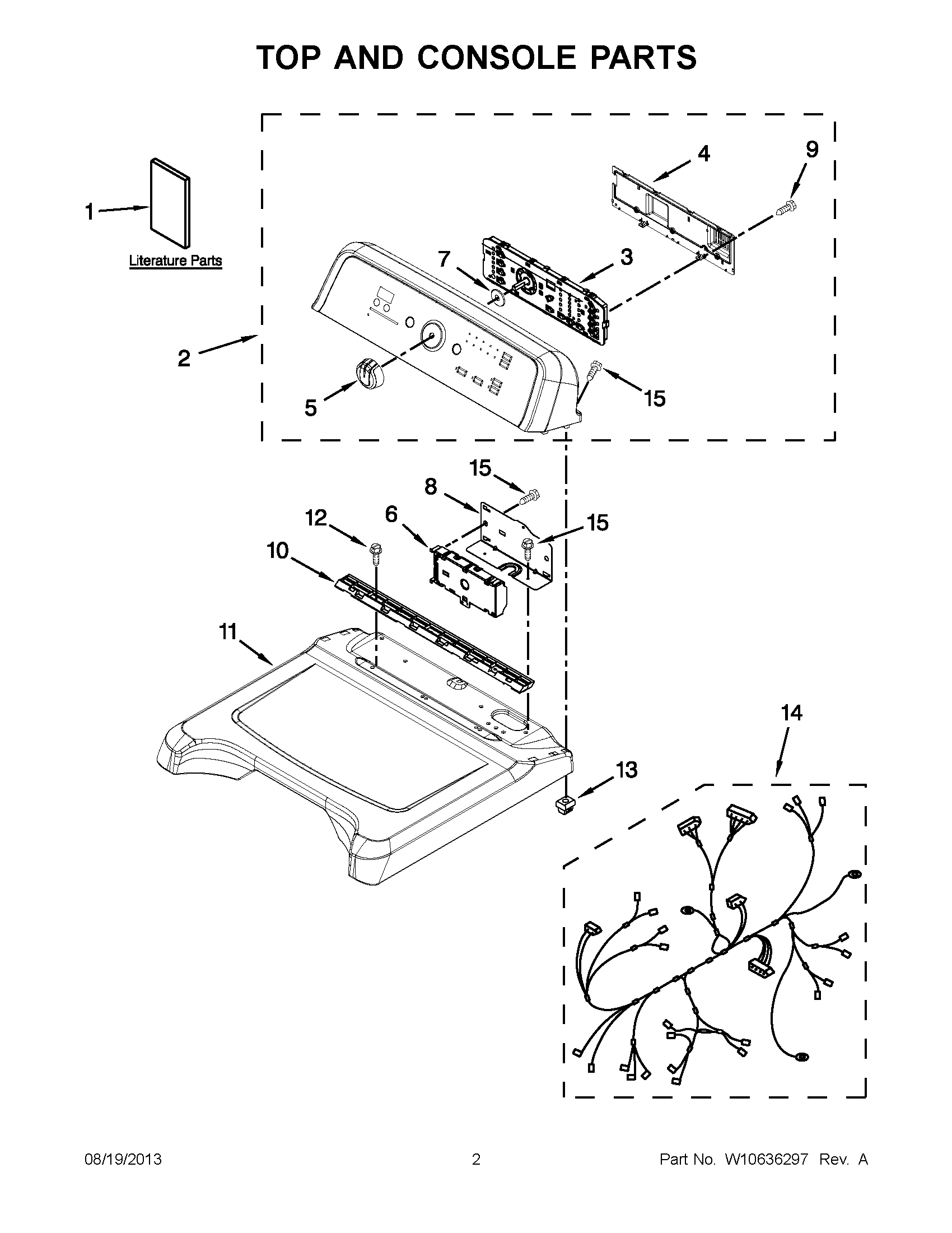

7MMGDB950AG1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10393006
1INSTALLATION, INSTRUCTIONS
1MAY W10526992
2MAY W10496922
3ASSEMBLY, USER INTERFACE
4COVER, REAR
5MAY W10338554
6MAY W10432257
7SEAL, UI
8MAY W10613375
9Screw, 6-19 x 3/64
10MAY 8558863
11TOP (GRANITE)
12SCREW
13SCREW, GROMMET
14HARNESS, WIRING MAIN
15Screw
