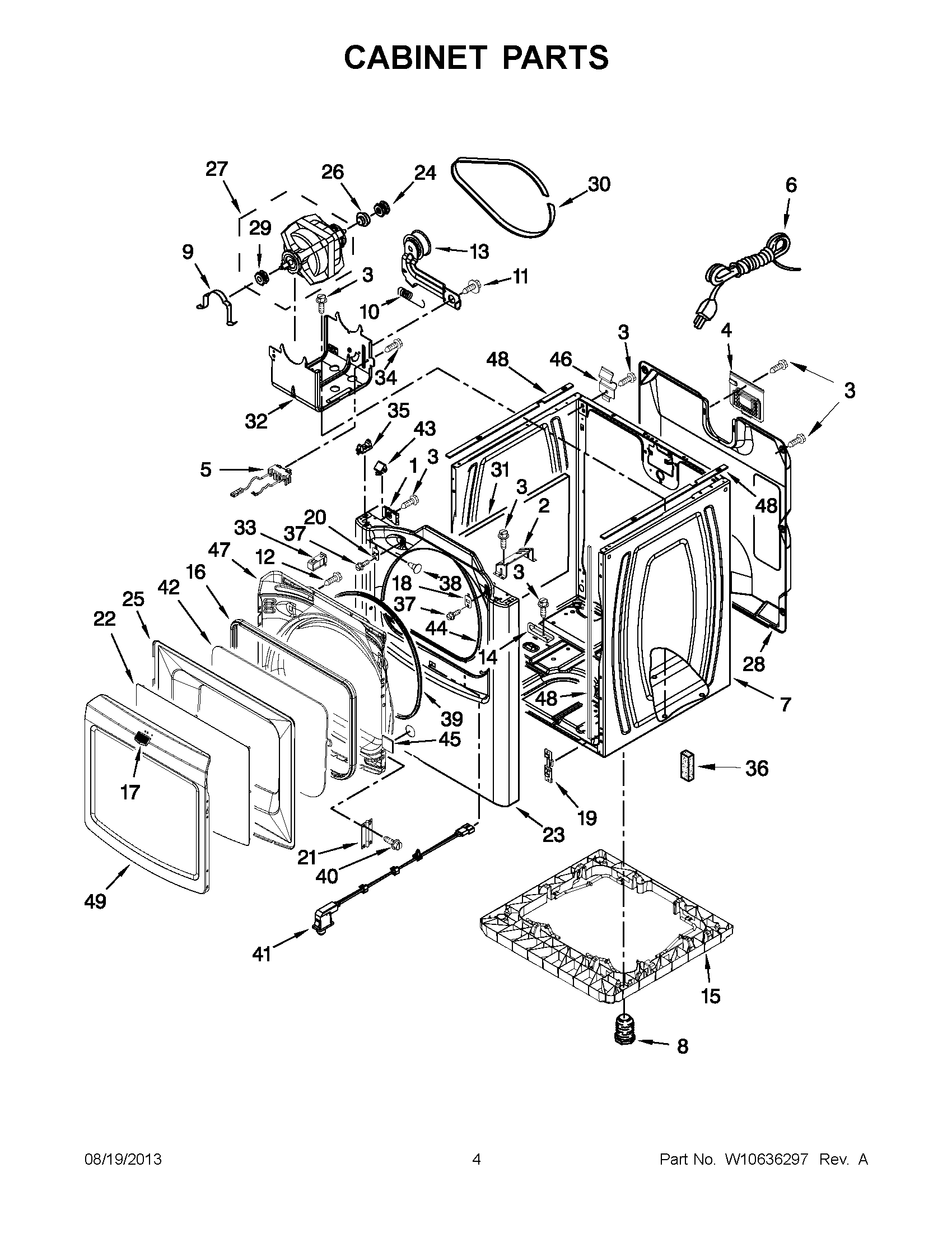

7MMGDB950AG1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Clip, Ground
2	MAY 8544753
3	SCREW
4	MAY 8558833
5	MAY W10411937
6	MAY 344020
7	CABINET (INCLUDES ITEM 51) (COSMETALLIC)
8	MAY W10363894
9	MAY 660658
10	MAY W10446781
11	SCREW
12	SCREW, 10-16 X 1/2
13	IDLER ASSEMBLY
14	BRACKET, PIPE
15	RISER, FULL
16	MAY W10111859
17	MAY W10492808
18	MAY W10111888
19	MAY 3394083
20	Strike, Door
21	HINGE ASSEMBLY (COSMETALLIC)
22	MAY W10369542
23	PANEL, FRONT (COSMETALLIC)
24	MAY W10136930
25	BEZEL, DOOR
26	MAY 3393657
27	MAY W10460374
28	MAY W10140148
29	MAY W10139247
30	MAY W10136934
31	MAY W10123956
32	MAY W10308685
33	MAY W10111905
34	SCREW
35	LOCATOR, SNAP-DOWN
36	MAY 3350013
37	MAY 3400805
38	MAY W10144494
39	MAY W10221653
40	MAY 342055
41	MAY W10350909
42	MAY W10111857
43	Lock-Top Front (2)
44	MAY W10044490
45	PLUG, FRONT PANEL (COSMETALLIC)
46	MAY 238088
47	DOOR, INNER (GRANITE)
48	SEAL, FOAM
49	DOOR, OUTER (GRANITE)
