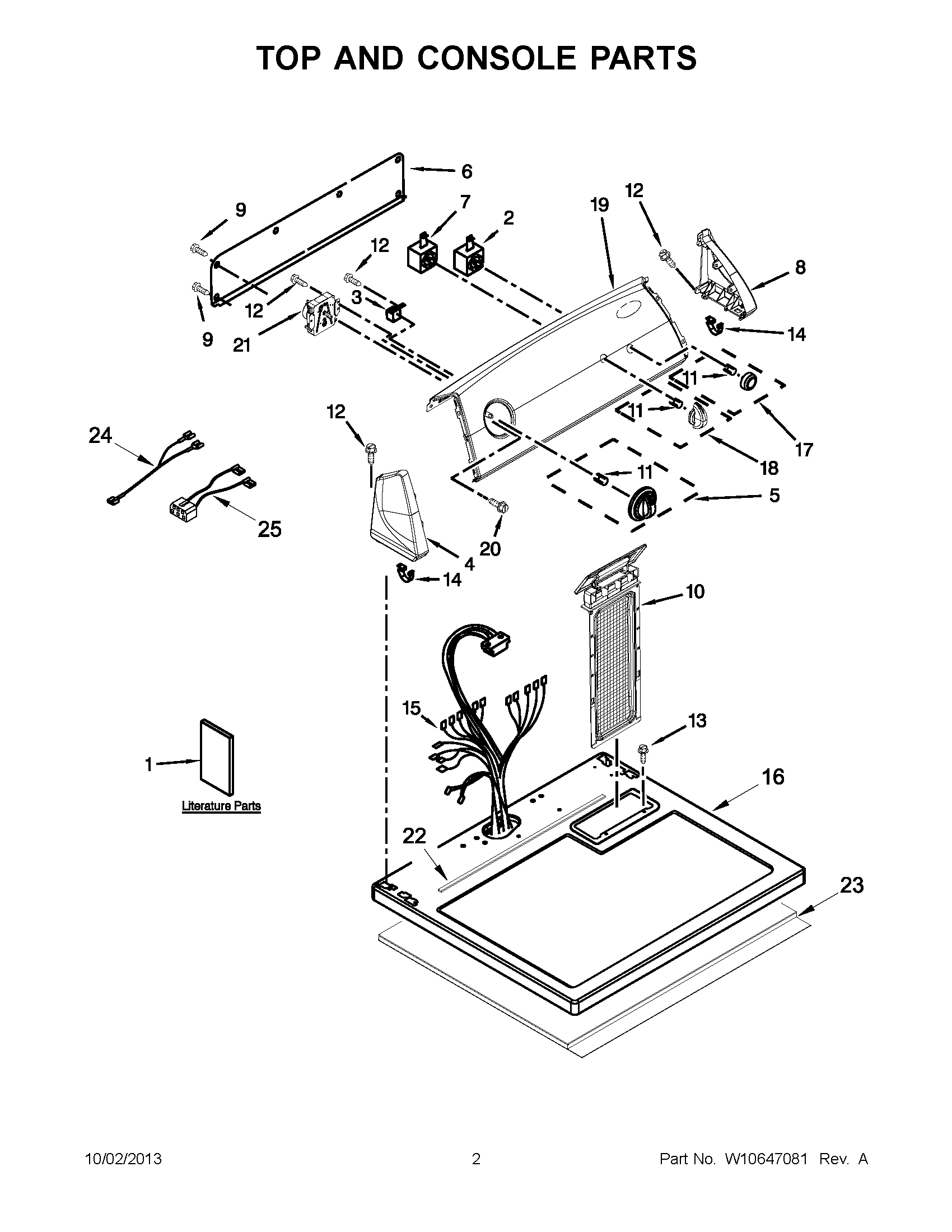

7MMGDC300BW0 02 – TOP AND CONSOLE PARTS

7MMGDC300BW0 02 – TOP AND CONSOLE PARTS

Written by

in

7MMGDC300BW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1USE AND CARE GUIDE
1INSTRUCTIONS, INSTALLATION
2WP3977456 Whirlpool Start Switch
3WP694419 Whirlpool Buzzer Adjuster
4WPW10251358 Whirlpool Endcap
5WPW10327522 Whirlpool Knob Assembly
6W10103406 Whirlpool Rear Panel
73405152 Whirlpool Switch Assembly
8WPW10251355 Whirlpool End Cap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP8312709 Whirlpool Endcap Clip
15Harness, Wiring
16WPW10225059 Whirlpool Top
17W10034770 Whirlpool Knob Assembly
18WPW10327523 Whirlpool Knob
19CONSOLE (WHITE)
20WP3390631 Whirlpool Screw
21WP3977678 Whirlpool Timer Assembly
22W10316616 Whirlpool Seal
23W10123956 Whirlpool Sound Absorber
24JUMPER, PUSH-TO-START
253401695 Whirlpool Wire Harness
