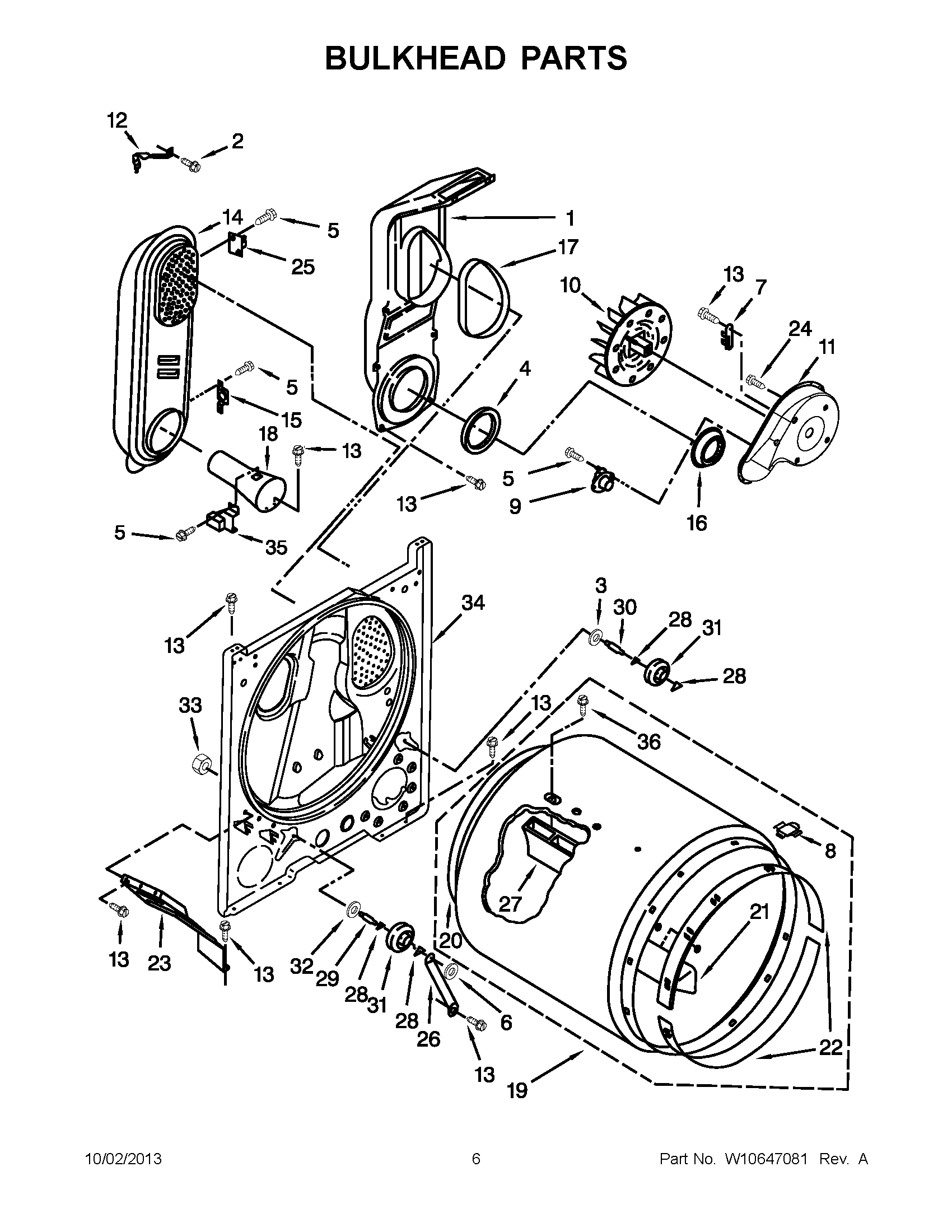

7MMGDC300BW0 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP90296 Whirlpool Clip
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3404413 Whirlpool Plug
9	WP3387134 Whirlpool Dryer Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	SCREW
14	279980 Whirlpool Box
15	W11050897 Whirlpool Dryer High Limit Thermostat
16	W11233063 Whirlpool Shield Assembly
17	SEAL
18	WP8066049 Whirlpool Funnel Assembly
19	W10899578 Whirlpool Dryer Drum Assembly
20	W10612022 Whirlpool Felt Seal
21	WP3403636 Whirlpool Drum Baffle
22	279441 Whirlpool Front Bearing Ring
23	W11398682 Whirlpool Bracket
24	WP488729 Whirlpool Refrigerator Door Screw
25	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
26	W11684613 Whirlpool Bracket
27	BAFFLE-DRM
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	SHAFT SUPPORT ROLLER DRYER
30	SHAFT SUPPORT ROLLER DRYER
31	WPW10314173 Whirlpool Dryer Drum Support Wheel
32	WP348197 Whirlpool Washer Assembly
33	W11229607 Whirlpool Nut
34	W11178667 Whirlpool Bulkhead Assembly
35	WP338906 Whirlpool Dryer Gas Sensor
36	W10853898 Whirlpool Screw
