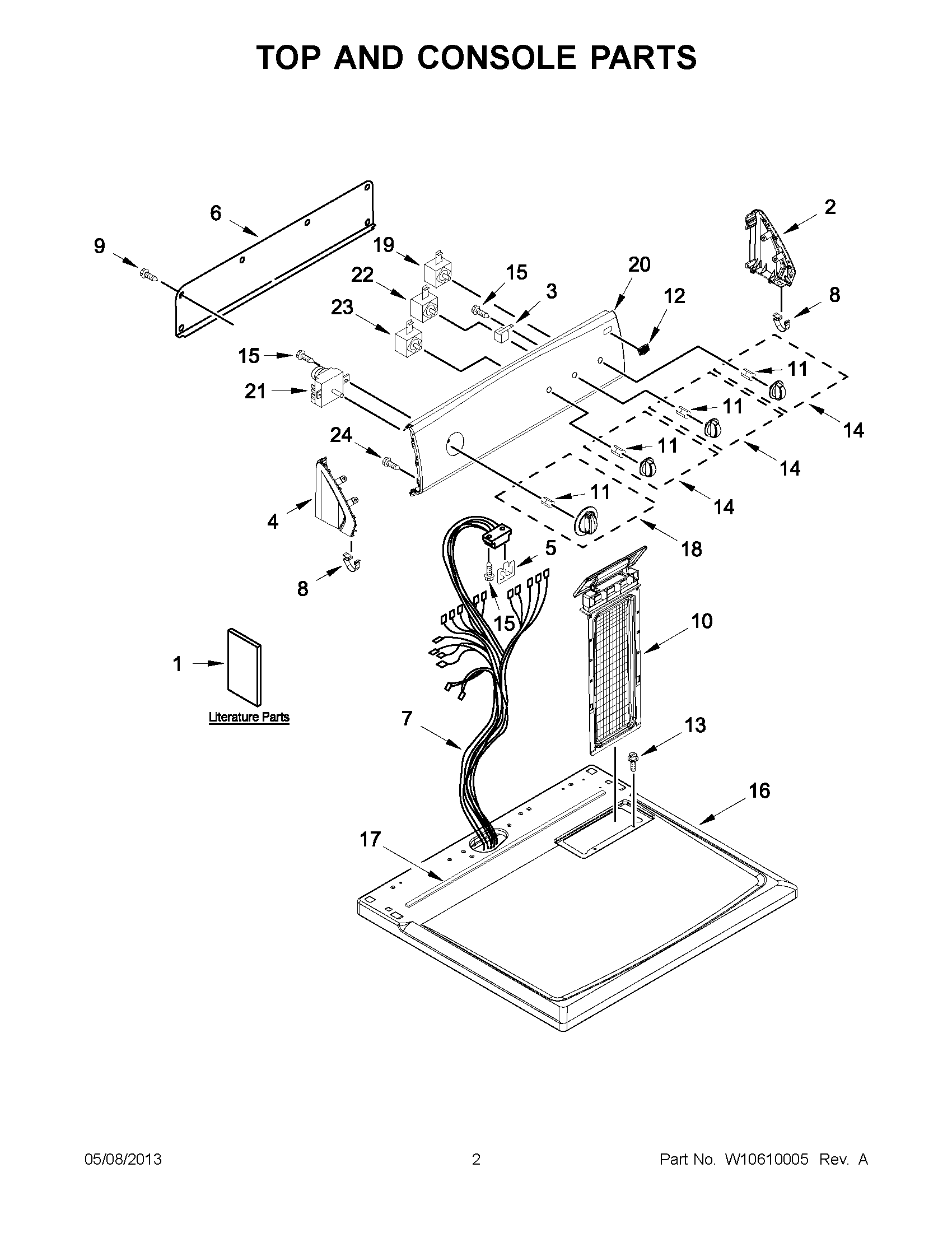

7MMGDC300YW3 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10329763
1	MAY W10337814
1	MAY W10368976
2	MAY W10251355
3	MAY 694419
4	MAY W10251358
5	MAY W10476828
6	MAY 8274261
7	MAY W10328032
8	MAY 8312709
9	Screw
10	Screen, Lint
11	CLIP, SPRING
12	MAY W10199708
13	SCREW
14	MAY W10327523
15	MAY 3348629
16	MAY W10225059
17	MAY W10316616
18	MAY W10327522
19	MAY W10117655
20	CONSOLE PANEL & BRACKET ASSEMBLY
21	MAY W10337521
22	Switch, Temperature
23	MAY 3405156
24	SCREW
